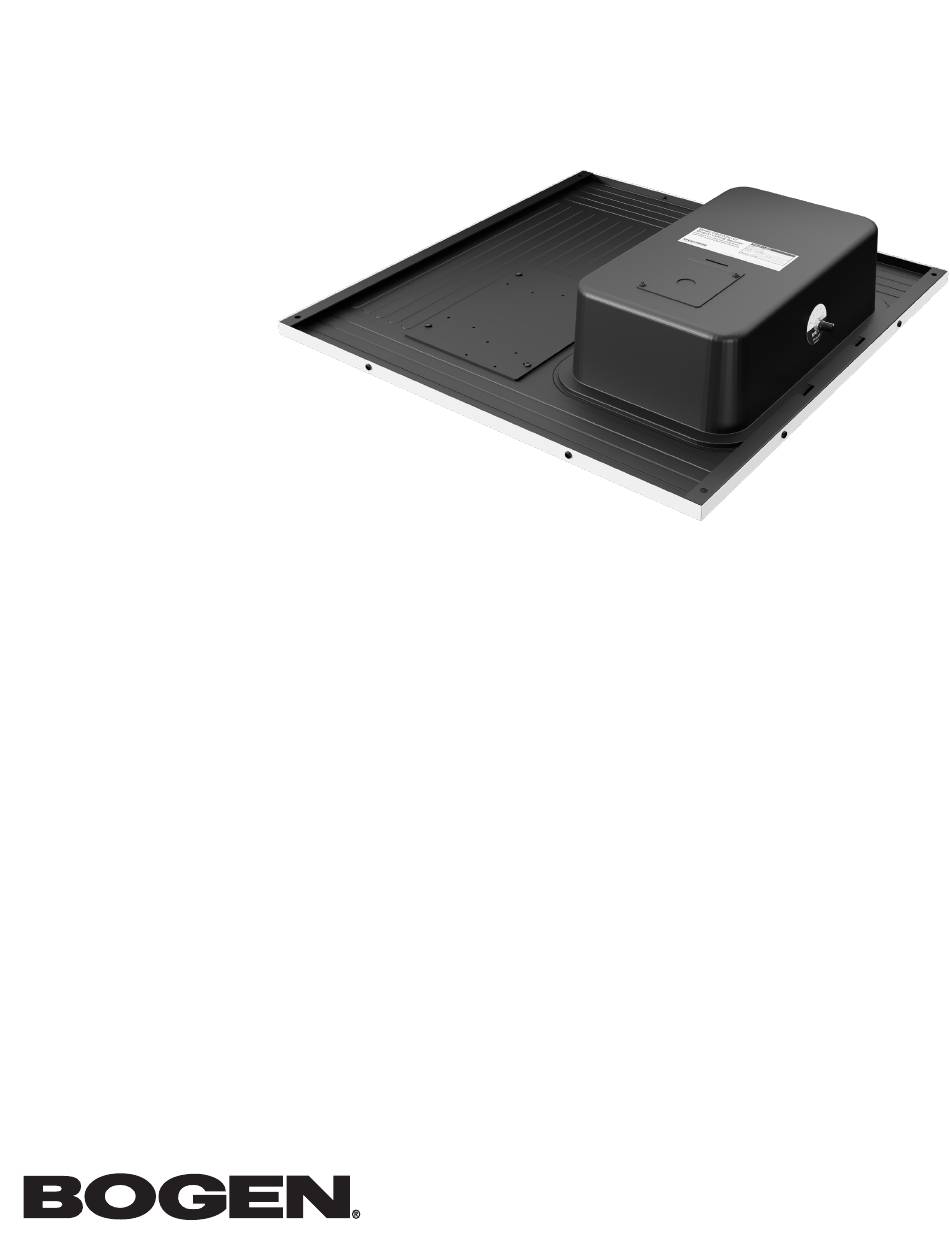

- Page 1 CSD2X2U-V2 70V, 25V, and 8Ω Speaker System Installation and Use Guide Specifications are subject to change. © Copyright 2023, Bogen Communications LLC 740-00196B 230630...

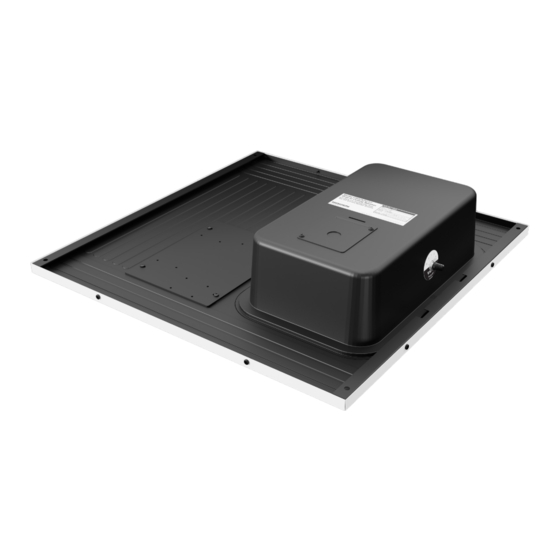

- Page 2 The CSD2X2U-V2 ceiling speaker has an 8″ driver and a tap selector that allows it to be run as a ¼W to 4W speaker Ω at 25V or 70V. It also includes a wire that bypasses the transformer and allows the speaker to operate at 8 .
- Page 3 Run, at minimum, a Cat 5 cable from the appropriate-sized PoE switch to the VoIP module. Wire the output of the Ω Ω VoIP module to the CSD speaker in the 8 configuration (see Figure 4). This has a 10W maximum at 8 operation. To CSD2X2U-V2 Speaker wired at 8Ω NQ-GA10P Vo1P Intercom Module RELAY AUDIO 5V CH CL NC COM NO G ®...
- Page 4 GA10P/V (see Figure 7) or NQ-GA20P2 (see Figure 8) modules. These illustrations also show 25V wiring running from NQ-GAXMR1 to a CSD2X2U-V2 speaker and additional speakers if needed. 70V is also an option, but both out- NQ-GA40P3 Shown, can also be NQ-GA10PV, NQ-GA20P2, etc.
- Page 5 ® Figure 8: NQ-GA20P2 PoE+ Amplifier Module connected to NQ-GAXMR1 Audio Transformer and speaker. Ceiling Mounting Instructions NQ-CSD2X2U-V2 (2 × 2 ft. tile space) 1. Drop speaker into space (support rail not necessary). NQ-CSD2X2U-V2 (2 × 4 ft. tile space) 1.
- Page 6 Two-Year Warranty The CSD2X2U-V2 is warranted to be free from defects in material or workmanship for two (2) years from the date of sale to the original purchaser. This warranty does not extend to any of our products that have been subjected to abuse, misuse, improper storage, neglect, accident, improper installation or have been modified or repaired or altered in any manner whatsoever, or where the serial number or date code has been removed or defaced.
