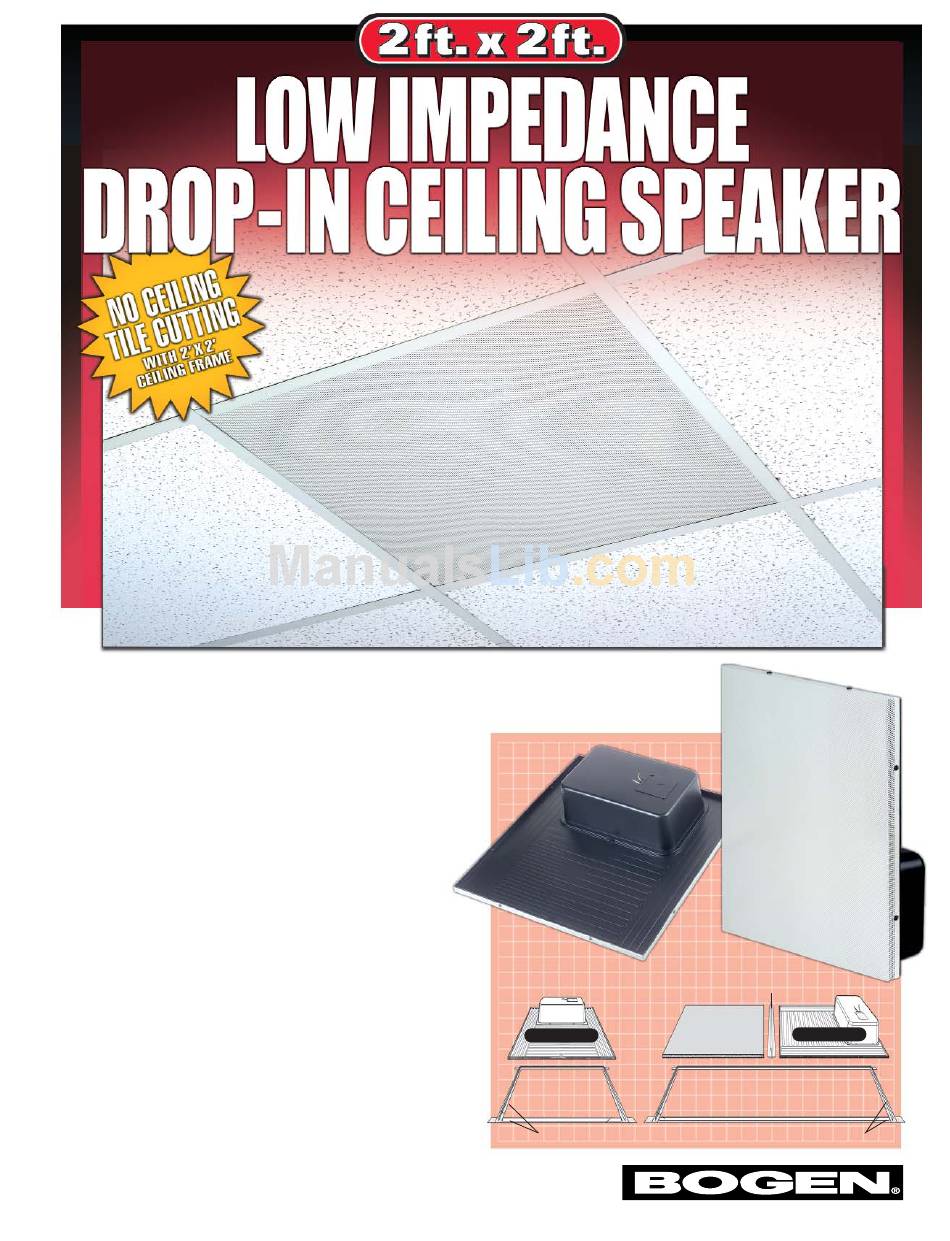

Low-Impedance Drop-In
Ceiling Speaker with Back Can
CSD2X2L
Bogen's CSD2X2L(U) Drop-In Ceiling Speakers are 8-ohm,
full-range speakers that allow for fast and easy installa-
tion, which saves installation time, effort, and cost.
The CSD2X2L(U) is a 2' x 2' speaker that fits perfectly
into place in 2' x 2' ceiling grids – without needing to
cut ceiling tiles or requiring the use of tile support rails.
The CSD2X2L(U) can also be easily installed in 2' x 4'
ceiling grids – just make one cut to the ceiling tile, posi-
tion the support rail (included), and drop the speaker
into place.
•
Finely perforated grille over the entire front of speaker
•
Fully enclosed, industrial grade steel construction
•
Enclosed Back Can
•
8'' main cone with secondary high-frequency cone
•
Low-Impedance: 8-ohm speaker, 15W max. power
•
Seismic attachment points
•
Complies with Requirements of UL-2043
•
Support Rail Crossbar (included)
•
Available in Off-white and Bright White ("U" versions)
grille finish
(
)
U
CROSSBAR INCLUDED
(2 ft. X 4 ft. CEILING GRID ONLY)
CEILING TILE
(
)
CSD2X2L
U
(CUT IN HALF, OR NO MORE
THAN 23-3/4")
2 ft. X 2 ft.
TILE SPACE
CEILING GRID
SUPPORT RAIL
(
)
CSD2X2L
U
2 ft. X 4 ft.
TILE SPACE
CEILING GRID
