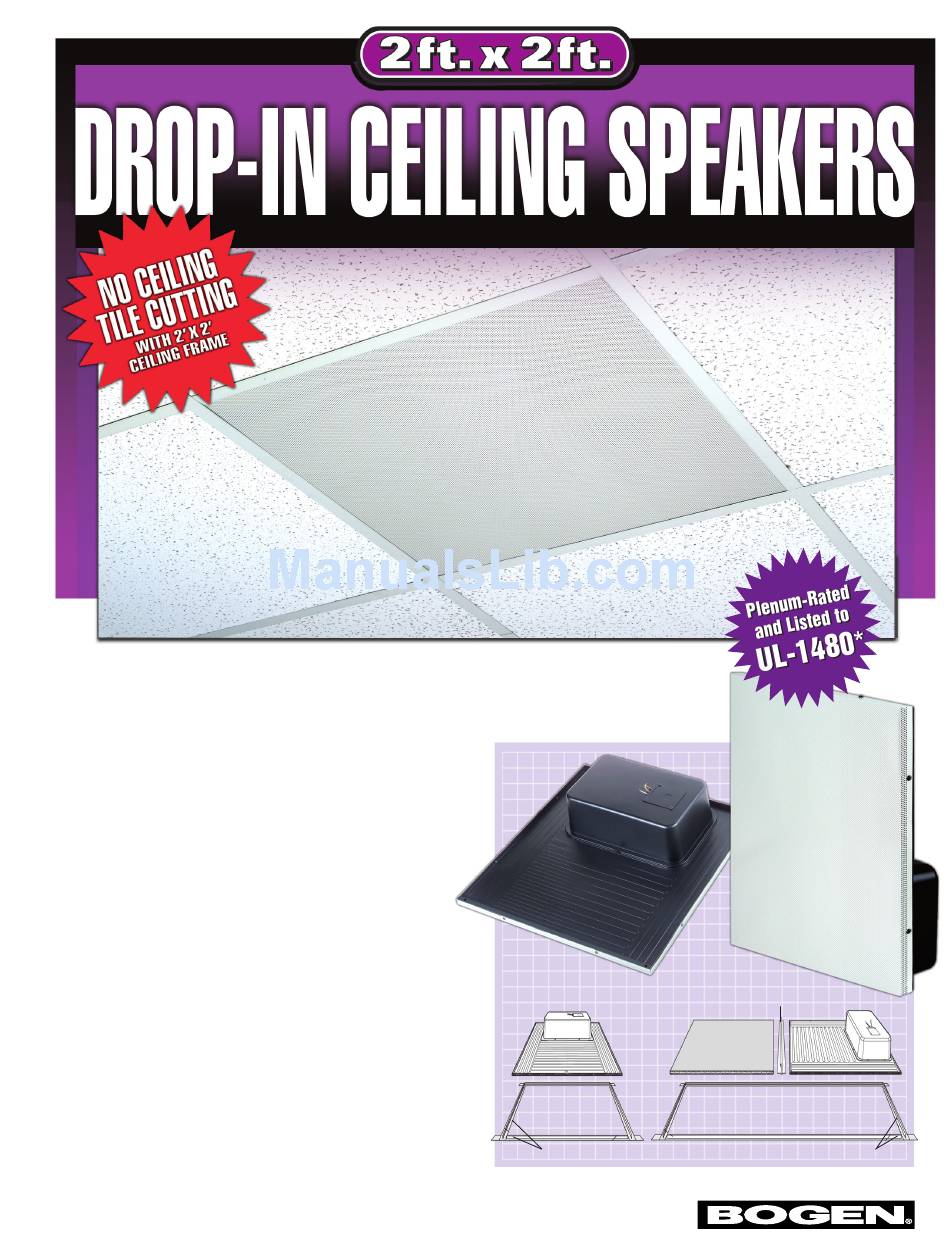

Drop-In Ceiling Speaker with Back Can
CSD2X2
Bogen's CSD2X2 Drop-In Ceiling Speaker is a full-range
speaker that allows for fast and easy installation, which
saves installation time, effort, and cost.
The CSD2X2 is a 2' x 2' speaker that fits perfectly into
place in 2' x 2' ceiling grids – without needing to cut
ceiling tiles or requiring the use of tile support rails. The
CSD2X2 can also be easily installed in 2' x 4' ceiling
grids – just make one cut to the ceiling tile, position the
support rail (included), and drop the speaker into place.
Finely perforated grille over the entire front of speaker
Fully enclosed, industrial grade steel construction

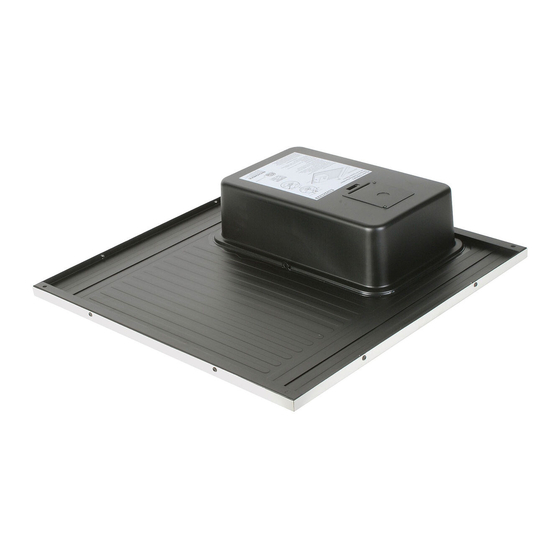

Enclosed Back Can
8'' main cone with secondary high-frequency cone
70V/25V, 4-watt transformer (4, 2, 1, 0.5, 0.25 watt) taps;
selected by rotary switch
Seismic attachment points
Available in off-white and bright white ("U" versions)
grille finish
''VR'' versions have a Recessed Volume Control
(front-mounted)
Listed to UL Standard 1480 for U.S. use
Support Rail Crossbar (included)
& Variations
CSD2X2
2 ft. X 2 ft.
TILE SPACE
CEILING GRID
*Listed to UL Standard 1480 for U.S. use
SUPPORT RAIL
CROSSBAR INCLUDED
(2 ft. X 4 ft. CEILING GRID ONLY)
CEILING TILE
CSD2X2
(CUT IN HALF, OR NO MORE
THAN 23-3/4")
2 ft. X 4 ft.
TILE SPACE
CEILING GRID

Advertisement

loading
Need help?

Need help?

Do you have a question about the CSD2X2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bogen CSD2X2

  • Page 1 The CSD2X2 is a 2' x 2' speaker that fits perfectly into place in 2' x 2' ceiling grids – without needing to cut ceiling tiles or requiring the use of tile support rails. The CSD2X2 can also be easily installed in 2' x 4' ceiling grids –...
  • Page 2 70V and 25V Compatible. Plenum-Rated and Listed to UL Standard 1480 for U.S. use. Architect and Engineer Specifications The speaker shall be a Bogen Model CSD2X2 or CSD2X2VR Drop-In Ceiling Speaker, which shall be fully enclosed and constructed of Model industrial grade steel.
