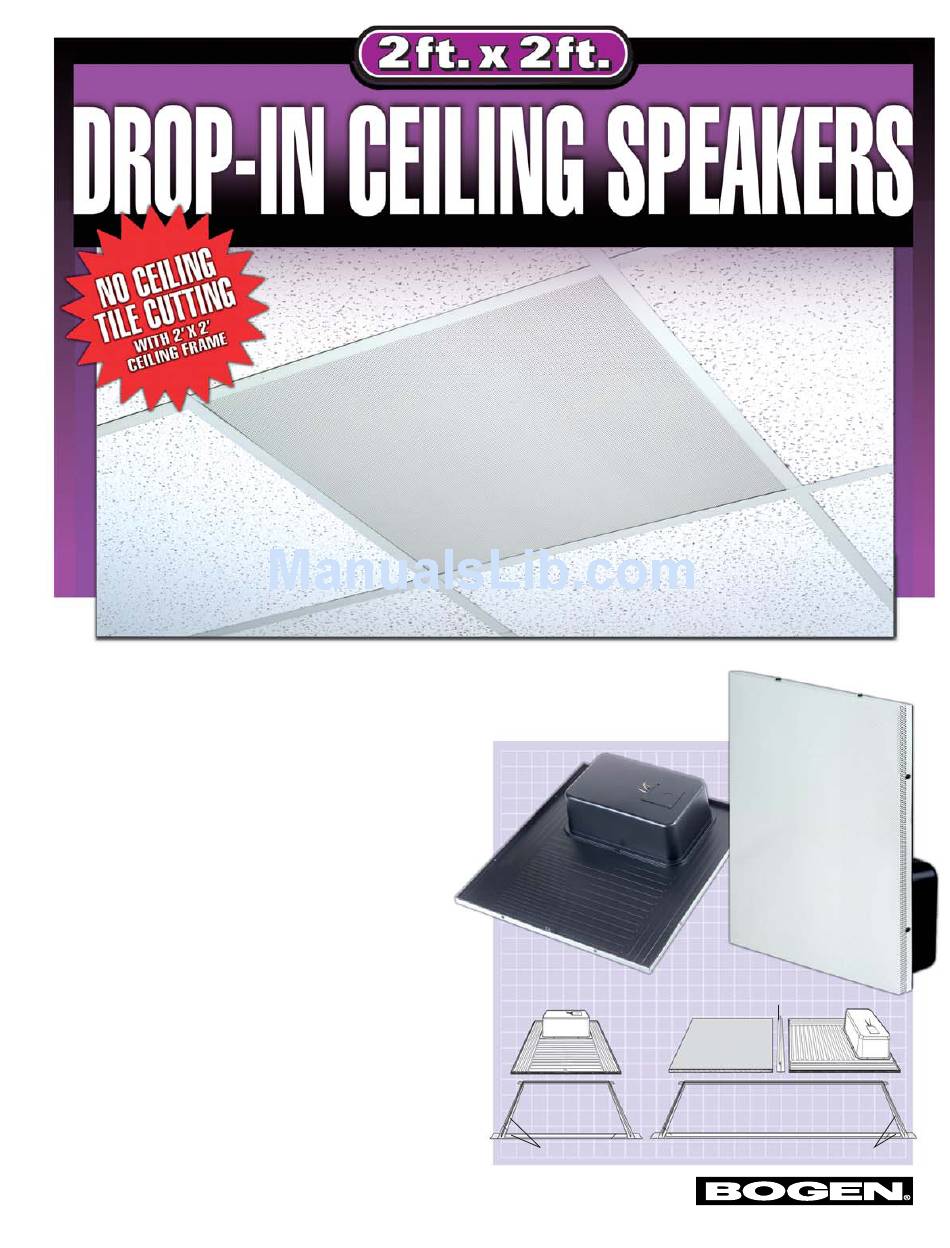

Bogen CSD2X2 Specifications

Drop-In Ceiling Speaker with Back Can
CSD2X2
Bogen's CSD2X2 Drop-In Ceiling Speaker is a full-range
speaker that allows for fast and easy installation, which
saves installation time, effort, and cost.
The CSD2X2 is a 2' x 2' speaker that fits perfectly into
place in 2' x 2' ceiling grids – without needing to cut
ceiling tiles or requiring the use of tile support rails. The
CSD2X2 can also be easily installed in 2' x 4' ceiling
grids – just make one cut to the ceiling tile, position the
support rail (included), and drop the speaker into place.
• Finely perforated grille over the entire front of speaker
• Fully enclosed, industrial grade steel construction

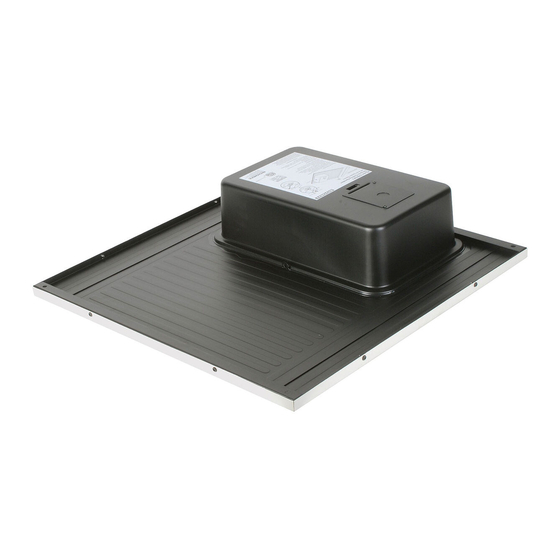

• Enclosed Back Can
• 8'' main cone with secondary high-frequency cone
• 70V/25V, 4-watt transformer (4, 2, 1, 0.5, 0.25 watt) taps;
selected by rotary switch
• Seismic attachment point
• Available in off-white and bright white ("U" versions)
grille finish
• ''VR'' versions have a Recessed Volume Control
(front-mounted)
• Complies with Requirements of UL-2043
• Support Rail Crossbar (included)
& Variations
CROSSBAR INCLUDED
(2 ft. X 4 ft. CEILING GRID ONLY)
CEILING TILE
CSD2X2
(CUT IN HALF, OR NO MORE
THAN 23-3/4")
2 ft. X 2 ft.
TILE SPACE
CEILING GRID
SUPPORT RAIL
CSD2X2
2 ft. X 4 ft.
TILE SPACE
CEILING GRID
