Drop-In Ceiling Speaker
CSD1X2

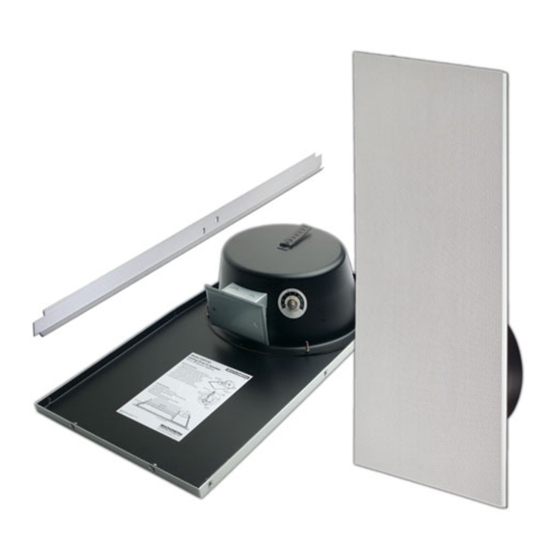

Bogen's CSD1X2 Drop-In Ceiling Speakers are 1' X 2'
speakers that allow for fast and easy installation.
Just make one simple cut to the ceiling tile, lay the
support rail crossbar (included) across the ceiling
grid, and drop the speaker into place.
•
Finely perforated grille over the entire front of speaker
•
Fully enclosed, industrial grade steel construction
•
Enclosed Back Can
•
8'' main cone with secondary high-frequency cone
•
70V/25V, 4-watt transformer (4, 2, 1, 0.5, 0.25 watt) taps;
selected by rotary switch
•
Seismic attachment point
•
Available in off-white and bright white ("U" versions)
grille finish
•
''VR'' versions have a Recessed Volume Control
(front-mounted)
•
Complies with Requirements of UL-2043
•
Support Rail Crossbar (included)
& Variations with Back Can
CSD1X2
SUPPORT RAIL CROSSBAR (included)
CEILING TILE
CEILING GRID
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bogen CSD1X2
Summary of Contents for Bogen CSD1X2

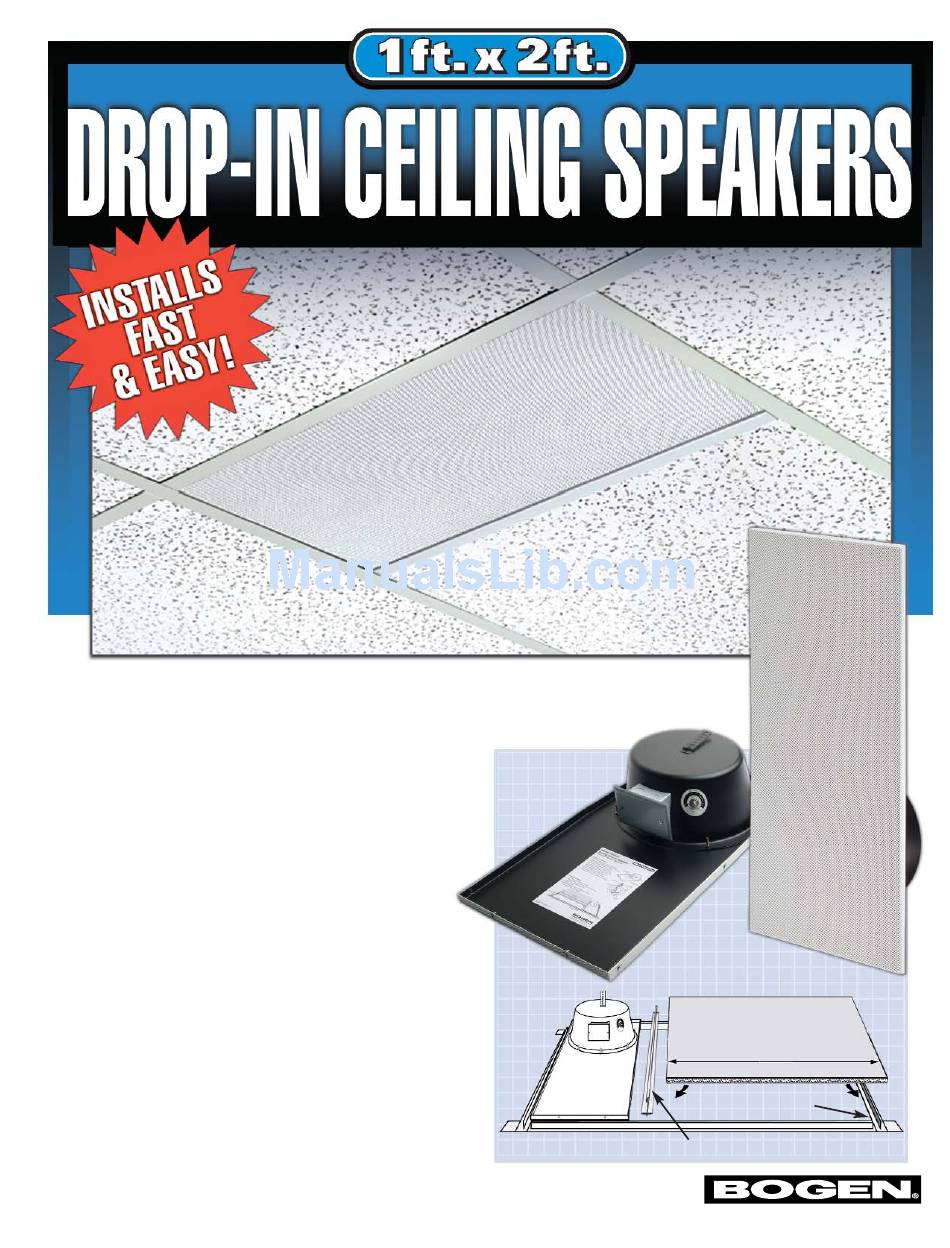

- Page 1 Drop-In Ceiling Speaker CSD1X2 & Variations with Back Can Bogen’s CSD1X2 Drop-In Ceiling Speakers are 1' X 2' speakers that allow for fast and easy installation. Just make one simple cut to the ceiling tile, lay the support rail crossbar (included) across the ceiling grid, and drop the speaker into place.
- Page 2 Architect and Engineer Specifications The speaker shall be a Bogen Model CSD1X2. It shall be a 1 ft. x 2 ft. steel assembly with non-reflective, finished metal grille; damped high- compliance factory-mounted 8" loudspeaker with a treated paper cone; and 70V/25V transformer. The 8" main speaker cone shall have a 10 ounce magnet.
