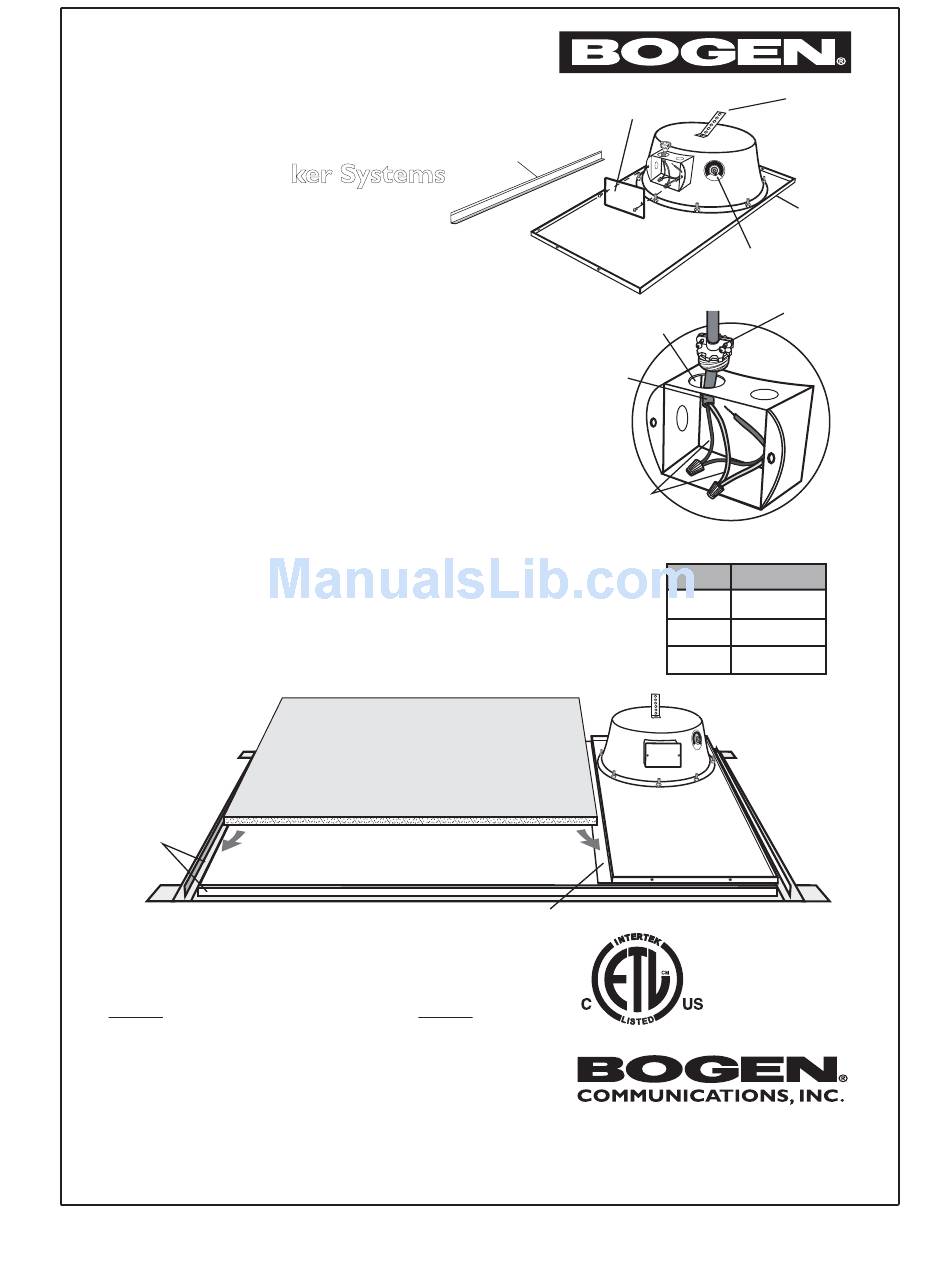

Model CSD1X2
Drop-In Ceiling Speaker
With Volume Control
70V & 25V Speaker Systems
70V & 25V Spea
Electrical Connection
1. Remove electrical box cover, then install
cable clamp (if desired) and feed interconnecting
cable into the electrical box.
2. Select speaker leads for desired system type:
70V - Red, 25V - Yellow, and COM - Black
for both. Interconnect the speakers in the
system, making sure that all leads of the same
color are connected together. Avoid swapping colors.
3. Cut bare wire tip off of unused speaker lead. Secure
all mechanical connections and re-install
electrical box cover.
4. Set tap selector switch to proper tap setting.
5. Speaker volume can be attenuated via front panel
recessed volume control.
Ceiling Installation
1. For 2 ft. x 4 ft. tile space, cut ceiling tile to 35-1/ 2 " long.
For 2 ft. x 2 ft. tile space, cut to 11- 1/2" long.
2. Place speaker in ceiling opening.
3. Slide Tile Support Rail under speaker edge beside opening.
4. Drop in the tile.
CEILING GRID
2-YEAR WARRANTY
The CSD1X2VR is warranted to be free from defects in material
or workmanship for two (2) years from the date of sale to the
original purchaser. This warranty does not extend to any of our
products that have been subjected to abuse, misuse, improper
storage, neglect, accident, improper installation or have been
modified or repaired or altered in any manner whatsoever,
or where the serial number or date code has been removed
or defaced.
VR
SUPPORT RAIL
CROSSBAR
CEILING TILE
SUPPORT RAIL CROSSBAR
ELECTRICAL
BOX COVER
TAP SELECTOR
SWITCH
KNOCKOUT
FEED
CABLE
SPEAKER
LEADS
Lead
Color
70V
Red
25V
Yellow
COM
Black
Control # 3092039
50 Spring Street, Ramsey, NJ 07446, U.S.A
Tel. 201-934-8500, Fax: 201-934-9832, www.bogen.com
Specifications subject to change without notice
©2007 Bogen Communications, Inc.
54-2161-01B
Made In China 0704
SEISMIC
TETHER POINT
VOLUME CONTROL
(on front panel)
CABLE
CLAMP
(not included)
