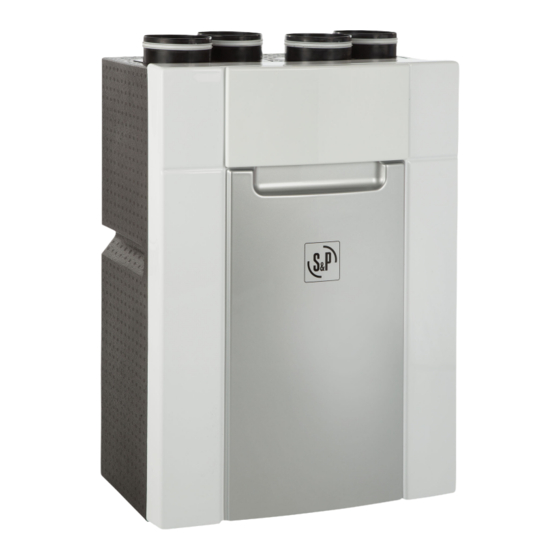

- Page 1 DOMEO 210 RD DOMEO 210 RD SC...
-
Page 3: Table Of Contents
The following items are included : 1. 1 x DOMEO 210 RD 2. 1 x remote control 3. 1 x console programming (Excepting Domeo 210 RD SC model) 4. 1 x wall bracket 5. 2 x drain ducts 6. 1 x drain connection for air-conditioned houses 7. -
Page 4: General Information
1. GENERAL INFORMATION 1.1 - Introduction This manual is intended for the use of the central balanced-flow high efficiency DOMEO and its peripherals (ductwork, vents, controllers). It is designed to provide clear and safe guidance for the design, installation and use of the product. -
Page 5: Technical Information
2. TECHNICAL INFORMATION 2.1.- General information The DOMEO ensures optimum ventilation of a house with a maximum energy recovery. It draws air from the rooms (bathroom(s), toilet, kitchen and wash room(s)) and supplies fresh air through the main rooms (living room, bedroom (s), office, etc. ) The fresh and extract airflows are separated and filtered. - Page 6 Fresh air inlet: This spigot is to connect the supply duct of fresh air from outside. Install the fresh air intake (wall or roof) a sufficient distance from any area of high pollution (trees, exhaust fumes, road, etc). This duct must be sealed and insulated to prevent condensation on the outside and inside.
-
Page 7: Installation
2.3 - Dimensional characteristics 2.3.a - Central: Weight: 15Kg: 2.3.b – Remote Control 3 - INSTALLATION Depending on the ductwork configuration, you have the possibility to modify the connecting side, Type A (Connection of the condensation drain on the right) or Type B (Connection of the condensation drain on the left). - Page 8 Insulated Uninsulated Insulated duct duct duct Ducts must be insulated and correctly installed. Wall bracket It is advisable to install the DOMEO in the heated area of the house. If not, it is mandatory to isolate the condensation drain. In areas where temperatures are regularly negative or can drop below -10ºC, it is advisable to install a preheating battery.
- Page 9 SAMPLE ”REPARTITION” ASSEMBLY kitchen BDO or BOAP CPR or CT PLENUM UNI EX 5P/125 Toilets BDO or TPM 80 RD 80 Air intake PAQS125 PLENUM UNI 6P/125 RD 80* Air intake PAF 125 BDO or TPM 80 Living room & (*) Bedrooms If using insulated flexible ducting it is...
- Page 10 SAMPLE “DISTRIBUTION” ASSEMBLY Kitchen CPR or CT BDO or BOAP Bathrooms BDO or TPM 80 + RD80 Air intake PAQS125 BDO 80 Air intake PAF 125 RD80* Living Room & (*) Bedrooms If using insulated flexible ducting it is imperative to fully stretch it.
-
Page 11: Characteristics And Electrical Connections
4 - CHARACTERISTICS AND ELECTRICAL CONNECTIONS Connect the supplied cable to the mains using a sealed connection box. Power: Single phase 230V-50Hz Max. current: 0,8 A Electrical protection: 2 A (curve D) or 3 A Maximum Power: 120 W Maximum ambient temperature: 50ºC Maximum flow temperature: 45ºC... - Page 13 5 – MANAGING OF THE DOMEO 5.1 – During the installation: The programming console allows adjust the commissioning settings and see the different parameters of the installation. For Domeo 210 RD SC model the console must be purchased as an accessory. Display Up key Validation...
- Page 14 5.1.a - Adjust setting: 1. To connect the programming console, unscrew the both screws located on the lower part of the DOMEO, remove the filters cover and then the front cover. 2. Connect the programming console with RJ45 plug located on the right of the electronic board. 3.
- Page 15 Volt free contact: The electronic board is equipped with a volt free contact that allows increase to the boost airflow controlled by an external sensor (switch, CO2 sensor, PIR sensor, humidity sensor, …). You can change the position of the contact: NO = Normally Open NC = Normally Closed Enter with the key...
- Page 16 Low airflow: Setting of the low airflow/low speed. Enter with the key choose the airflow value with the keys , then confirm with the Boost/High airflow: Setting of the high/boost ½ hour temporized airflow. Enter with the key choose the airflow value with the keys , then confirm with the Free cooling airflow: Having avoided the heat exchanger, the 100% by-pass system of the IDEO allows the...
- Page 17 Tint automatic bypass: You can modify the internal bypass activation temperature. Factory setting: +24ºC Setting range: +21 – +30ºC Enter with the key , modify the temperature value with the keys , then confirm with the Manual bypass delay: You can modify the bypass delay when is manually activated. Factory setting: 8H Setting range : 1 –...
- Page 18 4. View of the operating states. View of the operating states: Allows viewing the operating DOMEO states. Enter with the keys To move, use the keys Coverage radio signal: Allows viewing the radio range of all remote controls appeared with DOMEO. Push on one key of the remote controls.
- Page 19 Extract temperature sensor: Allows viewing the temperature on the extract ductwork upstream of the core. Temperature range: -30ºC – +50ºC Discharge temperature sensor: Allows viewing the temperature on the discharge ductwork downstream of the core . Temperature range: -30ºC – +50ºC Fresh Air temperature sensor: Allows viewing the temperature on the fresh air ductwork downstream of the core .
- Page 20 5.2 - During use The remote control allows the user to: • Activate the boost for ½ hour. • Return manually to the minimum airflow • Put DOMEO in holidays mode • Manually switch on the by-pass mode • Reset filters alarm Low Airflow By-pass Holidays mode...
- Page 21 Filter timer settings: It is possible to set the timing to 6, 9, 12 or 15 months (9 months factory setting). Fouling is linked to the external environment (pollution, pollen,..) and the use of housing (dust, cooking fats..). It is advisable to modify this parameter after the second alarm.
-
Page 22: Maintenance
7 – MAINTENANCE Looking for a durable ventilation system, it is mandatory to carry out the maintenance correctly. • Filter change according with the filter alarm settings Put back Remove filter cover Extraction filter cover Fresh Air Filter G4 Filter F5 Connection Type A Fresh Air Extraction... - Page 24 S&P SISTEMAS DE VENTILACIÓN, S.L.U. C. Llevant, 4 Polígono Industrial Llevant 08150 Parets del Vallès Barcelona - España Tel. +34 93 571 93 00 www.solerpalau.com Ref. 9023058700-03...
