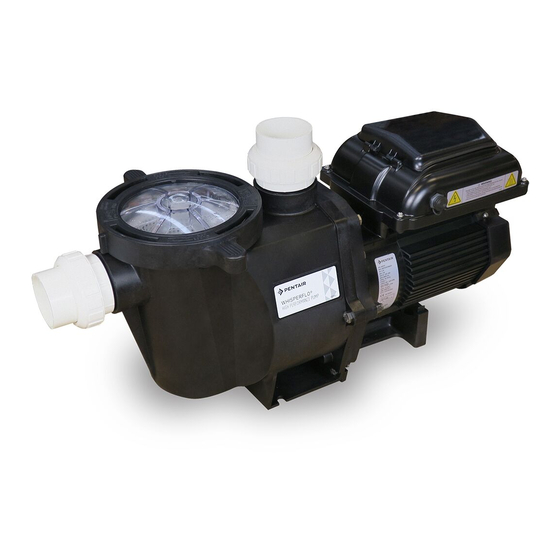

WHISPERFLO VS 1500
VARIABLE SPEED POOL PUMP
OWNER'S MANUAL
Should the installer or owner be unfamiliar with the correct installation or operation of this type
of equipment you should contact the distributor/manufacturer for the correct advice before
proceeding with the installation or operation of this product. The pump operator or owner must
be provided with this owner's manual.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pentair WHISPERFLO VS 1500
Summary of Contents for Pentair WHISPERFLO VS 1500
- Page 1 WHISPERFLO VS 1500 VARIABLE SPEED POOL PUMP OWNER’S MANUAL Should the installer or owner be unfamiliar with the correct installation or operation of this type of equipment you should contact the distributor/manufacturer for the correct advice before proceeding with the installation or operation of this product. The pump operator or owner must...
-
Page 2: Table Of Contents
Setting Clock Using Default Schedule Custom Schedules Operation While Pump is Running Quick Clean Keypad Lockout Factory Reset External Controls Troubleshooting & Maintenance Routine Maintenance Troubleshooting Spare Parts WhisperFlo VS 1500 Owner’ s Manual WhisperFlo VS 1500 Owner’ s Manual... -
Page 3: Features And Benefits
WhisperFlo VS 1500 has the perfect combination of efficiency and performance. The Med 2200RPM WhisperFlo VS 1500 delivers energy savings and the power when you need it. You will also High 3000RPM have the peace of mind that you are doing your bit for the environment and reducing your Override: 3150RPM carbon foot print. -
Page 4: Hydraulic Performance
Children should be supervised to ensure that they do not play with the pump. The WhisperFlo VS 1500 is electrically connected. Ensure that it is isolated from electrical supply during installation and any subsequent service work. -
Page 5: Piping
The bonding lug should be Bonding used to bond the motor frame to the equipment pad. WhisperFlo VS 1500 Owner’ s Manual WhisperFlo VS 1500 Owner’ s Manual Figure 1. -
Page 6: Operation
8. “+” and “-” Arrows - Used to make on screen adjustments to the pump settings. The “+” arrow j. The WhisperFlo VS 1500 will start slowly but ramp up to 3150RPM for the first 3 minutes to assist increases the value of a given setting, while “-” decreases the value of a given setting. Pressing priming. -
Page 7: Setting Clock
Note: When power is returned to the pump after a prolonged outage (24+ hours) the clock will automatically set itself to the Speed 1 start time, blink and advance. The pump will also run the associated schedule from that start time. WhisperFlo VS 1500 Owner’ s Manual WhisperFlo VS 1500 Owner’ s Manual... -
Page 8: Custom Schedules
15 minute increments. To customize the run schedule for your WhisperFlo VS 1500 Variable Speed Pump, the pump must be 8. Pressing the “1” button will continue to cycle through these parameters, but the changes are stopped. -
Page 9: Operation While Pump Is Running
Quick Clean button again within 10 seconds of pressing the “+” or “-” arrows will allow you to adjust Priming will automatically run when the WhisperFlo VS 1500 Variable Speed Pump is started the duration of Quick Clean via the “+” and “-” arrows. These changes will be saved immediately and from a stopped state, except when running in Quick Clean mode. -
Page 10: Keypad Lockout
Quick Clean duration is set to 0 HRS. The WhisperFlo VS 1500 Variable Speed Pump is equipped with a Quick Clean feature, which can be Keypad Lockout engaged to temporarily run at higher or lower speeds ranging between 300 to 3150 RPM. Once the Quick Clean duration has elapsed, the pump will automatically return to the programmed schedule. -
Page 11: Factory Reset
5. Be sure to reprogram the schedule and priming speed after the factory reset. The pump must The WhisperFlo VS 1500 provides a low voltage output signal that can be used to trigger its be turned back on with the Start/Stop button before it will run again. The pump will run the own Digital Inputs. - Page 12 Input. If more than one Digital Input is active at one time then they will be resolved by priority. 9 : 00 Figure 12: Activating External Control Only WhisperFlo VS 1500 Owner’ s Manual WhisperFlo VS 1500 Owner’ s Manual...
-
Page 13: Troubleshooting
Troubleshooting Guide • It is essential for the longevity of the pump that regular service and maintenance be carried out. The WhisperFlo VS 1500 incorporates high velocity moving parts and is pumping water containing SYMPTOM CAUSE REMEDY harsh pool chemicals. - Page 14 No power at outlet. • Use another electrical appliance that is WhisperFlo VS 1500 Variable Speed Pump will stop running. Disconnect power to the pump known to work to check power outlet. and wait until the keypad LEDs have all turned off. At this point, reconnect power to the Blown fuse / Circuit •...
-
Page 15: Spare Parts
800047 VS Drive Kit Supply Cord If the supply cord is damaged, it must be replaced by the manufacturer (Pentair), its service agent or similarly qualified person in order to avoid a hazard. WhisperFlo VS 1500 Owner’ s Manual WhisperFlo VS 1500 Owner’ s Manual... - Page 16 NOTES IMPORTANT Please attach your sales invoice/docket here as proof of purchase should warranty service be required. Please do not return warranty form to Pentair Australia - Retain for your records. PURCHASED FROM: PURCHASE DATE: SERIAL NO: MODEL NO: WhisperFlo VS 1500 Owner’ s Manual...
- Page 17 Information contained here-in remains the property of Pentair Australia Holdings Pty Ltd under Australian copyright law. Content may not be reproduced or transmitted without our prior written permission. All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks/logos are the properties of their respective owners.
