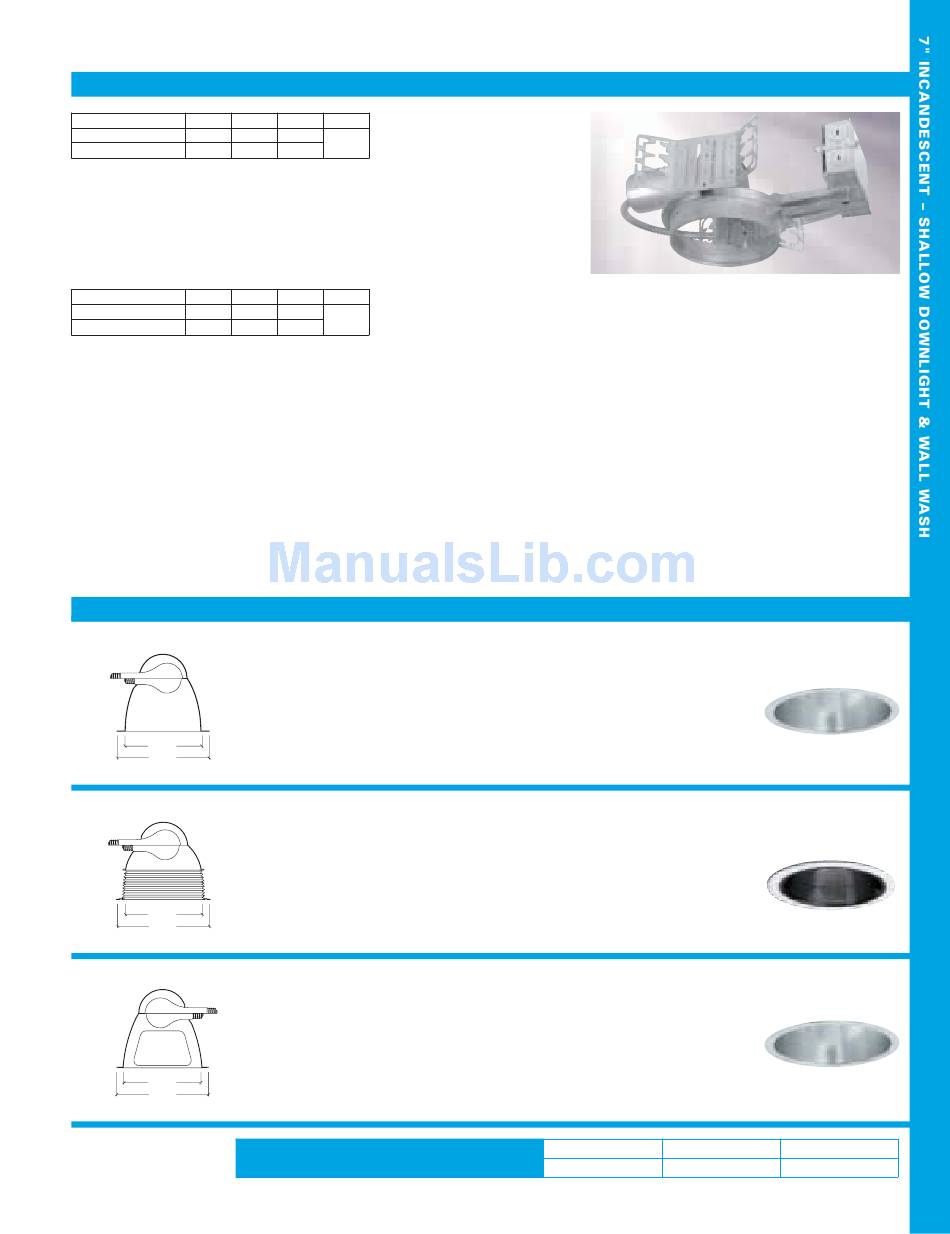

Cooper Lighting Portfolio 861 Specification Sheet

Dimensions Length Width
Standard Housing 13-7/8" 13-5/16"
Chicago Plenum 13-7/8" 13-5/16"
Dimensions Length Width
Standard Housing 13-7/8" 13-5/16"
Chicago Plenum 13-7/8" 13-5/16"
HOUSING
H7801T=Incandescent, Shallow Plenum
H7801TCP=Incandescent, Shallow Chicago Plenum
H7901T=Incandescent, Shallow Plenum
H7901TCP=Incandescent, Shallow Chicago Plenum
H7803T=Incandescent, Shallow Plenum
H7803TCP=Incandescent, Shallow Chicago Plenum
Open Wall Wash Trims only)
TRIM
1841=Self Flanged
1840=Molded Trim Ring,
White
7-3/8"
8-3/4"
TRIM
1841=Self Flanged
1840=Molded Trim Ring,
White
7-3/8"
8-3/4"
TRIM
1861=Single Wall Wash,
Self Flanged
1860=Single Wall Wash,
Molded Trim Ring, White
1871=Double Wall Wash,
Self Flanged
1870=Double Wall Wash,
Molded Trim Ring, White
7-3/8"
8-3/4"
7" Horizontal Downlight
Height Cutout
7-3/8"
8-1/8"
7-3/8"
Height Cutout
7-5/8"
8-1/8"
7-5/8"
(use H7901T & H7901TCP Housings with 1840BA Baffle Trim only)
(use H7803T & H7803TCP Housings with 1860/1861 and 1870/1871
FINISH
LI=Low Iridescent Clear
H=Haze
WMH=Warm Haze
G=Gold
WH=Wheat
B=Black
FINISH
BA=Low Iridescent Clear
Specular Upper Reflector
with Black Baffle
FINISH
LI=Low Iridescent Clear
H=Haze
WMH=Warm Haze
G=Gold
WH=Wheat
B=Black
Ordering Example
Housing, Trim, Accessories and Lamps ordered as separate line items.
A21/23
Shallow plenum open
downlight. Low profile
allows use where vertical
clearance is limited. Also
available with open wall
wash. Kicker reflector
provides smooth
illumination on vertical
surfaces. Socket adjusts
to maintain proper focus
for alternate lamp types.
ACCESSORIES
H277=Step Down Transformer, 300VA Max
HB26=C Channel Bar Hanger, 26" Long, Pair
HB50=C Channel Bar Hanger, 50" Long, Pair
RMB22=Wood Joist Bar Hanger, 22" Long, Pair
HSA7=Slope Adapter for 7" Aperture Housings, Specify Slope
TRM7= Metal Trim Ring, Specify Finish
TRR7=Rimless Trim Ring, White
FK5=Field Installed Fuse Kit, 5 Amp
*Not compatible with Self Flange
OPTIONS
W=Gloss White
WF=White
GP=Graphite
Painted Flange
GPH=Graphite Haze
(Self Flanged
K=Cognac
only)
KH=Cognac Haze
OPTIONS
W=Gloss White
WF=White
GP=Graphite
Painted Flange
GPH=Graphite Haze
(Self Flanged
K=Cognac
only)
KH=Cognac Haze
Housing
H7901T
PORTFOLIO
HOUSING
H7801T
H7901T
H7803T (Wall Wash)
*
*
TRIM
Open Downlight
DERATED
WATTAGE
Wide Beam
LABEL
DR =DeRated,
*
Specify
Wattage
H7801T
Open Downlight
DERATED
WATTAGE
Wide Beam
LABEL
DR =DeRated,
*
Specify
Wattage
H7901T
Open Wall Wash
DERATED
WATTAGE
LABEL
DR =DeRated,
*
Specify
Wattage
H7803T
Trim Accessories
1840BA HB26
COOPER LIGHTING
™
7"
861
