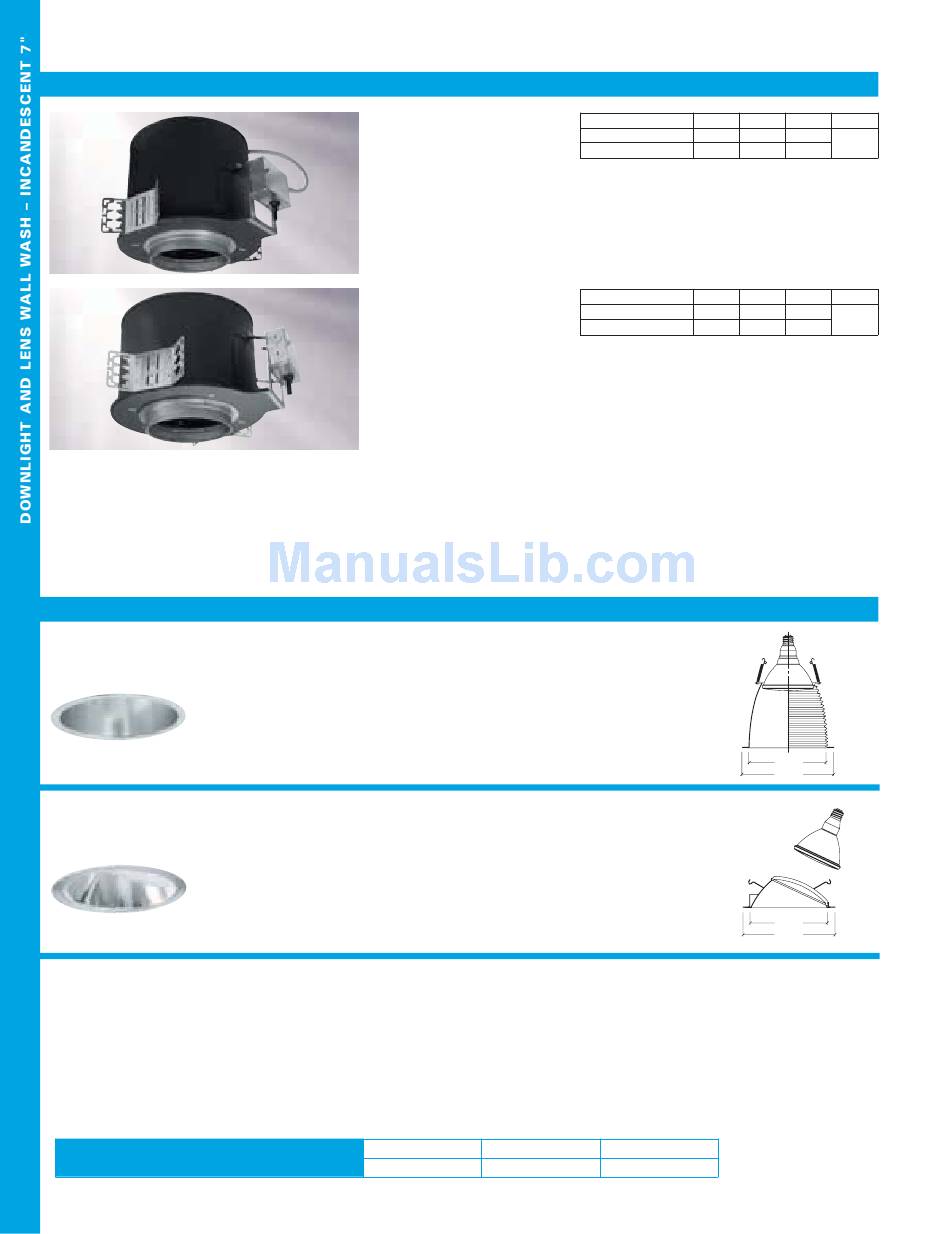

Cooper Lighting Portfolio 860 Specification Sheet

PORTFOLIO
HOUSING
7"
HD7TA
HLW7
HOUSING
HD7TA=Top Access Par Downlight
HD7TACP=Top Access Par Downlight, Chicago Plenum
HLW7=Lens Wall Wash Incandescent
HLW7CP=Lens Wall Wash Incandescent, Chicago Plenum
*For HD7TA and HD7TACP only
TRIM
Open Downlight
PAR38 250W Max
HD7TA
Lens Wall Wash
PAR30L 75W Max
PAR38 250W
HLW7
Ordering Example
Housing, Trim, Accessories and Lamps ordered as separate line items.
860
COOPER LIGHTING
™
7" Downlight
PAR38
Open PAR downlight up to 250W.
Lamp replacement from above or
below the ceiling.
7" Lens Wall Wash
PAR30L/38
Lens wall wash provides smooth
illumination on vertical surfaces.
Optical assembly rotates 365°.
OPTIONS
DR =DeRated Wattage
*
Label, Specify Wattage
TRIM FINISH
7501=Self Flanged LI=Low Iridescent Clear
7500=Molded Trim Ring, H=Haze
White WMH=Warm Haze
G=Gold
WH=Wheat
B=Black
W=Gloss White
GP=Graphite
TRIM FINISH
7481=Self Flanged LI=Low Iridescent Clear
7483=Metal Trim Ring, H=Haze
White WMH=Warm Haze
G=Gold
WH=Wheat
B=Black
Dimensions
Standard Housing
Chicago Plenum
Dimensions
Standard Housing
Chicago Plenum
GPH=Graphite Haze
K=Cognac
KH=Cognac Haze
BB=Black Baffle
(7500 only)
WB=White Baffle
(7500 only)
W=Gloss White
GP=Graphite
GPH=Graphite Haze
K=Cognac
KH=Cognac Haze
Housing Trim
HLW7 7481WH
Length Width
18-7/16" 16-7/16"
18-7/16" 16-7/16"
Length Width
18-1/8 " 18 "
18-1/8 " 18 "
ACCESSORIES
H277=Step Down Transformer, 300VA Max
HB26=C Channel Bar Hanger, 26" Long, Pair
HB50=C Channel Bar Hanger, 50" Long, Pair
RMB22=Wood Joist Bar Hanger, 22" Long, Pair
HSA7=Slope Adapter for 7" Aperture Housings, Specify Slope
TRM7= Metal Trim Ring, Specify Finish
**
TRR7=Rimless Trim Ring, White
**
FK5=Field Installed Fuse Kit, 5 Amp
**Not compatible with Self Flange
OPTIONS
WF=White
Painted Flange
(Self Flanged
only)
7-3/8"
8-3/4"
OPTIONS
WF=White
Painted Flange
(Self Flanged
only)
7-3/8"
8-3/4"
Accessories
HD26
Height Cutout
13-1/2"
8-1/8"
13-1/2"
Height Cutout
11-3/16"
8-1/8"
11-3/16"
*
