Cooper Lighting 213 Specification Sheet

D E S C R I P T I O N

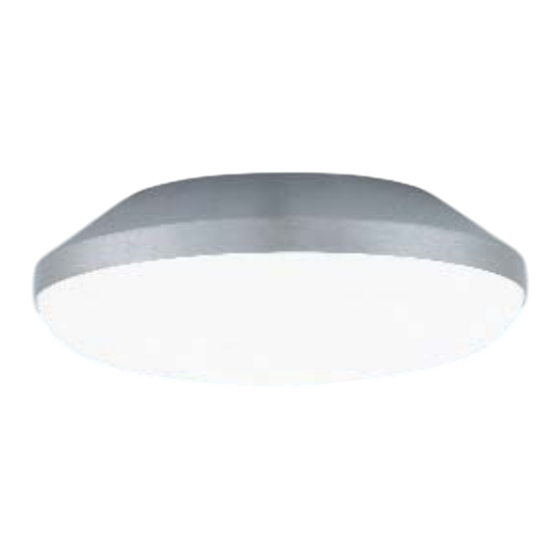

213 Luminous Cloud.
S P E C I F I C AT I O N F E AT U R E S
M a te ri a l
Painted or natural solid
aluminum with a matte white
acrylic diffuser.
F i n i s h
Standard: Natural Aluminum
(NA) [Sustainable Design].
Premium: Matte White (MW) or
Custom Color (CC).
O p t i c s
Refer to
www.shaperlighting.com for
complete photometrics.
B a l l a s t
Integral electronic HPF , multi-volt
120/277V (347V Canada),
thermally protected with end-of-
life circuitry to accommodate the
specified lamp wattage.
O R D E R I N G I N F O R M AT I O N
Sample Number: 213-CFL/1-277V-CC
Series Lamp
CFL/1
213 Cloud =
(26/32/42W-
Surface
Triple)
Luminaire
Notes:
1
Consult the factory for available options.
2
S upplied by others.
3
Interior applications only.
L a m p / S o cke t
One (1) 26W, 32W (GX24q-3) or
42W (GX24q-4) 4-pin CFL lamp.
CFL socket injection molded
plastic. Lamps furnished by
others.
I n s t a l l a t i o n
Supplied with a universal
circular strap for a standard 4"
J-box or plaster ring.
O p t i o n s
CFL Dimming Ballast - Contact
the factory for ballast options
(DM), Remote Emergency Ballast
- Supplied by others (REM).
Damp Location (DL): All Painted
Finishes only. MRI Applications
(INC only) - Contact Factory.
Energy Star Rating- Consult
Factory.
Voltage Finish Options
120V
Standard DL Damp
277V NA Natural =
Aluminum
347V
DM CFL Dimming
Premium
REM Remote
CC Custom Color =
MW Matte White =
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
L a b e l s
U.L. and C.U.L. approved for
indoor and damp location. See
options for damp location
finishing requirements.
M o d i f i c a t i o n s
Shaper's skilled craftspeople
with their depth of experience
offer the designer the flexibility
to modify standard surface
luminaires for project specific
solutions. Contact the factory
regarding scale options, unique
finishes, mounting, additional
materials/colors, or decorative
detailing.
=
Location 3
=
1
Ballast
=
Emergency
Battery 2
shaperlighting.com
Type
Date
213 SERIES
S u r f a c e L u m i n a i r e
S t a r t e r C o l l e c t i o n
L u m i n o u s C l o u d
STARTER
COLLECTION
Shaper's exclusive Starter Collection fixtures
are featured throughout the Shaper product
line. The concept of offering highly styled,
affordable fixtures was introduced over
fourteen years ago and has become one of
our fastest growing lines. The design
premise, basic construction, clean lines
and unadorned shapes are highly desirable
in modern architectural environments.
SUSTAINABLE
DESIGN
Shaper has a long-standing history of
offering environmentally-friendly fixtures.
The copper and bronze alloys used in our
exterior luminaires feature up to 98% re-
cycled content, contribute less undesirable
air emissions compared to painted alumi-
num and are easy to recycle.
MAGNETIC
RESONANCE
IMAGING (MRI)
Lighting fixtures for MRI facilities are
specialized and unique, requiring non-
ferrous construction. Fluorescent fixtures
cannot be used due to the ferrous parts in
ballasts and lampholders. Modified incan-
descent fixtures meet the requirements.
ENERGY
STAR
Shaper now offers a wide variety
of fixtures that can be provided
with an Energy Star Rating.
QUICK SHIP (QS)
Shaper's Quick Ship program
features over thirty-four fixtures
with finish options such as Satin
Chrome, Natural Aluminum and
Satin Brass and a wide variety of
lamp selections. All products ship
in five days from receipt of order.
Refer to the Icon Legend
Link on shaperlighting.com.
