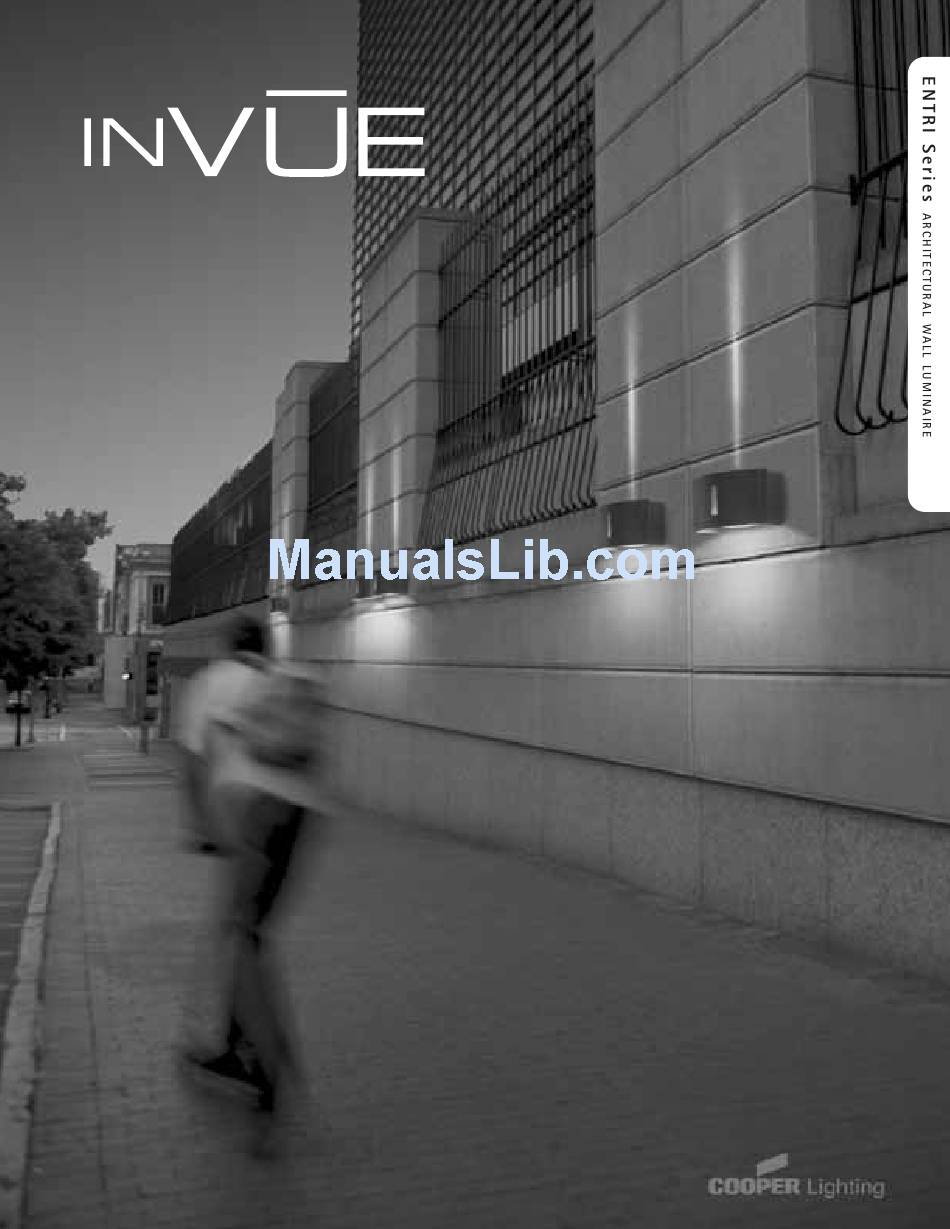

Cooper Lighting INVUE Entri Series Brochure & Specs

Cooper lighting architectural wall luminaire brochure
Hide thumbs

Advertisement

Quick Links

Download this manual
TM

Advertisement

loading
Need help?

Need help?

Do you have a question about the INVUE Entri Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cooper Lighting INVUE Entri Series

Summary of Contents for Cooper Lighting INVUE Entri Series

  • Page 2 E N T R I S e r i e s A R C H I T E C T U R A L W A L L L U M I N A I R E DOWN MOUNT – Walkways –...
  • Page 4 T h e E N T R I S e r i e s s y m m e t r i c a l f o r m c a n b e m o u n t e d e i t h e r U p o r D o w n w i t h n o m o d i f i c a t i o n s t o t h e d o o r o r h o u s i n g .
  • Page 5 F A C E P L A T E S A choice of six (6) architectural faceplate designs allows the matching of fixture style to surrounding environment. E N C E N V E N T M O D U L A R F O R M E N C - L G E N V - L G E N T - L G...
  • Page 6 E m e r g i n g t r e n d s i n l i g h t c o n t r o l a n d e n v i r o n m e n t a l p r e s e r v a t i o n r e q u i r e i n n o v a t i v e d e s i g n s o l u t i o n s .
  • Page 7 L A M P O P T I O N S ENTRI Series optical systems are offered with a variety of high efficiency lamp sources. T 6 M E T A L H A L I D E FEATURES: Produces a whitish-blue light with excellent color rendition—...
  • Page 8 I N V U E ’ s c o m m i t m e n t t o o p t i c a l r e s e a r c h a n d p r e c i s i o n b u i l d q u a l i t y r e s u l t i n u n e q u a l e d l e v e l s o f p e r f o r m a n c e a n d r e p e a t a b i l i t y.
  • Page 9 P R E M I U M M A T E R I A L S A commitment to using premium 95% reflective aluminum sheet on all segmented optical systems allows for efficiency gains of up to 10%. ENTRI's Premium 95% Reflective Surface 100% P R E M I U M M A T E R I A L Premium material reflects a higher intensity...
  • Page 12 O P T I C A L C O N F I G U R A T I O N S T E N ( 1 0 ) U N I Q U E O P T I C S ENTRI Series offers a versatile family of high performance distribution patterns to suit varying design goals.
  • Page 13 3S [Downlight] 3S [Uplight] FT [Downlight] FT [Uplight] FX [Downlight] FX [Uplight] TS [Downlight] TS [Uplight] CFM [Downlight] CFM [Uplight] O P T I C A L C O N F I G U R A T I O N S E N T R I S e r i e s A r c h i t e c t u r a l W a l l L u m i n a i r e...
  • Page 14 E N T R I S e r i e s l u m i n a i r e s p r o v i d e u n s u r p a s s e d l e v e l s o f p r o t e c t i o n a g a i n s t e n t r y o f a i r b o r n e c o n t a m i n a n t s .
  • Page 15 E G R E S S E M E R G E N C Y L I G H T I N G ENTRI Series offers (2) unique solutions to provide uninterrupted illumination to the Path of Egress under emergency conditions.

  • Page 16: Product Specifications

    H O U S I N G One piece die-cast aluminum construction for precise tolerance control and repeatability in manufacturing. Accommodates either up or down mounting configurations with no modifications. Downlight and uplight lens’ are impact resistant 5/32" thick tempered clear or frosted flat glass, sealed to the housing with high strength VHB adhesive tape and a continuous silicone bead gasket.
  • Page 17 D I M E N S I O N S [ E N C | E N V | E N T ] 7 3/4" [196 mm] 15 25/32" [400 mm] 8 1/8" [206 mm] E L E C T R I C A L C O M P O N E N T S Ballast and related electrical componentry are heat sunk to the housing for cooler operation and prolonged life.
  • Page 20 M O U N T I N G O P T I O N S S P E C I F I C A T I O N S - Specifications + Dimensions T H R U - W A Y B O X Die-cast aluminum thru-way box provides means for surface mount conduit runs through 3/4"...
  • Page 21 O P T I O N S + A C C E S S O R I E S S P E C I F I C A T I O N S - Specifications + Dimensions L U M I N O U S G L A S S I N S E R T [ L G ] Luminous glass insert is .16"...

  • Page 22: Installation

    I N S T A L L A T I O N - Mounting - Fixture M O U N T I N G Zinc plated steel mounting plate attaches directly to 4" standard J-Box or direct to wall surface. F I X T U R E Fixture slides over top of mounting plate.

  • Page 23: Ordering Information

    A P P L I C A T I O N S D E P A R T M E N T Let the application experts at Cooper Lighting design your next lighting layout. Aided by the latest computer simulation software and a comprehensive lighting background, our Application Engineers can design, analyze, and provide statistical layouts for any lighting application.
  • Page 24 Chomedey, Laval P.Q. Cooper Lighting All rights reserved Printed in USA w w w. c o o p e r l i g h t i n g . c o m The Cooper Lighting Family Halo Portfolio Metalux Neo-Ray...

This manual is also suitable for:

Invue enc seriesInvue env seriesInvue ent series
