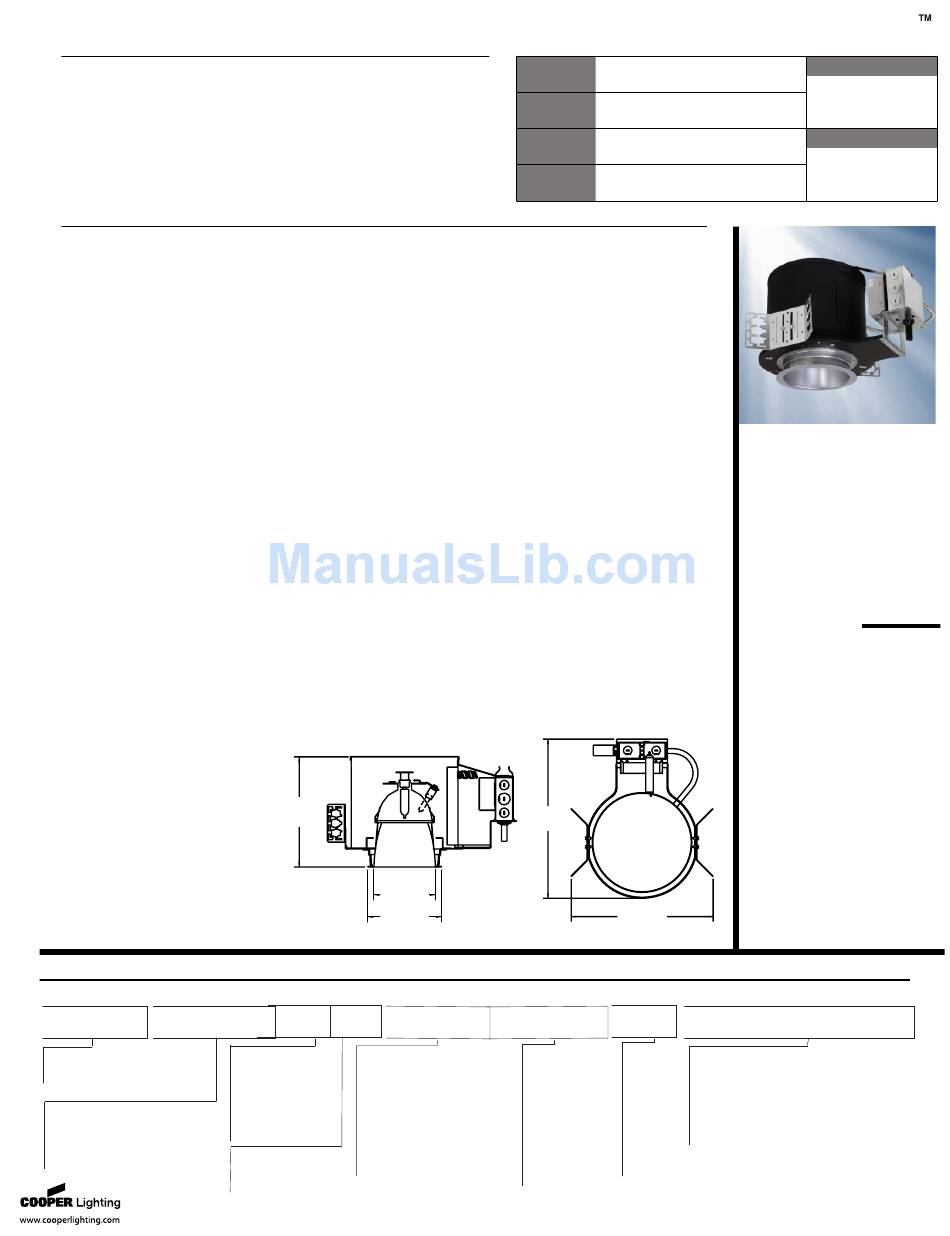

DESCRIPTION
Recessed lens downlight with 6 inch aperture with vertical T4/T6 G12
ceramic metal halide lamp. Available in narrow, medium and wide
distributions. Fixture is suitable for commercial construction. Insulation
must be kept 3" from top and sides of housing. Two stage reflector system
produces smooth distribution with excellent light control and low aperture
brightness.
SPECIFICATION FEATURES
Mechanical Housing
Steel housing encloses optical
system protecting reflectors from
damage. Tool-less top access
allows service from above. Access
door allows splice inspection and
ballast service through aperture.
Plaster Frame/Collar
Die cast aluminum 1-1/2" deep
collar accommodates ceiling
materials up to 2".
Universal Mounting Bracket
Accepts 1/2" EMT, C channel and
bar hangers and adjusts 5"
vertically from above the ceiling.
Junction Box
(6) 1/2" and (2) 3/4" trade size pry
outs positioned to allow straight
conduit runs. Listed for (12) #12
AWG (six in, six out) 90°C
conductors and feed thru branch
wiring.
Fasteners
All fasteners that must be routinely
loosened or tighten for installation
and or maintenance are to be
captive.
Re-lamp
Suitable for top or bottom lamp
replacement. A lockout feature
prevents the lamp socket from
being installed in the incorrect
beam distribution position during
service.
Optical Upper Reflector
Clear anodized spun 0.050" thick
aluminum produces narrow,
medium and wide distribution
based on selected lamp center
position.
ORDERING INFORMATION
Ho u s i n g
L a m p T y p e / W a t t a g e
MD6 = 6" Aperture
MD6CP = 6" Aperture Chicago
Plenum
20T4G12 = 20W T4 G12 CMH lamp
39 T6 G12 = 39W T6 G12 CMH lamp
70 T6G12 = 70W T6 G12 CMH lamp
150 T6G12 = 150W T6 G12 CMH lamp
Lower Shielding Reflector
Hydro-formed 0.050" thick
aluminum parabolic contour
provides 50° lens and lens image
cutoff. Self flanged standard with
optional white painted flange. Also
available with polymer flange.
Available in all standard Alzak®
finishes.
Shielding
0.125" thick diffuse glass lens
masks arc tube support wire
image, striations and color
de-mixing common with uncoated
ceramic arc sources. Lens is
captive during lamp replacement.
Trim Retention
Upper and lower reflectors are
held securely together and are
retained with two torsion springs
holding the flange tightly to the
finished ceiling surface.
Electrical
Pulse rated G12 ceramic lamp
socket attaches to upper reflector
with three position bracket and
precisely maintains lamp center.
Insulation Detector
Self resetting detector opens
circuit if insulation is improperly
installed.
10 -3/16"
[259mm]
5-11/16"
[145mm]
7-1/4"
[185mm]
B a l l a s t
O p t i o n s
1
6950 = Reflector assembly with
E = Electronic, UNV
white polymer trim ring
120/277V 50/60 Hz
1E = Electronic,
6950X = Reflector assembly with
120V 50/60 Hz
white polymer trim ring,
2E = Electronic,
accepts quartz standby
277V 50/60 Hz
lamp
2
3E =Electronic,
6951 = Reflector assembly,
347V 50/60 Hz
self flanged
6951X = Reflector assembly,
Q=Quartz Restrike
self flanged, accepts
3
System
quartz standby lamp
X= Emergency
Circuit Lamp
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
Ballast
Universal input 120/277V electronic
ballast provides noise free
operation, improved efficiency and
increase lamp life as compared
with magnetic ballast. Regulated
output power over a wide range of
ANSI lamp voltages results in
excellent color stability over time.
Quartz Lamp Re-strike Time
Delay System (Q Option)
Internal auxiliary 100W DC bayonet
base T4 quartz lamp (included)
provides low level illumination in
the event of a momentary power
interruption.
Emergency Circuit Lamp (X
Option)
Emergency circuit lamp module for
100W DC bayonet base T4 quartz
lamp (included) by emergency
circuit.
Code Compliance
Thermally protected and cULus
listed for protected wet locations.
Optional City of Chicago
environmental air (CCEA) marking
for plenum applications. EMI/RFI
emissions per FCC 47CFR Part 18
non consumer limits.
16-1/16"
[408mm]
T r i m
F i n i s h
Ll=Low Iridescent
Clear
H=Clear Haze
WMH=Warm Haze
G=Gold
WH=Wheat
GP=Graphite
GPH=Graphite Haze
K=Cognac
KH=Cognac Haze
B=Black
W =Gloss White
PORTFOLIO
MD620T4G12
MD639T6G12
MD670T6G12
MD6150T6G12
E N E R G Y D A T A
Lamp: 20W MH
Input Watts: 26W
Max Current: 120V- 0.22A, 277V-0.11A
Power Factor:>95% T.H.D.:<15%
Min Starting Temperature: 5°F (-15°C)
Lamp: 39W MH
Input Watts: 120V-46W, 277V-45W
Max Current: 120V 0.39A, 277V-0.18A
Power Factor:>95% T.H.D.:<15%
Min Starting Temperature: -20°F (-30°C)
Lamp: 70W MH
Input Watts: 120V-86W, 277V-84W
Max Current: 120V .72A, 277V-0.31A
Power Factor:>90% T.H.D.:<16%
Min Starting Temperature: -20°F (-30°C)
Lamp: 150W MH
Input Watts: 120V-165W, 277V-161W
Max Current: 120V 1.38A, 277V-.69A
14-7/16"
Power Factor:>90% T.H.D.:<10%
[367mm]
Min Starting Temperature: -20°F (-30°C)
O p t i o n s
A c c e s s o r i e s
WF = White
HB26=
L Channel Bar Hangers, 26" Long, Pair
painted
HB50=
L Channel Bar Hangers, 50" Long, Pair
flange
RMB22=
Wood Joist Bar Hangers, 22" Long, Pair
(self-
HSA6=
Slope Adapter for 6" Aperture Housings;
flanged
Specify slope
only)
TRM6=
Metal Trim Ring, White
TRR6=
Rimless Trim Ring, White
Field Installable fuse Kit; Specify Amperage
FK=
Notes:
1
A vailab le w ith 20, 39 and 70 w att only.
2
A vailab le w ith 39, 70 and 150 w att only.
3
Not availab le w ith 20 w att.
Type
Date
Ceramic Metal
Halide Lens
Downlight
6" Aperture
ADP081244
07/15/2008 12:08:30 PM
