Simpli Home WyndenHall brooklyn+max AXCLRY-12DCB Manual

Lowry / mitchell / fulton sideboard buffet wine rack
Hide thumbs

Advertisement

Quick Links

Download this manual
TM
S IMP HOME
®
TM

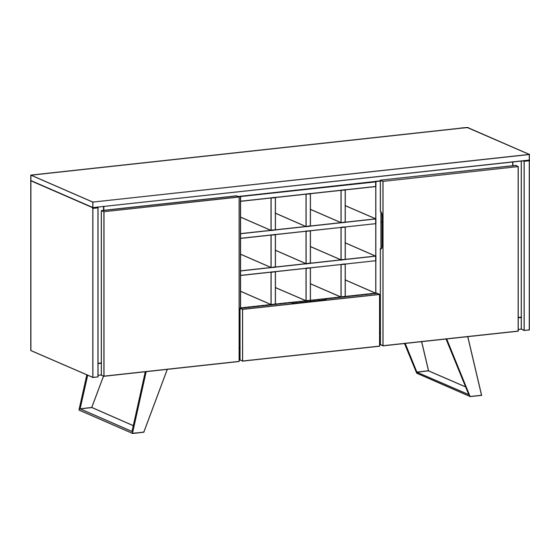

LOWRY / MITCHELL / FULTON
SIDEBOARD BUFFET WINE RACK
MODEL # AXCLRY-12DCB
1
/27

Advertisement

loading
Need help?

Need help?

Do you have a question about the WyndenHall brooklyn+max AXCLRY-12DCB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simpli Home WyndenHall brooklyn+max AXCLRY-12DCB

Summary of Contents for Simpli Home WyndenHall brooklyn+max AXCLRY-12DCB

  • Page 1 S IMP HOME ® LOWRY / MITCHELL / FULTON SIDEBOARD BUFFET WINE RACK MODEL # AXCLRY-12DCB...
  • Page 2 S IMP HOME ® Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –4 pm EST or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following...

  • Page 3: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 4: Care And Maintenance

    IMPORTANT : Keep this manual for future reference. CARE and MAINTENANCE Wood Furniture Care Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.

  • Page 5: Pre-Assembly Information

    PRE-ASSEMBLY INFORMATION MODEL # AXCLRY-12DCB PART DESCRIPTION BOTTOM FRAME LEFT SIDE QTY 1 QTY 1 QTY 1 RIGHT SIDE LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 TOP SHELF MIDDLE SHELF BOTTOM SHELF QTY 1 QTY 2 QTY 1 DIVIDER LEFT DOOR RIGHT DOOR...
  • Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCLRY-12DCB PART DESCRIPTION Warning Label TOP BACK PANEL BOTTOM BACK PANEL SHELF QTY 1 QTY 2 QTY 1 JOINING STRIP DRAWER FRONT LEFT DRAWER SIDE QTY 1 QTY 1 QTY 1 RIGHT DRAWER SIDE DRAWER BACK DRAWER BOTTOM QTY 1 QTY 3...
  • Page 7 PRE-ASSEMBLY INFORMATION MODEL # AXCLRY-12DCB HARDWARE DESCRIPTION LOCK WASHER WASHER ALLEN KEY BOLT ALLEN KEY SCREW M8 x 20 mm M6 X 30mm Ø12 / Ø8 x 1.5 mm Ø19 / Ø8 x 1 mm QTY 12 QTY 38 QTY 12 QTY 12 PHILLIPS SCREW ALLEN KEY...
  • Page 8 COMPONENTS-KEY DIAGRAM MODEL # AXCLRY-12DCB...
  • Page 9 ASSEMBLY MODEL # AXCLRY-12DCB STEP-1 1. Attach four Cam Lock Pins 14 into pre-drilled holes on Drawer Front O . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. STEP-2...
  • Page 10 ASSEMBLY MODEL # AXCLRY-12DCB STEP-3 1. Slide Drawer Bottom R firmly into slots on Drawer Sides PL ,PR and Drawer Front O . 2. Align Drawer Back Q with Drawer Bottom R and press firmly into slot . 3. Attach Drawer Back using two Phillip Screws 4 through guide holes on each Drawer Side PL , PR .
  • Page 11 ASSEMBLY MODEL # AXCLRY-12DCB STEP-4 1. Insert Wood Dowels 11 into guide holes on each part DL , DR , G . 2. Use rubber mallet to tap Dowels 11 into bottom of holes securely. 1/2 length of Dowels should be exposed.
  • Page 12 ASSEMBLY MODEL # AXCLRY-12DCB STEP-5 1. Align Wood Dowels with guide holes on Dividers DL , DR and attach Bottom Shelf G to Dividers DL , DR. 2. Use three Allen Key Screws 4 to attach each Divider DL , DR through guide holes. 3.
  • Page 13 ASSEMBLY MODEL # AXCLRY-12DCB STEP-7 1. Repeat Step - 6 for the rest parts H and F . STEP-8 1. Align Wood Dowels with guide holes on Top Shelf E and attach Top Shelf E to Dividers H . 2. Use three Allen Key Screws 4 to attach Top Shelf E through guide holes. 3.
  • Page 14 ASSEMBLY MODEL # AXCLRY-12DCB STEP-9 1. Insert Wood Dowels 11 into guide holes on each part B , CL , CR . 2. Use rubber mallet to tap Dowels 11 into bottom of holes securely. 1/2 length of Dowels should be exposed.
  • Page 15 ASSEMBLY MODEL # AXCLRY-12DCB STEP-10 1. Align Wood Dowels with guide holes on Bottom Frame B and attach Dividers DL , DR to Bottom Frame B . 2. Use six Allen Key Screws 4 to attach Bottom Frame B through guide holes. 3.
  • Page 16 ASSEMBLY MODEL # AXCLRY-12DCB STEP-11 1. Align Wood Dowels with guide holes on sides CL , CR and attach Sides CL , CR to Bottom Frame B . 2. Use six Allen Key Screws 4 to attach Bottom Frame B through guide holes. 3.
  • Page 17 ASSEMBLY MODEL # AXCLRY-12DCB STEP-12 1. Align Wood Dowels with guide holes on Top A and attach parts CL , CR , DL , DR to Top A . 2. Use three Allen Key Screws 4 to attach each part CL , CR , DL , DR through guide holes.
  • Page 18 ASSEMBLY MODEL # AXCLRY-12DCB STEP-13 1. Attach Legs S to Bottom Frame B . 2. Use twelve Allen Key Bolts 1 , twelve Lock Washers 2 and twelve Washers 3 to secure part B and S (six Bolts, six Lock Washers and six Washers on each Leg). 3.
  • Page 19 ASSEMBLY MODEL # AXCLRY-12DCB STEP-14 Warning Label NOTE: The screwdriver is not included in the hardware pack. 1. Attach the Top Back Panel L to back frame by using Phillips Screws 6 . Only 1st top row of screws to be screwed in advance. 2.
  • Page 20 ASSEMBLY MODEL # AXCLRY-12DCB STEP-15 1. Attach Adjustable Hinges 12 to Doors IL , IR using Phillips Screws 10 into guide holes on Doors IL , IR .
  • Page 21 ASSEMBLY MODEL # AXCLRY-12DCB STEP-16 1. Attach Adjustable Hinges 12 on Doors IL , IR to Sides CL , CR using Phillips Screws 10 into guide holes on Sides CL , CR . 2. Attach Magnets 7 using Phillips Screws 9 into guide holes on Left Divider DL and Right Divider DR .

  • Page 22: Important Note

    ASSEMBLY MODEL # AXCLRY-12DCB STEP-17 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1.
  • Page 23 ASSEMBLY MODEL # AXCLRY-12DCB STEP-18 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 8 for each Shelf K in desired location . 2. Two Shelf Supports 8 may be used on back top of each Shelf K as a tipping restraint.
  • Page 24 ASSEMBLY MODEL # AXCLRY-12DCB STEP-19 1. Insert assembled drawer into glides on assembled sideboard.
  • Page 25 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP-20 NOTE: The screwdriver is not included in the hardware pack.
  • Page 26 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.

  • Page 27: Warranty

    S IMP HOME ® WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
