User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type
Type I Camera
Type II Camera
This manual may contain several technical incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the new version of this manual. We will readily improve
or update the products or procedures described in the
manual.

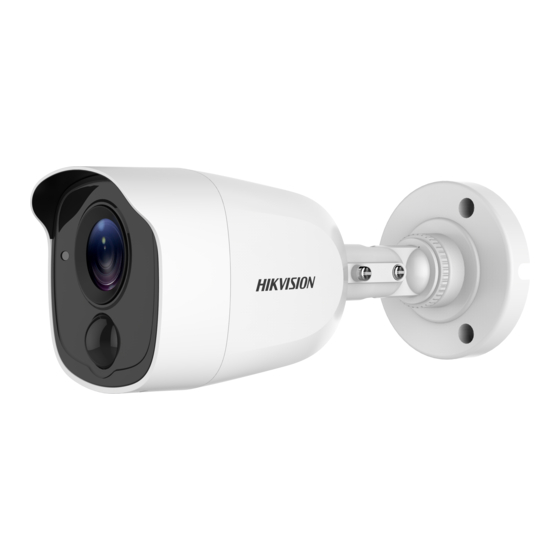

D8T PIR Series Bullet
TURBO HD
Camera
User Manual
Model
DS-2CE11D8T-PIRL
DS-2CE12D8T-PIRL
01000020200821
Advertisement
Table of Contents
Related Manuals for HIKVISION TURBO HD D8T PIR Series
Summary of Contents for HIKVISION TURBO HD D8T PIR Series
- Page 1 TURBO HD D8T PIR Series Bullet Camera User Manual User Manual Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the models below: Type Model Type I Camera DS-2CE11D8T-PIRL Type II Camera...
-
Page 2: Regulatory Information
Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. - Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
- Page 4 Keep the camera away from liquid while in use for non-water-proof device. While in delivery, the camera shall be packed in its original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark Description DC Voltage 1 Introduction 1.1 Product Features...
-
Page 5: Installation
2 Installation Before you start Make sure that the device in the package is in good condition and all the assembly parts are included. Make sure that all the related equipment is power-off during the installation. Check the specification of the products for the ... - Page 6 For cement wall/ceiling, expansion bolts are required to fix the camera. For wooden wall/ceiling, self-tapping screws are required. 4. Route the cables through the cable hole, or the side opening. 5. Connect the corresponding power cord, and video cable. 6.
- Page 7 Figure 2-5 Fix the Camera on the Junction Box’s Cover 5. Attach the junction box body to the ceiling/wall by aligning the screw holes of the junction box. 6. Secure the junction box’s body with supplied screws on the ceiling/wall. Figure 2-6 Fix the Junction Box to the Wall/Ceiling 7.
-
Page 8: Ceiling/Wall Mounting With Junction Box
Figure 2-8 Drill Template Note: Drill the cable hole in the center of the drill template, when adopting ceiling outlet to route the cable. 3. Route the cables through the cable hole (optional) or the side opening. 4. Fix the camera to the ceiling with supplied screws. Figure 2-9 Fix the Camera to the Ceiling Note: The supplied screw package contains self-tapping... - Page 9 2. Drill screw holes and the cable hole (optional) in the ceiling/wall according to the holes of the drill template. Figure 2-11 Drill Template Note: Drill the cable hole, when adopting ceiling outlet to route the cable. 3. Take apart the junction box, and align the screw holes of the bullet camera with those on the Junction box’s cover.
-
Page 10: Menu Description
3 Menu Description Please follow steps below to call the menu. Steps: 1. Connect the camera with the TVI DVR, and the monitor, shown as the figure 3-1. Figure 3-1 Connection 2. Power on the analog camera, TVI DVR, and the monitor to view the image on the monitor. -
Page 11: Video Format
2). Click Iris + to confirm the selection. 3). Click left/right direction button to adjust the value of the selected item. 3.1 VIDEO FORMAT You can select the video format as 2MP@25fps , or 2MP@30fps. 3.2 EXPOSURE EXPOSURE MODE You can set the EXPOSURE MODE as GLOBAL, BLC, HLC, or WDR. -
Page 12: Video Settings
MODE 1 could reach the most ideal effects of the low illumination, but it might cause a delay by contrast with the actual scenario. MODE 2 represents the normal mode. The SMART IR value can be adjusted from 0 to 3. The greater the value is, the more obvious effects are AUTO You can turn on/off the IR LIGHT, and set the value of... -
Page 13: Image Mode
VIDEO SETTINGS IMAGE MODE WHITE BALANCE BRIGHTNESS CONTRAST SHARPNESS SATURATION 3DNR MIRROR BACK EXIT SAVE & EXIT Figure 3-4 VIDEO SETTING IMAGE MODE IMAGE MODE is used to adjust the image saturation, and you can set it as STD (Standard), or HIGH-SAT (High Saturation). -
Page 14: Factory Default
conditions, and delivering more accurate and sharper image. You can set the DNR value from 1 to 9. MIRROR OFF, H, V, and HV are selectable for mirror. OFF: The mirror function is disabled. H: The image flips 180° horizontally. V: The image flips 180°... -
Page 15: Save And Exit
3.7 EXIT Move the cursor to EXIT and click Iris+ to exit the menu. 3.8 SAVE & EXIT Move the cursor to SAVE & EXIT and click Iris+ to save the settings, and exit the menu. UD12337B-A...
