Summary of Contents for Digitus DN-10180

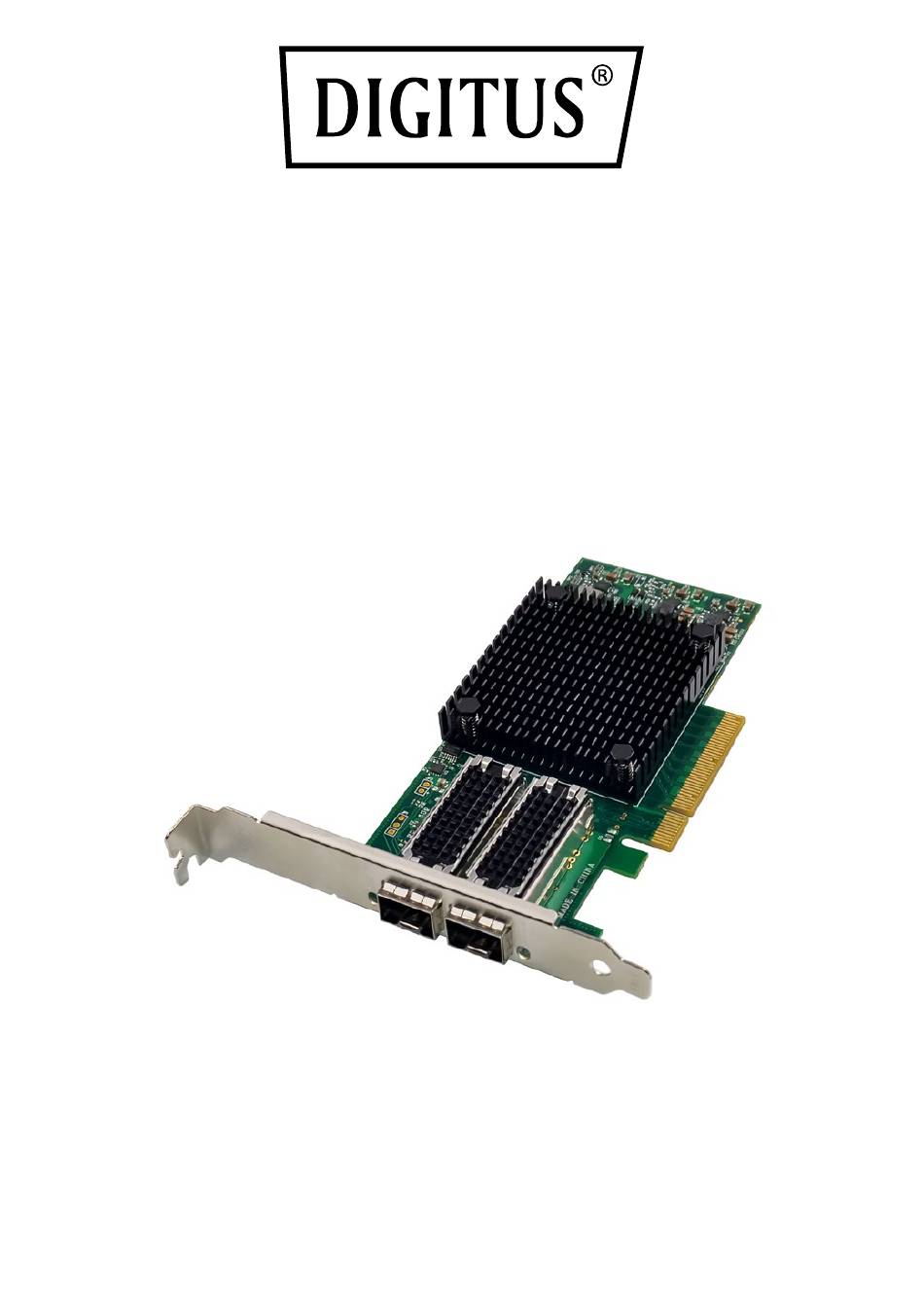

- Page 1 Dual-Port 25G SFP28 Adapter Quick Installation Guide DN-10180...
-
Page 2: Table Of Contents
PCI Express Specification Revision 3.0, 1.1, and 2.0, and supports link rates of 2.5, 5.0, or 8.0GT/s at x8. The DN-10180 features auto-negotiation capabilities that allow it to operate at x8, x4, x2, or x1, making it compatible with a wide range of devices. - Page 3 KR startup, and IEEE802.3ad, IEEE802.1ax, IEEE802.1Q, IEEE802.1P, IEEE802.1Qaz, IEEE802.1Qbb, IEEE802.1Qbg, IEEE1588V2. The DN-10180 also supports jumbo frame support up to 9.6KB, independent NC-SI SMBus interface, independent stand-by and wake-on-Lan signals, hardware-based reliable transport, collective operation offloads, and PeerDirect RDMA (aka GPUDirect communication acceleration).
-
Page 4: Package Contents
2. Package Contents 1x PCIe x8 Mellanox Connectx-4 Dual-Port 25G SFP+ adapter • 1x User’s Manual • 1x CD Driver • 1x Low profile bracket • 3. Specification • Compliant with PCI Express Specification Revision 3.0,1.1 and 2.0,2.5, 5.0, or 8.0GT/s link rate x8 •... -
Page 5: System Requirements
SR-IOV, Multi-function, Enhanced QoS, VMware support • • SR-IOV up to 256 virtual functions • SR-IOV up to 8 physical functions per port Guaranteed QoS for VMs • OpenMPI, IBM PE, OSU MPI, Intel MPI protocol support • NC-SI over MCTP over SMBus and NC-SI over MCTP over •... -
Page 6: Install Drivers And Software
6. Install Drivers and Software Windows Operating Systems You must have administrative rights to the operating system to install the drivers. 1. insert the CD driver bound with Mellanox network driver into your CD-ROM drive. 2. if the Found New Hardware Wizard screen is displayed, click Cancel. - Page 7 Windows8.1 Windows10 Windows Server2003/2003 R2 Windows Server2008/2008 R2 Windows Server2012/R2 Windows Server2016/R2 Windows Server2019/R2 Windows Server2022/R2 Ubuntu 14.04 or later Sles12 sp2 or later REHL/CentOS7.2 or later Oracle Linux 7.8 or later Operation OpenEULER 20.03 Systems KYLIN 10 Fedora 32 Euler0s 2.0 SP5/SP8/SP9 Debian 9.11/9.13/10.5/10.8 BCLINUX7.5 OR later...
- Page 8 Each Port 1/10/25Gbps transmit speed Ethernet power management IEEE802.3by 25Gbase-SR,25Gbase-LR, 25Gbase-ER IEEE802.3ae 10GBase-SR 10Gbase-LR, 10Gbase-ER,10Gbase-ZR IEEE802.3aq 10Gbase-LRM IEEE802.1Q,802.1P VLAN tags and priority Standards IEEE802.1Qbb priority flow control IEEE802.1Qbg IEEE1588V2 PXE/UEFI support ISCSI support VMDs, SR-IOV support TCP/IP Sec offload IPv4, IPv6 Support Jumbo frame size 9.6KB Network I/O...
- Page 9 Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
