EL
110
M
Features
180~295VAC/
220 ~ 417VDC
Constant Current mode output with multiple
levels selectable by dip switch
KNX protocol
Support emergency lighting(EL)
Integrated constant light output
Integrated KNX push button interface
Temperature compensation function by external NTC
Wiring
Housing with cable clamp for remote installation
Use wires with an adequate cross-section (see 6)
Use suitable mounting tools to do the wiring and mounting (see 6)
Use a
MCB
(miniature
circuit breaker) with an adequate current rating to protect the lighting system (see 7)
Environmental limitations
Maximum ambient temperature must not exceed 60
Always allow adequate ventilation clearances, 50mm, around the unit in use to prevent it from overheating
Only install the unit in interior environments
Cautions
This unit must be installed by a qualified electrician
This unit is not suitable for applications that DC/DC converters are connected before LED lamps
Settings and connections
1. Output Current Level Settings
The LCM can provide various output currents by setting the DIP switch. The settings of the DIP switch are shown in the tables below.
LCM-40KN
Voltage
Selectable
1
range
Current
---
2-100V
350mA
2-80V
500mA
ON
2-67V
600mA
ON
2-57V
700mA*
ON
2-45V
900mA
ON
2-40V
1050mA
ON
Note : 1.Factory default setting is 700mA.
2.Output voltage and output wattage must not exceed the rated values.
Terminal blocks assignment for LCM
123.5mm
2. Connection of LED Lamps
Press down the "push button" by a slotted screw driver to insert or remove the cable.
Attention: Always connect LED lamps first before connect to 230Vac mains to avoid damage of LED!

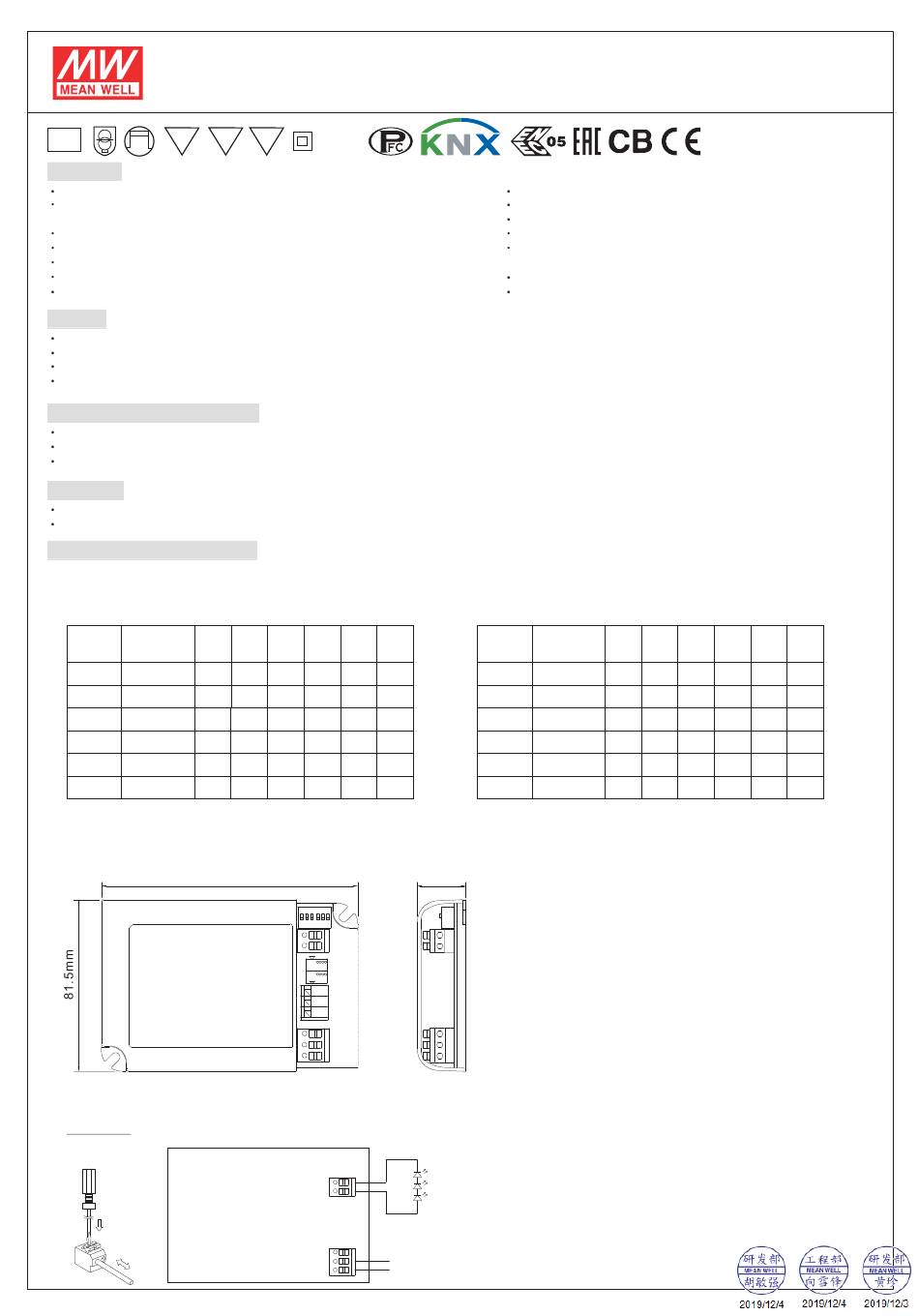

LCM-40KN, LCM-60KN installation manual
M
SELV
input
℃
2
3
4
5
6
---
---
---
---
---
---
---
---
---
---
---
---
---
---
ON
---
---
ON
ON
ON
---
ON
ON
ON
ON
ON
ON
ON
ON
ON
6 5 4 3 2 1
ON
-Vo
+Vo
KNX+
KNX-
-SYN.
+SYN.
-NTC
+NTC
-FAN
+FAN
PUSH
AC/N
AC/L
Vo-
Vo+
AC/N
NEUTRAL (Blue or white)
AC/L
LIVE (Brown or black)
http://www.meanwell.com
Ⅱ
Class
power unit, ungrounded
Full plastic case enclosed
Protections: Short circuit / Over voltage / Over temperature
Synchronization up to 10units
Functions: Manual dim, operation hours,power consumption
feedback, log/linear curve selection...etc
3 year warranty
Suitable for intelligent LED lighting
LCM-60KN
Voltage
Selectable
range
Current
2-90V
500mA
2-90V
600mA
2-86V
700mA*
2-67V
900mA
2-57V
1050mA
2-42V
1400mA
23mm
1
2
3
4
5
---
---
---
---
---
---
---
---
---
ON
---
---
---
ON
ON
---
---
ON
ON
ON
---
ON
ON
ON
ON
ON
ON
ON
ON
ON
MEAN WELL
2019/12/4
ISSUE
6
---
---
---
ON
ON
ON
