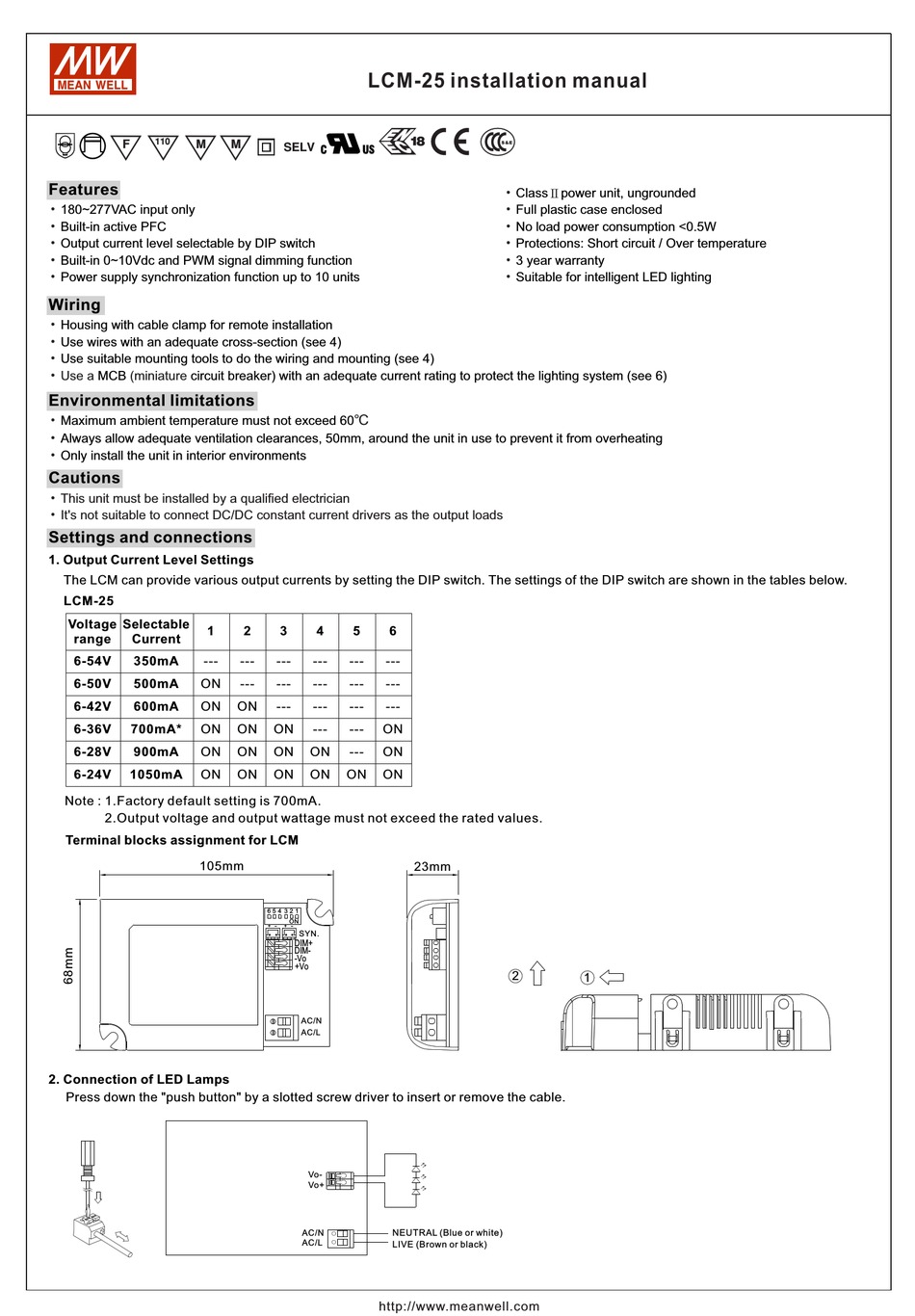

Mean Well LCM-25 Installation Manual

  
Features
‧
180~277VAC input only
‧
Built-in active PFC
‧
Output current level selectable by DIP switch
‧
Built-in 0~10Vdc and PWM signal dimming function
‧
Power supply synchronization function up to 10 units
Wiring
‧
Housing with cable clamp for remote installation
‧
Use wires with an adequate cross-section (see 4)
‧
Use suitable mounting tools to do the wiring and mounting (see 4)
‧
Use a MCB (miniature circuit breaker) with an adequate current rating to protect the lighting system (see 6)
Environmental limitations
‧
Maximum ambient temperature must not exceed 60
‧
Always allow adequate ventilation clearances, 50mm, around the unit in use to prevent it from overheating
‧
Only install the unit in interior environments
Cautions
‧
This unit must be installed by a qualified electrician
‧
It's not suitable to connect DC/DC constant current drivers as the output loads
Settings and connections
1. Output Current Level Settings
The LCM can provide various output currents by setting the DIP switch. The settings of the DIP switch are shown in the tables below.
LCM-25
Voltage Selectable
1
range Current
6-54V 350mA ---
6-50V 500mA ON
6-42V 600mA ON
6-36V 700mA* ON
6-28V 900mA ON
6-24V 1050mA ON
Note : 1.Factory default setting is 700mA.
2.Output voltage and output wattage must not exceed the rated values.
Terminal blocks assignment for LCM
105mm
2. Connection of LED Lamps
Press down the "push button" by a slotted screw driver to insert or remove the cable.
LCM-25 installation manual


℃
2 3 4 5 6
--- --- --- --- ---
--- --- --- --- ---
ON --- --- --- ---
ON ON --- --- ON
ON ON ON --- ON
ON ON ON ON ON
6 5 3
4 2 1
ON
+ - + -
SYN.
DIM+
DIM-
-Vo
+Vo
AC/N
AC/L
Vo-
Vo+
NEUTRAL (Blue or white)
AC/N
AC/L
LIVE (Brown or black)
http://www.meanwell.com
8
‧
Ⅱ
Class power unit, ungrounded
‧
Full plastic case enclosed
‧
No load power consumption <0.5W
‧
Protections: Short circuit / Over temperature
‧
3 year warranty
‧
Suitable for intelligent LED lighting
23mm
2
1
