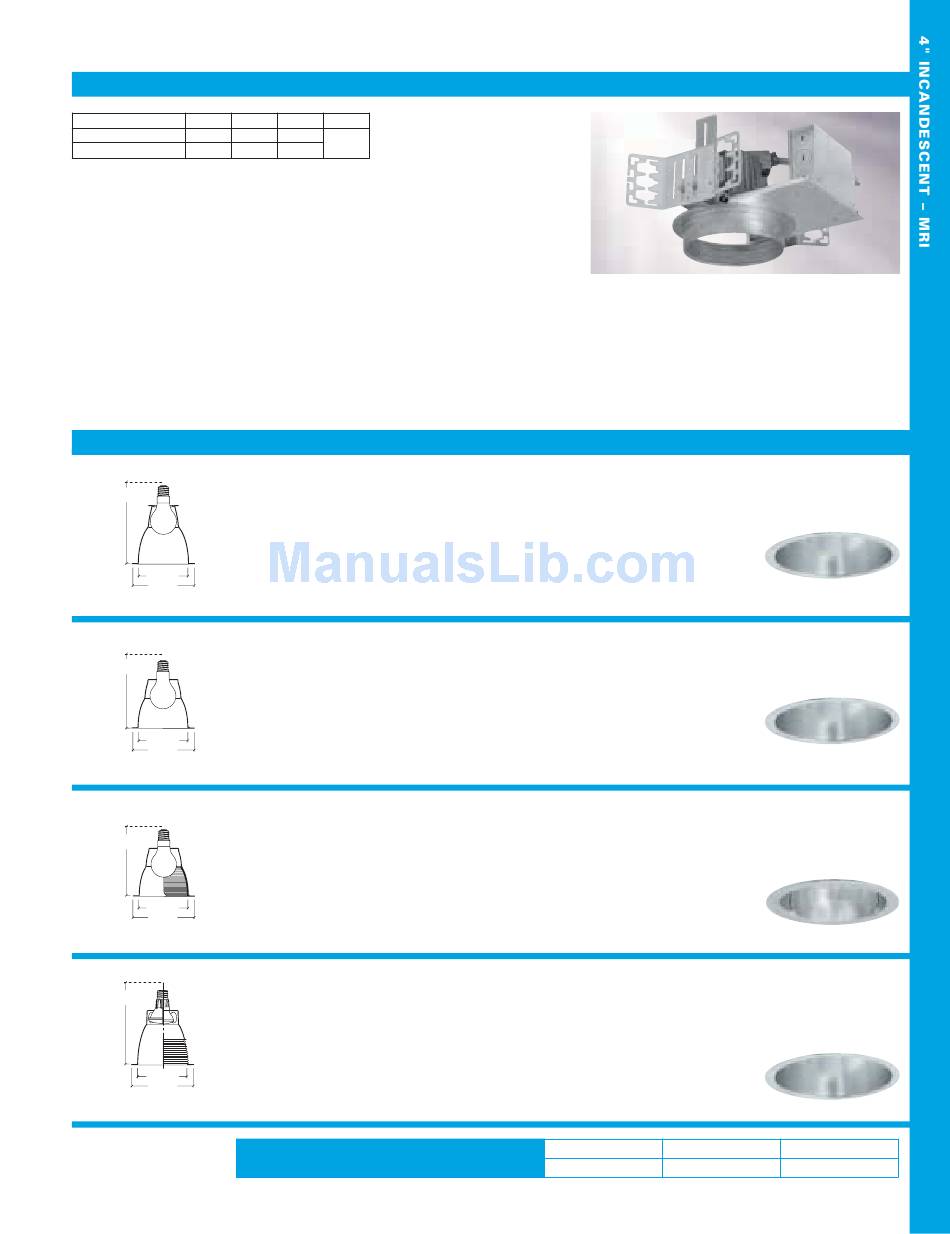

Cooper Lighting PORTFOLIO 843 Specification Sheet

Dimensions Length Width
Standard Housing 11-1/8" 13-5/8"
Chicago Plenum 11-1/8" 13-5/8"
Height varies with socket position; see reflector line drawing below for overall
fixture height. Add 1/2" height for Chicago Plenum option.
HOUSING
HD4MRI=Non-Ferrous Incandescent
HD4MRICP=Non-Ferrous Incandescent, Chicago Plenum
TRIM
4501=Self Flanged
8"
4-7/16"
5-3/4"
TRIM
4551=Self Flanged
4550=Molded Trim Ring, White
8"
4-7/16"
5-3/4"
TRIM
4511=Single Wall Wash, Self Flanged
4510=Single Wall Wash, Molded Trim Ring, White
8"
4521=Double Wall Wash, Self Flanged
4520=Double Wall Wash, Molded Trim Ring, White
4531=Corner Wall Wash, Self Flanged
4530=Corner Wall Wash, Molded Trim Ring, White
4-7/16"
5-3/4"
TRIM
4201=Self Flanged
8-1/4"
4200=Molded Trim Ring,
White
4-7/16"
5-3/4"
4" Non-Ferrous Downlight
Height Cutout
H"
5-1/8"
H"
Non-ferrous downlight for MRI suites. Medium and
wide beam distribution for general and task lighting
from a variety of vertically mounted incandescent and
halogen lamps. Adjustable socket position maintains
focus for varied reflector types. Rated for DC operation.
FINISH
LI=Low Iridescent Clear
H=Haze
WMH=Warm Haze
G=Gold
WH=Wheat
B=Black
W=Gloss White
GP=Graphite
Ordering Example
Housing, Trim, Accessories and Lamps ordered as separate line items.
A19
PAR16/20
R20
ACCESSORIES
TRR4=Rimless Trim Ring, White
*
*Not compatible with Self Flange
FINISH OPTIONS
LI=Low Iridescent Clear WF=White
H=Haze Painted
WMH=Warm Haze Flange (Self
G=Gold Flanged only)
WH=Wheat DR=Derated
B=Black Wattage
W=Gloss White Label
GP=Graphite
GPH=Graphite Haze
K=Cognac
KH=Cognac Haze
FINISH OPTIONS
LI=Low Iridescent Clear WF=White
H=Haze Painted
WMH=Warm Haze Flange (Self
G=Gold Flanged only)
WH=Wheat DR=Derated
B=Black Wattage
W=Gloss White Label
GP=Graphite
GPH=Graphite Haze
K=Cognac
KH=Cognac Haze
FINISH OPTIONS
LI=Low Iridescent Clear WF=White
H=Haze Painted
WMH=Warm Haze Flange (Self
G=Gold Flanged only)
WH=Wheat DR=Derated
B=Black Wattage
W=Gloss White Label
GP=Graphite
GPH=Graphite Haze
K=Cognac
KH=Cognac Haze
OPTIONS
GPH=Graphite Haze WF=White
K=Cognac Painted
KH=Cognac Haze Flange (Self
BB=Black Baffle Flanged only)
(4200 only) DR=Derated
WB=White Baffle Wattage
(4200 only) Label
Housing
HD4MRI
PORTFOLIO
HOUSING
4"
HD4MRI
TRIM
Open Downlight
A19 100W Max (Medium Beam)
Open Downlight
A19 100W Max (Wide Beam)
Open Wall Wash
GRUVI
A19 100W Max
Open Downlight
PAR16/20 60W Max
R20 60W Max
Trim Accessories
4501LI TRR4
COOPER LIGHTING
™
843
