Summary of Contents for Numatic HGB 817

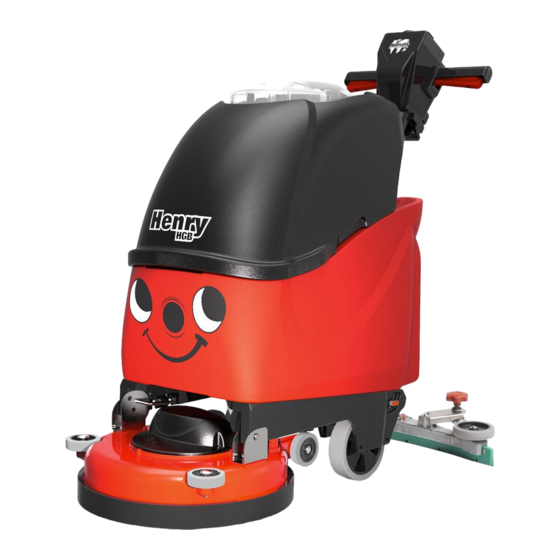

- Page 1 HGB 817/HGB 3045 TGB 817/TGB 3045 TGB 4045 TGB 4055 TGB 4055T S C R U B B E R D RY E R Owner Instructions Warning! Read instructions before using the machine www.numatic.co.uk...
-
Page 2: Table Of Contents
S C R U B B E R D R Y E R HGB 3045/HGB 817 / TGB 817/TGB 3045 / TGB 4045 / TGB 4055 / TGB 4055T Index PLEASE READ Machine Overview ........ Pages 2-3 BEFORE COMMENCING Control Panel Overview ........ Page 4 OPERATION Machine Set up Guide ........ -
Page 3: Machine Overview
Machine Overview TGB 4045/4055 TGB4055T Batteries HGB 817/3045 TGB 817/3045 Batteries TGB 4045/4055 HGB 817/ 3045 TGB 817 3045 Fuses TGB 4045/4055 TGB 4045/4055... -
Page 4: Control Panel Overview
S C R U B B E R D R Y E R HGB 817/3045 / TGB 817/3045 / TGB 4045 / TGB 4055 Control Panel Overview Battery Charge Level Indicator Vacuum Pick Up On / Off Water Flow On / Off... -
Page 5: Machine Set Up Guide
Machine Set-up Guide PLEASE READ BEFORE COMMENCING ANY OPERATION AFTER THE REMOVAL OF ALL THE PACKAGING, CAREFULLY OPEN AND CHECK THE CONTENTS. TGB CONTENTS ● 2 x Isolator Keys ● 2 x 40 Amp Fuse Fuse Location ● 1 x 30 Amp Fuse ● 1 x 20 Amp Fuse ●... -
Page 6: Fitting The Brush / Pad
Push waste collection pipe onto the floor tool; ensure a tight fit. Raise the floor tool for transit or lower for cleaning operation using the lifting handle fitted to the back of the machine. For fitting the floor tool blades (See Page 12). www.numatic.co.uk... -
Page 7: Fitting The Hose Guide
Machine Set-up Guide Fitting the Hose Guide The vacuum hose has a U-bend clip which creates a U-bend in the hose preventing water spillage when the vacuum is switched off. If you need to remove the U-bend clip for any reason always ensure it is refitted correctly before you resume operation. NOTE: DO NOT push the vacuum hose onto the floor tool with the floor tool in the raised position. -
Page 8: Handle Height Adjustment
Do not operate machine unless the Operator Manual has been read and fully understood. The machine is now ready to be moved to the cleaning site. Before performing the cleaning operation, place out appropriate warning signs and sweep or dust-mop the floor. www.numatic.co.uk... -
Page 9: Lowering The Floor Tool
Machine Operation Raising/Lowering the Floor Tool After preparing the floor (see previous section), we are now ready to set the controls to suit the cleaning conditions. Before any settings can be applied, ensure the brush deck is lowered. Move the floor tool lever to its lower position. -
Page 10: Breakaway Floor Tool
First pre-scrub the floor with the floor tool in the raised position, allow the chemical time to work then scrub the area a second time with the floor tool lowered. If streaking occurs wipe floor tool blades clean. NOTE: Care must be taken to reduce speed when cornering or when manoeuvring around obstacles www.numatic.co.uk... -
Page 11: Machine Maintenance
Regular Maintenance ALWAYS ENSURE THAT THE MACHINE IS SWITCHED OFF PRIOR TO ANY MAINTENANCE USING THE MASTER CONTROL ON/OFF KEY. REMOVE THE KEY PRIOR TO ANY MAINTENANCE OPERATION. After use, empty waste water tank using emptying hose and flush out with clean water. -
Page 12: Changing Floor Tool Blades
Replacement is a reversal of the removal process. Floor Tool Overview 1. Retaining pins x 4 2. Front blade (slotted) 3. Blade carrier 4. Rear blade 5. Floor tool main body NOTE: The blades are designed to be reversible, thus extending their useful working life. www.numatic.co.uk... -
Page 13: Machine Charging
Remove Isolator Plug and connect your external charger. Refit Isolator Plug before operating the machine. Note: Only use the recommended charger and leads. Contact Numatic International Ltd for recommended charger and leads. T 01460 68600... -
Page 14: Battery Care
If the machine will be standing unused for a period of 30 days or more, then batteries must be fully charged and battery fuses removed using the maxi fuse-puller provided, prior to this period. Batteries should be re-charged every three months. Charge fully the day before you start using the machine again. www.numatic.co.uk... -
Page 15: Traction Tgb 4055T
B AT T E RY S C R U B B E R D RY E R , T R A C T I O N D R I V E TGB 4055T Control Panel Overview Battery Charge Level Indicator On / Off Switch Vacuum Pick Up On / Off Anti Crush Switch... - Page 16 Located on the left side of the machine is the Free Wheel lever. To disengage the brake / drive mechanism, push the lever down. This allows the machine to be moved in free wheel mode. Note: When the machine is in free wheel mode the brake has been disengaged, avoid slopes. www.numatic.co.uk...
-
Page 17: Specifications
Specifications 817/ 3045 / TGB 817/ 3045 BRUSH WEIGHT 29.0 kg GROSS WEIGHT ( i.e. with liquid) 120 kg BRUSH PRESSURE NETT WEIGHT ( i.e. NO liquid) 90 kg/277 lbs 21.7 g/cm²/64 lbs PAD PRESSURE 23.1 g/cm² POWER SOURCE GELL BATTERY 24 VOLT (2 x 12V) 55Ah CLEANING AREA RUN TIME (BATTERY LIFE) 1 HRS 30 MINS... -
Page 18: Rating Label / Personal Protective Equipment / Recycling
NOTE: A risk assessment should be conducted to determine which PPE should be worn. In the event of a breakdown contact Safety Critical Component: your Numatic dealer or the Charging Leads: H05VV-F x 1.0 mm x 3 Core Numatic Technical... -
Page 19: Safety Precautions
Operators shall be adequately instructed as to the correct use of the machine. If this product does not have a factory installed Numatic battery charger, then it is the responsibility of the owner and user of the product to ensure that the charging system and battery combination are compatible, fit for purpose and safe to use. -
Page 20: Schematic Diagram
The batteries are to be disposed of safely and in accordance with the battery directive. 10. Only use genuine Numatic replacement batteries. 11. Do not allow the batteries to become fully discharged; it may not be possible to re-charge them. -
Page 21: Recommended Spare Parts
Too much load on the brush system Decrease the brush load to best suit the operating floor type. Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or Numatic Technical helpline +44 (0)1460 269268 T 01460 68600... -
Page 22: Eu Declaration Document
EU Declaration of Conformity www.numatic.co.uk... -
Page 23: Warranty
Warranty T 01460 68600... -
Page 24: Company Address
Tel: 0861 686 284 www.numatic.co.za Numatic International Schweiz AG. Sihlbruggstrasse 142, 6340 Baar. SCHWEIZ Tel: 0041 (0) 41 76 80 76 - 0 www.numatic.ch Numatic International ULDA. Centro de Negócios da Maia, Rua Albino José Domingues, 581, 4470 – 034 Maia PORTUGAL Tel: +351 220 047 700 www.numatic.pt...
