Numatic HT4045 Original Instructions Manual
Scrubber dryer
Hide thumbs
Also See for HT4045:
- Owner's instructions manual (20 pages) ,
- Instructions manual (40 pages) ,
- Instructions manual (108 pages)
Subscribe to Our Youtube Channel
Related Manuals for Numatic HT4045
Summary of Contents for Numatic HT4045

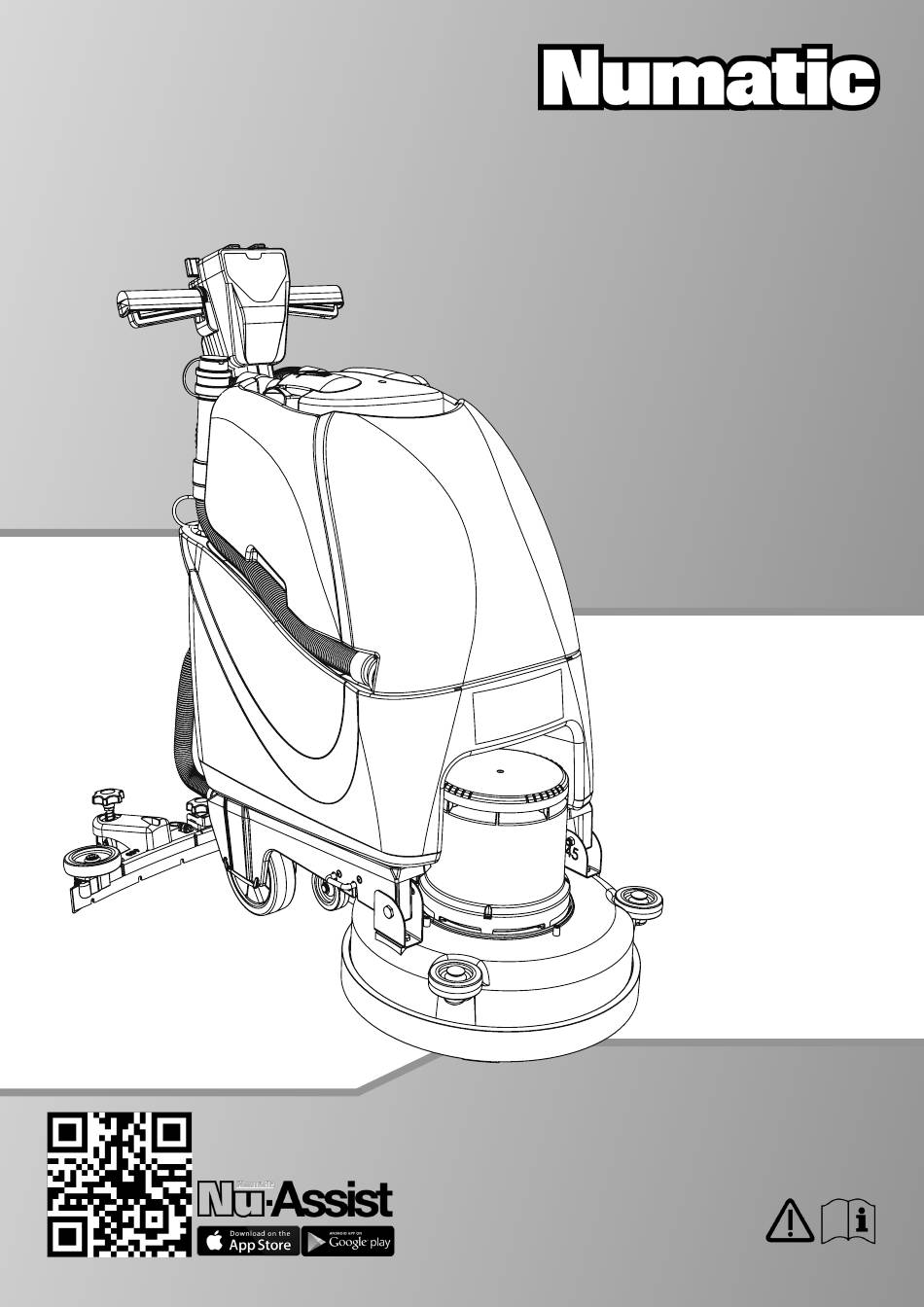

- Page 1 HT4045 TT4045G TT4055G S C R U B B E R D RY E R Original Instructions CAUTION, Read instructions before using the machine Keep for future reference numatic.com...
-
Page 2: Table Of Contents
Trouble Shooting .........Page 17 Recommended Spare Parts ......Page 17 In the event of a breakdown contact Warranty .........Page 18 your Numatic dealer or the Numatic Technical EU Declaration Document ......Page 19 Help line +44 (0)1460 269268 Company Address .........Page 20... -
Page 3: Machine Overview
Machine Overview... -
Page 4: Machine Set Up Guide
Featuring the Nuloc brush system (Fig F). The brush is simply pushed and twisted to lock, making fitting and removal a simple process. The Pad is retained using Numatic’s own PadLoc system (Fig E) (ask your supplier for details). Only use manufacturer supplied brushes / pads. -
Page 5: Raising/Lowering The Brush Deck
Machine Set-up Guide ALWAYS ENSURE THAT THE MACHINE IS SWITCHED OFF BEFORE MAKING ANY ADJUSTMENTS Raising/Lowering the Brush Deck To tip the deck into the down position (Operating mode). Press in the brush deck locking pin (Fig H) and rotate the brush deck (Fig I & J). To change to brush deck up position, (Transit mode) simply lift the deck and the spring loaded locking pin will activate to hold the deck up. -
Page 6: Fitting The Floor Tool
Machine Set-up Guide Fitting the Floor Tool The floor tool has been designed for quick fitting, allowing easy squeegee blade replacement and a safety knock-off feature if the floor tool gets snagged, whilst in transit. Note: It is easier to fit the floor tool if the weight of the machine is resting on the brush. Ensure the brush is fitted first. Fit the floor tool and retain using the detent pins. -
Page 7: Fill Level Indicator
Machine Set-up Guide Fill Level Indicator Fill the clean-water tank to MAX line indication on tank, including cleaning chemicals if required. Follow chemical manufacturing guide lines. The clear dump hose at the rear of the machine can be used to see the level of the clean-water (Fig X). -
Page 8: Machine Operation
Machine Operation ALWAYS ENSURE THAT THE FLOOR IS PRE-SWEPT AND RELEVANT SAFETY SIGNS ARE DISPLAYED. Lowering the Floor Tool After preparing the floor (see previous section), we are now ready to set the controls to suit the cleaning conditions. Before any settings can be applied, ensure the brush deck is lowered. -
Page 9: Setting The Cleaning Controls
Machine Operation Setting the Cleaning Controls Ensure your TT machine has been plugged into a suitable power supply. (Fig E) Switch on the Vacuum (F) and the water pump (G). To operate the machine squeeze lever (1), then press yellow lever (2). Releasing the Levers (1) will stop the machine. -
Page 10: Regular Maintenance
Regular Maintenance Scan for Daily Maintenance ALWAYS ENSURE THAT THE MACHINE IS Poster SWITCHED OFF PRIOR TO MAINTENANCE. Remove the two hoses to disconnect the separator from the machine (Fig 1). Whilst pulling the top tank separator toggles up and inwards, remove the separator. -
Page 11: Changing The Floor Tool Blades
Changing the Floor Tool Blades ALWAYS ENSURE THAT THE MACHINE IS SWITCHED OFF PRIOR TO MAINTENANCE. To clean the floor tool, remove securing-pin and pull-free from the holder. Rinse the floor tool assembly with clean water and refit. Periodically the floor tool blades should be examined and checked for wear and damage. -
Page 12: Specifications
Specifications HT4045 & TT4045G Brush Motor Brush Sizes Pad Sizes Brush Pressure Pad Pressure Brush Weight Brush Speed 150rpm @ 180rpm @ 21 - 25 g/cm 2 27 - 31 g/cm 2 1500 W 450 mm 400 mm 34 - 39 kg... -
Page 13: Ht 4045 Face Fitting
Face Fitting... -
Page 14: Schematic Diagram
Face Fitting Schematic Diagram Daily Keep the machine clean. Ensure brushes / pads / squeegee / filters are in good condition. Check for any worn or damaged parts and replace immediately. Drain and rinse dirty water tank after every use. Weekly –... -
Page 15: About The Machine
Note: A risk assessment should be conducted to determine which PPE should be worn. In the event of a breakdown contact Safety Critical Component: your Numatic dealer or the Mains lead: Numatic Technical H05VV-F 20m x 3 Core x 1.5mm²... -
Page 16: Information For Scrubber Dryer
• Only replace the power cord with the correct Numatic approved replacement parts. • Ensure that the work area is clear of obstructions and / or people. -
Page 17: Off-Aisle Cleaning Kit
Off-Aisle Cleaning Kit (Optional Extra Accessory) The optional off-aisle cleaning kit gives added flexibility to the operator. The kit can be used to clean hard to reach / inaccessible areas. Remove the vacuum hose from the floor tool and attach to the off-aisle kit. To operate the vacuum, press the vacuum switch on. -
Page 20: Company Address
Floor Tool Charging Lead Battery Fuse Pack Signed numatic.com Numatic International Limited (Head Offi ce) Chard, Somerset TA20 2GB, UNITED KINGDOM Tel: 01460 68600 numatic.com Numatic International GmbH Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND Tel: +49 (0) 511 984 2160 numatic.de...
