Owner Instructions
Original instructions
Warning! Read instructions before using the machine
TTV 5565
Scrubber Dryer
TTV 5565
www.numatic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTV 5565 and is the answer not in the manual?

Questions and answers

Related Manuals for Numatic TTV 5565

Summary of Contents for Numatic TTV 5565

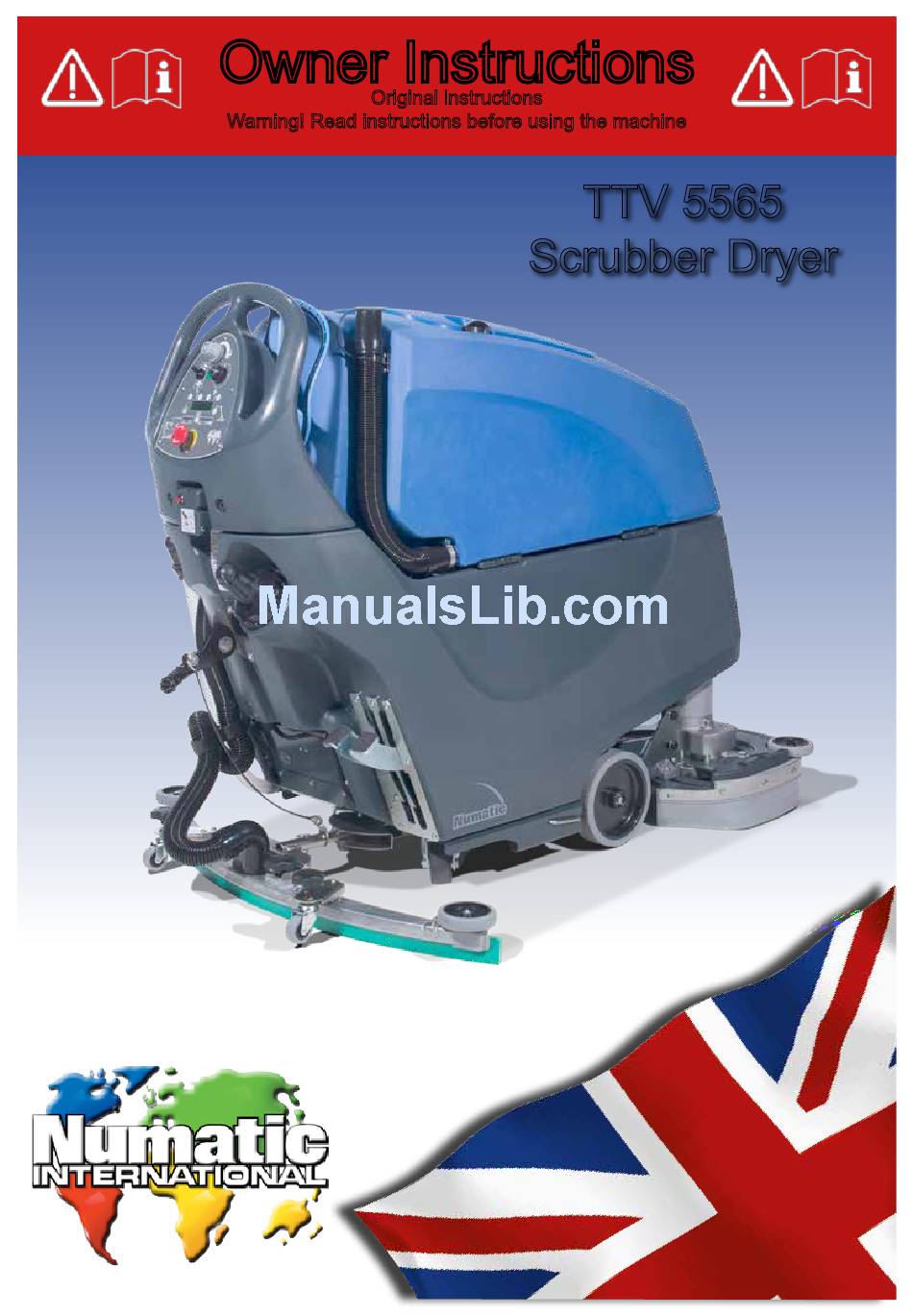

  • Page 1 Owner Instructions Original instructions Warning! Read instructions before using the machine TTV 5565 Scrubber Dryer TTV 5565 www.numatic.com...

  • Page 2: Table Of Contents

    Before continuing, please refer to Quick Set Up Guide on Page 8 Index Page 2 Machine Overview Page 3 Control Panel Overview Page 4 Rating Label / Personal Protective Equipment / Recycling Page 5 Safety Precautions Page 6 / 7 Quick Set-up Guide Page 8 Machine Set-up...

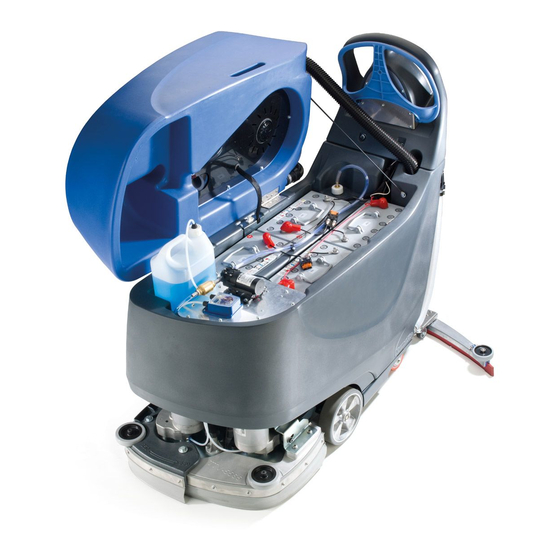

  • Page 3 Machine Overview Operator Control Panel (see page 4) Water Pump Charging Socket Batteries Clean-water Fill Point 40 Amp Battery Fuses x 2 Floor-tool Lifting Lever Clean-water Filter Clean-water Level Indicator / Drainage Hose Waste-water Emptying Hose Floor-tool Vacuum Hose Top Tank Hood Release Catches Charging Light Top Tank (waste-water) Brush Deck-lifting Pedal...

  • Page 4: Control Panel Overview

    Control Panel Overview Control handle (Variable Speed - start / stop trigger) Main Control On / Off Key Speed Control Chemical Mix Adjustment Forward / Reverse Switch Off Aisle Vacuum Button / Whisper mode Traction Status Indicator Battery Charge Level Meter Water Flow Rate Adjustment Hour Meter Toggle Button Hi - Lo Button...
  • Page 5 A risk assessment should be conducted to determine which PPE should be worn. Safety Critical Component Charging Lead: H05VV-F x 1.0 mm x 3 core Battery Charger: 220 / 240 Volt In the event of a breakdown contact your Numatic dealer or the Numatic Technical help line +44 (0)1460 269268...
  • Page 6 • Regularly examine the power cord for damage, such as cracking or ageing. If damage is found, replace the cord before further use. • Only replace the power cord with the correct Numatic approved replacement parts. • Ensure that the work area is clear of obstructions and / or people.
  • Page 7 The batteries are to be disposed of safely and in accordance with the battery directive. 10. Only use genuine Numatic replacement batteries. 11. Do not allow the batteries to become fully discharged; it may not be possible to recharge them.

  • Page 8: Quick Set-Up Guide

    Quick Set-Up Guide PLEASE READ BEFORE COMMENCING ANY OPERATION. AFTER THE REMOVAL OF ALL THE PACKAGING, CAREFULLY OPEN AND CHECK THE CONTENTS OF THE START UP PACK. Contents: 1 x Operator Manual 1 x Battery Charging Lead 2 x Keys 3 x 40 Amp Fuses (1 x spare) 1 x Maxi Fuse-puller Use handle grip when...

  • Page 9: Setting The Width

    550mm setting. 650mm setting. Owning the TTV 5565 scrubber dryer is like having 2 machines in one. With two width-settings the operator can quickly adapt the machine to any cleaning situation; without the need for any tools. The machine can be set to clean anything from a narrow corridor to a large warehouse.

  • Page 10: Fitting The Hose Guide

    Machine Set-Up Fitting the Hose Guide The vacuum hose has a U-bend clip which creates a U-bend in the hose preventing water spillage when the vacuum is switched off. If you need to remove the U-bend clip for any reason always ensure it is refitted correctly before you resume operation. Refit vacuum hose to the Floor-tool when finished.

  • Page 11: Filling The Clean-Water Tank

    Machine Set-Up Filling the Clean-water Tank The TTV 5565 is equipped with a large capacity 85 litre clean-water tank allowing, for large areas to be covered in a single fill. To fill the clean-water tank, extend the hose located to the rear of the machine in the centre of the removable filler cap, see (Fig.16).

  • Page 12: Chemical Dosing System

    (Fig.22), remove the dosing bottle, unscrew the bottle cap and fill with appropriate cleaning chemical, or fit your own chemical container, reusing the original Numatic container cap 38mm or 42mm (Fig 23). Refit dosing bottle and replace bottle cap, and carefully lower waste-water tank.
  • Page 13 Machine Operation Lowering the floor-tool After preparing the floor (see previous section), we are now ready to set the controls to suit the cleaning conditions. Before any settings can be applied, ensure the brush deck is lowered (see Fig.24). Move the floor-tool lever to its lower position (see Fig.25). Note: The machine will still reverse with the floor-tool in the lowered position, this could possibly damage the blades.

  • Page 14: Setting The Cleaning Controls

    (fig.29). The TTV 5565 has been fitted with a Hi - Lo mode, this reduces the noise produced by the vacuum motor. To operate the Hi - Lo mode start the machine in the normal way.

  • Page 15: Brush Pressure / Load Adjustment

    The waste-water tank requires emptying (see page 19). Emergency Stop The TTV 5565 is equipped with an electronic braking system. Simply release the hand operated start / stop trigger and the machine will stop. In an emergency, strike the Emergency Stop button.

  • Page 16: Machine Usage Advice

    Machine Operation Breakaway Floor-tool The floor-tool design incorporates a breakaway feature. Allowing it to safely disengage from its mounting should it become caught on an obstruction, during forward machine movement. (See Fig.34) To re-attach the blade to its holder. First loosen the retaining knobs on the floor-tool body and slide onto the holding bracket. Tighten retaining knobs to finger tight.
  • Page 17 Off-Aisle Cleaning Kit (Optional Extra Accessory) 606182 The optional off-aisle cleaning kit gives added flexibility to the operator. (Fig.37) The kit can be used to clean hard to reach / inaccessible areas. Return the hose to the floor-tool once finished using the off-aisle facility. (Fig.38) Off-Aisle Accessory Kit (Optional) (606182)

  • Page 18: Free-Wheel Function

    Free-wheel Function ALWAYS ENSURE THAT THE MACHINE IS ON LEVEL GROUND BEFORE DISENGAGING BRAKE ARM. NEVER DISENGAGE THE BRAKE WHEN THE MACHINE IS ON A SLOPE / GRADIENT. The TTV5565 is equipped with a free-wheel function that will enable the operator to move the machine manually if required. The motor brake is located on the left side of the machine near the rear wheel (see Fig.39).
  • Page 19 Regular Maintenance ALWAYS ENSURE THAT THE MACHINE IS SWITCHED OFF PRIOR TO ANY MAINTENANCE USING THE MASTER CONTROL ON/OFF KEY. REMOVE THE KEY PRIOR TO ANY MAINTENANCE OPERATION. After use, empty waste-water tank using emptying hose and flush-out with clean-water. Next remove floor-tool vacuum hose and flush out with clean-water.
  • Page 20 Changing the Floor Tool Blades ALWAYS ENSURE THAT THE MACHINE IS SWITCHED OFF PRIOR TO ANY MAINTENANCE USING THE MASTER CONTROL ON/OFF KEY. REMOVE THE KEY PRIOR TO ANY MAINTENANCE OPERATION. The Floor-tool To clean the floor-tool, remove securing-pin and pull-free from the holder. Rinse the floor-tool assembly with clean water and refit.
  • Page 21 Machine Charging ALWAYS ENSURE THAT THE MACHINE IS SWITCHED OFF PRIOR TO CHARGING. The battery meter displays the charge level of the batteries; when fully charged, all meter lights are illuminated (see Fig.49). As the machine is used and the batteries are discharged, the meter lights will go out from right to left.

  • Page 22: Battery Care

    Battery Care To ensure your machine remains at its maximum efficiency and prolong your battery life, please follow the simple steps below: Under normal daily usage: Recharge batteries after each use regardless of machine operation time (see page 21). Showing location of Viewing panel for charging-light sequence (Fig.54). Signal (LED) Meaning Yellow...
  • Page 23 Specifications Gross Weight Transaxle Brush Motor Vac Motor Brush Sizes Pad Sizes Net Weight Protection Class (Full) 400 W / 280 mm 280 mm 400 W 600 W 287 Kg 372 Kg IPX4 400 W 330 mm 330 mm Recharge Water Nuchem Water...
  • Page 25 Contact Service Agent.
  • Page 26 (page 15) In the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline +44 (0)1460 269268 (See back page for company addresses or dealers stamp)
  • Page 27 Spare Parts & Accessories BRUSHES HOSES 606253 330 mm Octo HD Nyloscrub Brush (2 req) 280019 Floor tool Hose 606172 330 mm Octo Nyloscrub Brush (2 req) 280018 Dump Hose Top Tank 606174 330 mm Octo Polyscrub Brush (2 req) 213058 Vac Hose 606176...

  • Page 28: Schematic Diagram

    TTV 5565 - Schematic Diagrams Notes ............................................................................................................................................................................
  • Page 29 Notes ..................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 30 RoHS Directive 2011/65/EU Machine Description: Scrubber Dryer Type: TTV, TRO, CRO series Manufactured by: Numatic International Limited Relevant standards upon which conformity is declared include: IEC 60335-1 2001 + A1 2004 + A2 2006 + National Deviations IEC 60335-2.72 Ed 2.0...
  • Page 32 TTV 5565 This machine has been packed with the following: Charging Lead Fuses Isolator Key / Pin Hose Hook 38 / 32mm Adaptor Signed Distributed by Numatic International Limited Chard, Somerset TA20 2GB ENGLAND. Telephone 01460 68600 Fax: 01460 68458 www.numatic.co.uk...
