LONCIN LC2V80FD Maintenance Manual page 42

Chapter V Disassembly & Repair
b. Check
Engine switch

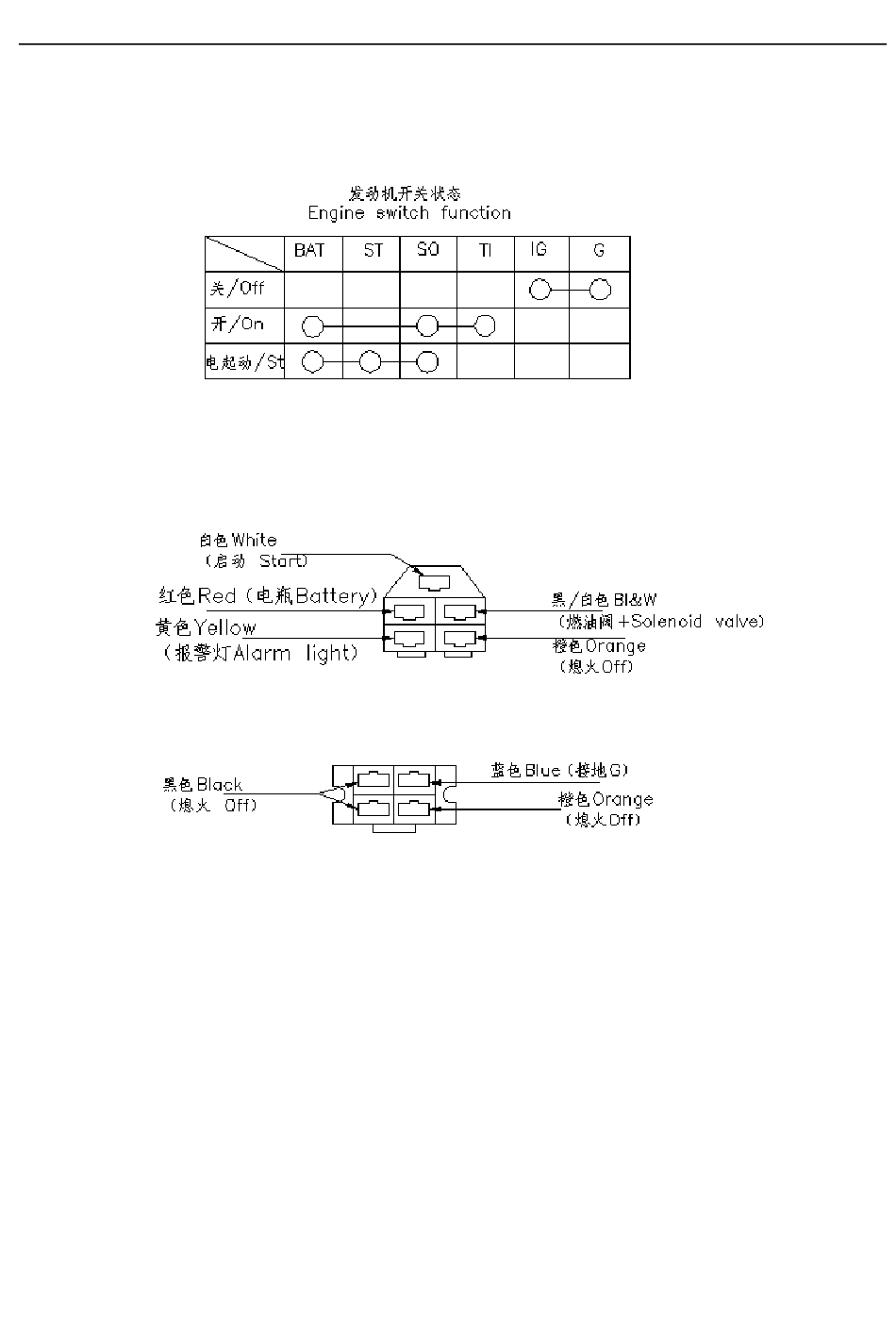

Check the conductivity of switch terminal at each location of the switch.
1. When the switch is under the Off status, connect the orange terminal to the switch (at the surface of lock nut
of the switch);
2. When the switch is under the On or electric starting (St) status, disconnect the orange terminal to the switch
(at the surface of lock nut of the switch);
3. When the switch is under the electric starting (St) status, connect the red terminal of starting engine to the
white one;
4. When the switch is under the On or electric starting (St) status, connect the black/white terminal of carburetor
to the switch (at the surface of lock nut of the switch);
5. When the switch is under the Off, On or electric starting (St) status, connect the green and blue terminals of
carburetor to the switch (at the surface of lock nut of the switch);
- 38 -
