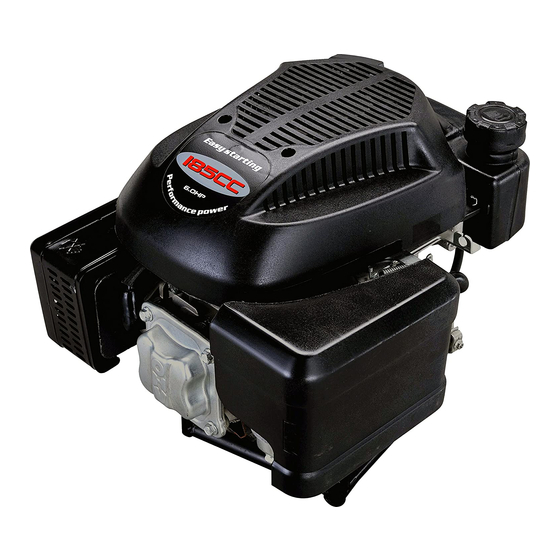

LONCIN LC1P68FA Owner's Manual
  1. Manuals
  2. Brands
  3. LONCIN Manuals
  4. Engine
  5. LC1P68FA
  6. Owner's manual

LONCIN LC1P68FA Owner's Manual

Gasoline
Hide thumbs

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the LC1P68FA and is the answer not in the manual?

Questions and answers

Related Manuals for LONCIN LC1P68FA

Summary of Contents for LONCIN LC1P68FA

  • Page 2 BEFORE OPERATING ENGINE Read entire Operating ＆ Maintenance Instructions AND the instructions for the equipment this engine powers. Failure to follow instructions could result in serious injury or death. THE OPERATING ＆ MAINTENANCE INSTRUCTIONS CONTAIN SAFETY INFORMATION TO Make you aware of hazards associated with engines Inform you of the risk of injury associated with those hazards,and Tell you how to avoid or reduce the risk of injury.
  • Page 3 HAZARD SYMBOLS AND MEANINGS...

  • Page 4: Table Of Contents

    CONTENTS CONTENTS 1. ENGINE SAFETY ………………………………………………………………………………… 2 2. COMPONENTS & CONTROL LOCATIONS …………………………………………………… 5 3. CONTROLS ………………………………………………………………………………………… 7 4. MAINTENANCE ………………………………………………………………………………… 10 5. STORAGE/TRANSPORTING …………………………………………………………………… 14 6. TROUBLESHOOTING …………………………………………………………………………… 17 7. TECHNICAL & CONSUMER INFORMATION ………………………………………………… 18 8. SPECIFICATIONS………………………………………………………………………………… 19...

  • Page 5: Engine Safety

    ENGINE SAFETY 1. ENGINE SAFETY IMPORTANT SAFETY INFORMATION Most accidents with engines can be prevented if you follow all instructions in this manual and on the engine. Some of the most common hazards are discussed below, along with the best way to protect yourself and others. Owner Responsibilities The engines are designed to give safe and dependable service if operated according to instructions.
  • Page 6 ENGINE SAFETY WARNING Starting engine creates sparking. Sparking can ignite nearby flammable gases. Explosion and fire could result. If there is natural or gas leakage in area, do not start engine. Do not use pressurized starting fluids because vapors are flammable. WARNING Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go.
  • Page 7 ENGINE SAFETY WARNING Running engines produce heat. Engine parts, especially muffler, become extremely hot. Severe thermal burns can occur on contact. Combustible debris, such as leaves, grass, brush, etc. can catch fire. Allow muffler, engine cylinder and fins to cool before touching. Remove accumulated combustibles from muffler area and cylinder area.

  • Page 8: Components & Control Locations

    COMPONENTS & CONTROL LOCATIONS 2. COMPONENTS & CONTROL LOCATIONS STARTER GRIP FUEL TANK CAP SPARK PLUG FUEL TANK OIL FILLER CAP/ CARBURETOR AIR CLEANER MUFFLER DISPTICK 1P61FA、1P65FA、1P68FA、1P70F、1P70FA FUEL TANK CAP STARTER GRIP SPARK PLUG FUEL TANK MUFFLER CARBURETOR AIR CLEANER OIL FILLERCAP/ DISPTICK 1P61FA、1P65FA...
  • Page 9 COMPONENTS & CONTROL LOCATIONS FUEL TANK CAP STARTER GRIP FUEL TANK AIR CLEANER SPARK PLUG OIL FILLERCAP/ MUFFLER DISPTICK CARBURETOR 1P65FE...

  • Page 10: Controls

    CONTROLS 3. CONTROLS 3.1 ENGINE OIL ENGINE OIL RECOMMENDATIONS Oil is a major factor affecting performance and service life. Use 4-stroke automotive detergent oil. SAE 10W-30 is recommended for general use. Other viscosities shown in the chart may be used when the average temperature in your area is within the recommended range.
  • Page 11 CONTROLS OIL FILLER CAP/DIPSTICK UPPER LOWER 1P65FE Engine oil capacities: : 0.55L (0.146 US Gal, 0.119 Imp Gal) 1P61FA、1P65FA : 0.5L (0.133 US Gal, 0.108 Imp Gal) 1P65FE 0.60L (0.16 US Gal, 0.13 Imp Gal) 1P68FA、1P70F、1P70FA : CAUTION Do not overfill. Overfilling with oil may cause: Smoking, Hard starting, Spark plug fouling, or Oil saturation of air filter.
  • Page 12 CONTROLS 3.3 STARTING ENGINE STOP IDLE FAST CHOKE 3.3.1 Control Lever FOR STARTING A COLD ENGINE: Move the Control Lever to the choke position. FOR RESTARTING A WARM ENGINE: Do not use the choke when the engine is warm. Move the control Level slightly past the idle position.

  • Page 13: Maintenance

    MAINTENANCE 4. MAINTENANCE THE IMPORTANCE OF MAINTENANCE Good maintenance is essential for safe, economical, and trouble-free operation. It will also help reduce air pollution. WARNING Improperly maintaining this engine, or failure to correct a problem before operation, can cause a malfunction in which you can be seriously hurt or killed. Always follow the inspection and maintenance recommendations and schedules in this owner’s manual.
  • Page 14 MAINTENANCE REGULAR SERVICE PERIOD Performed at every indicated First Every 3 Every 6 Every Before month or operating hour interval, month or months months year or Each use whichever comes first. 5 Hrs. or 25 Hrs. or 50 Hrs. 100 Hrs. ITEM Check level ○...
  • Page 15 MAINTENANCE OIL FILLER CAP/DIPSTICK OIL FILLER CAP/DIPSTICK SEALING WASHER DRAIN BOLT 1P61FA、1P65FA、1P68FA、1P70F、1P70FA 1P65FE REFUELING With the engine stopped, remove the fuel tank cap and check the fuel level. Refill the tank if the fuel level is low. Refuel in a well-ventilated area before starting the engine. If the engine has been running, allow it to cool.
  • Page 16 MAINTENANCE AIR CLEANER BODY FILTER AIR CLEANER FILTER, OUTER LATCH TABS COVER INSPECTION 1. Press the latch tabs on the air cleaner cover or remove the cap nuts, and remove the cover .check the filter to be sure it is clean and in good condition. 2.

  • Page 17: Storage/Transporting

    STORAGE/ TRANSPORTING 4. if the insulator is cracked or chipped. 5. Measure the spark plug electrode gap with a suitable gauge. The gap should be 0.028 - 0.031 in (0.70 - 0.80 mm). Correct the gap, if necessary, by carefully bending the side electrode. 6.
  • Page 18 STORAGE/ TRANSPORTING you can avoid fuel deterioration problems by draining the fuel tank and carburetor. ADDING A FUEL STABILIZER TO EXTEND FUEL STORAGE LIFE When adding a fuel stabilizer, fill the fuel tank with fresh gasoline. If only partially filled, air in the tank will promote fuel deterioration during storage.
  • Page 19 STORAGE/ TRANSPORTING Unless all fuel has been drained from the fuel tank, leave the fuel valve lever in the OFF position to reduce the possibility of fuel leakage. Position the equipment so the engine is level. Tilting can cause fuel or oil leakage. 7.

  • Page 20: Troubleshooting

    TROUBLESHOOTING 6. TROUBLESHOOTING ENGINE WILL NOT Possible Cause Correction START Move lever to CLOSE unless Choke OPEN. 1. Check control engine is warm. positions Engine switch OFF. Turn engine switch to ON. Out of fuel. Refuel fuel; engine stored 2. Check fuel. without treating or draining Drain fuel tank and carburetor.

  • Page 21: Technical & Consumer Information

    TECHNICAL & CONSUMER INFORMATION 7. TECHNICAL & CONSUMER INFORMATION Serial Number Location ENGINE TYPE SERIAL NUMBER Record the engine serial number in the space below. You will need this serial number when ordering parts, and when making technical or warranty inquires. Engine serial number: Maintenance Follow the maintenance schedule.

  • Page 22: Specifications

    SPECIFICATIONS 8. SPECIFICATIONS Model 1P61FA 1P65FA 1P65FE 1P70F 1P68FA 1P70FA Type Single cylinder, 4-Stroke, Forced Air Cooling, OHV Rated. power(kW/3600rpm) Max. torque (N·m/rpm) 7/2500 8.3/2500 7/2500 9/2500 9.5/2500 10.5/2500 Fuel consumption (g/kW·h) ≤395 Idle speed 1800±150 rpm Bore X Stroke(mm) 61×48 65×48 65×42...
