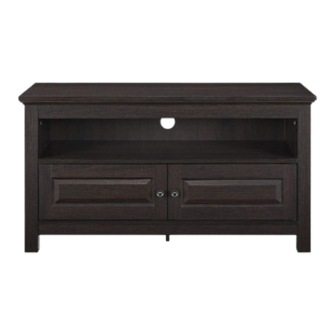

Walker Edison WQ44CS Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Walker Edison Manuals
  4. Indoor Furnishing
  5. WQ44CS
  6. Assembly instructions manual

Walker Edison WQ44CS Assembly Instructions Manual

Hide thumbs Also See for WQ44CS:

Advertisement

Quick Links

Download this manual
Copyright © 2008, by Walker Edison Furniture Co., LLC. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the WQ44CS and is the answer not in the manual?

Questions and answers

Related Manuals for Walker Edison WQ44CS

Summary of Contents for Walker Edison WQ44CS

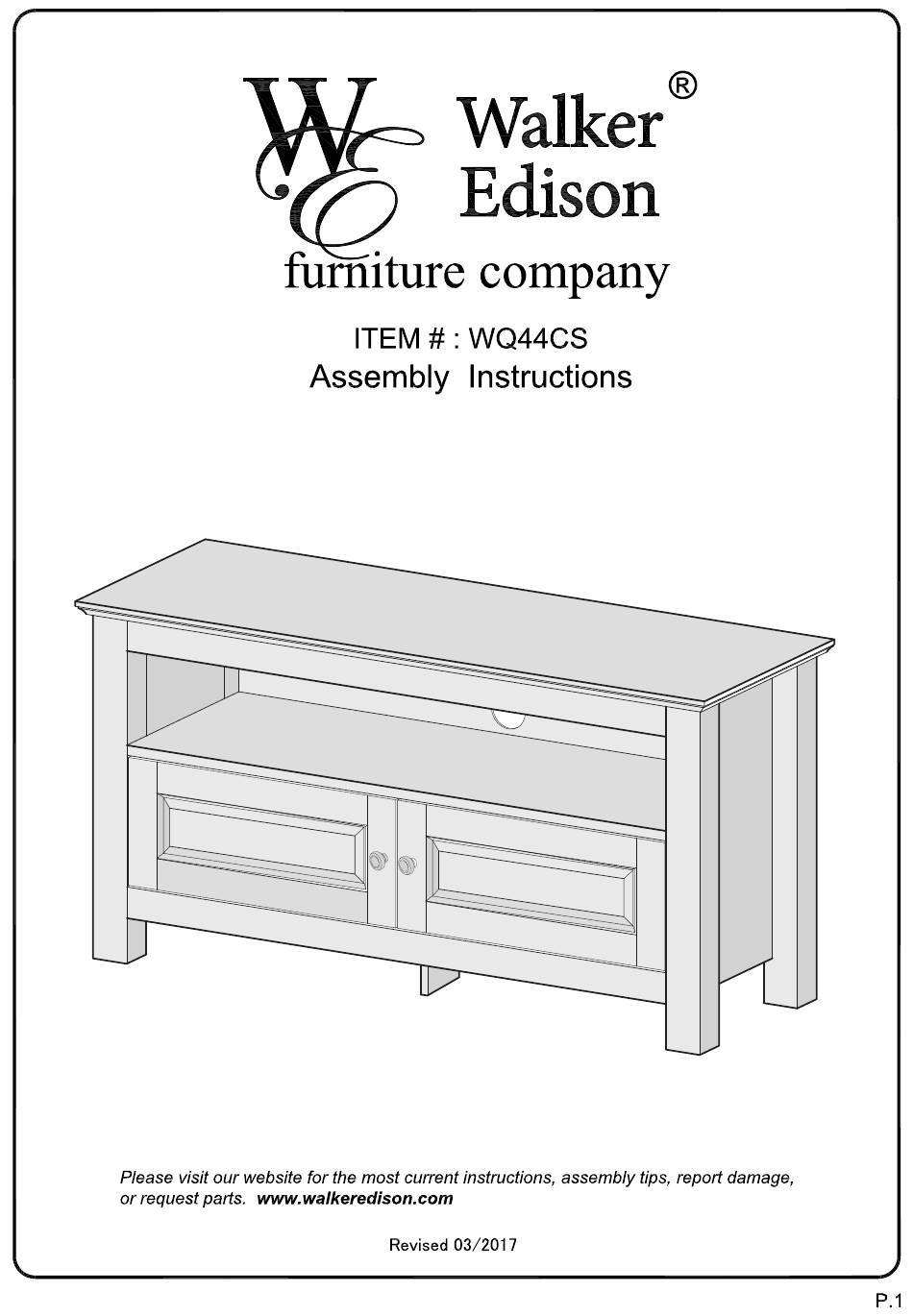

  • Page 1 Copyright © 2008, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 3 Copyright © 2009, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 5 Screw cam bolts (B) into stand top (1). Screw cam bolts (B) into panel (2). Insert dowels (A) into slat (16). Copyright © 2009, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 6 Attach support leg (15) to panel (2) using long bolts (D). Tighten long bolts (D) with wrench (R). Screw cam bolts (B) into panels (2,3,4). Insert dowels (A) into panels (2,3,4). Copyright © 2009, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 7 Insert dowels (A) into shelf (9), panel (10) and slat (11). Screw cam bolts (B) into shelf (9). Attach door stoppers (E) to shelf (9) using medium screws (F). Copyright © 2009, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 8 (3) and tighten with a screwdriver. Attach legs (7,8) to panel (4) using cam bolts and dowels as guides. Insert cam locks (C) into panel (4) and tighten with a screwdriver. Copyright © 2009, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 9 (10) and tighten with a screwdriver. Attach shelf (9) to panel (10) using cam bolts and dowels as guides. Insert cam locks (C) into panel (10) and tighten with a screwdriver. Copyright © 2009, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 10 Two cam locks (C) will be inserted into panel (2) and into shelf (9). Slide back panel (12) into place. Back panel (12) will fit into the grooves of panels (2,3). Copyright © 2009, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 11 Insert cam locks (C) into panel (2), shelf (9) and slat (11). Attach the panel (4) assembly to the frame assembly using cam bolts and dowels as guides. Tighten cam locks (C) with a screwdriver. Copyright © 2009, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 12 Insert cam locks (C) into the frame assembly. Attach top (1) to the frame assembly using cam bolts and dowels as guides. Tighten cam locks (C) with a screwdriver. Cover all visible cam locks (C) with stickers (T) as desired. Copyright © 2009, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 13 (13,14) using small screws (K). Attach door hinge (M) to door (13) using small screws (K). Attach door hinge (L) to door (14) using small screws (K). Copyright © 2009, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 14 (L) to door (13) using small screws (K). Insert door hinge (M) into right bottom plastic pivot (N). Slide door (14) into place. Attach door hinge (M) to door (14) using small screws (K). Copyright © 2009, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 15 Secure back panel (12) to the frame assembly using plastic wedges (P) and large screws (Q). Copyright © 2009, by Walker Edison Furniture Co., LLC. All rights reserved.
