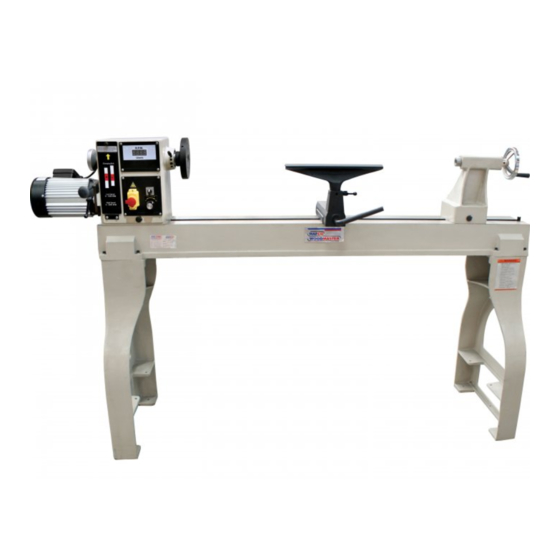

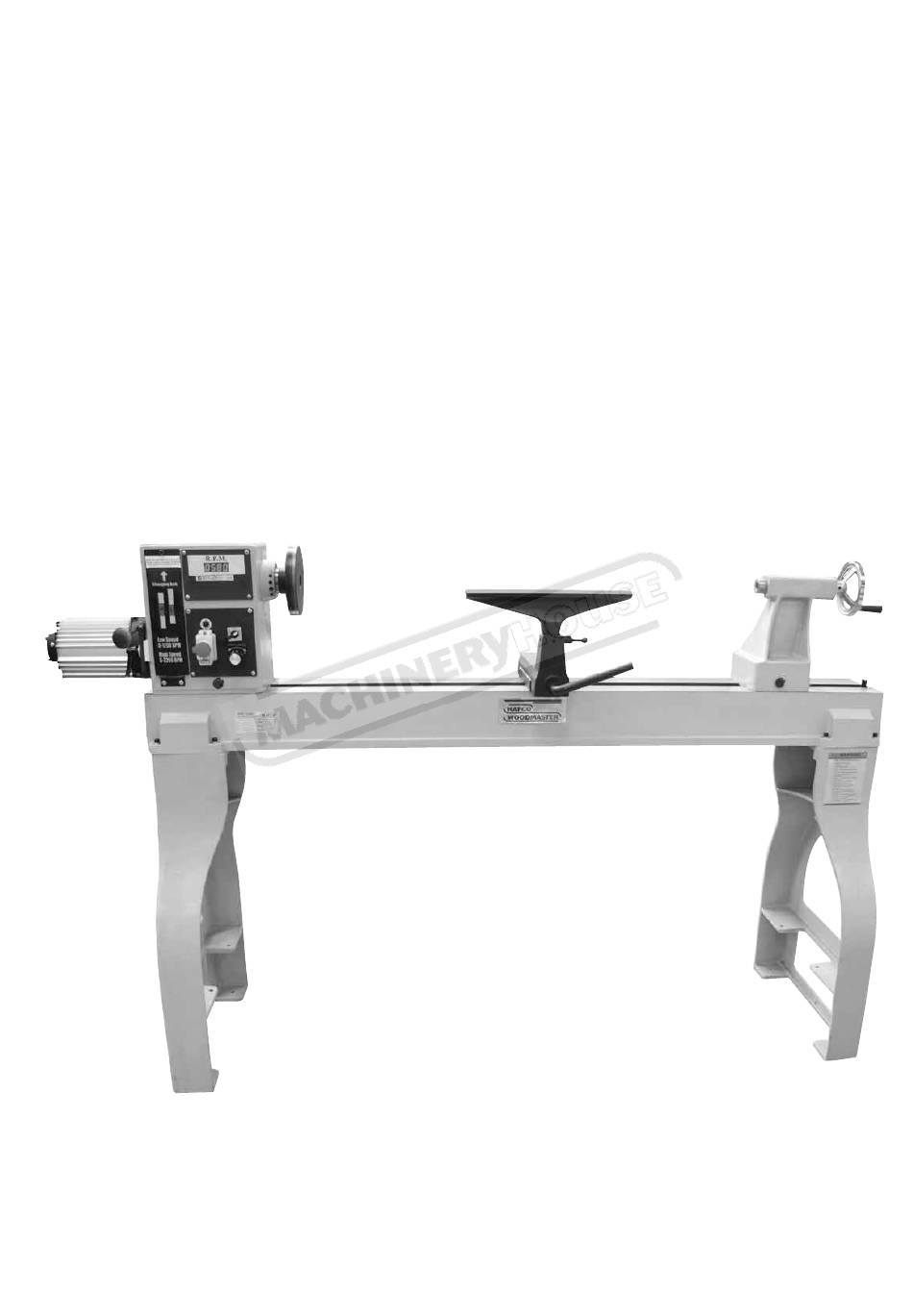

- Page 1 Instructions Manual for WL-46A (W387) 19/11/2019 INSTRUCTION MANUAL WL-46A Electronic Variable Speed Wood Lathe 462mm Swing x 1194mm Between Centres W387...
- Page 2 Instructions Manual for WL-46A (W387) 19/11/2019 W387 WL-46A 23/10/19 ( DELTA MC-300 INVERTER ) We reserve the right of the amendment addition and deletion of the specifications, explanatory wording, etc. printed in this manual...
- Page 3 Instructions Manual for WL-46A (W387) 19/11/2019 WOODLATHE MANUAL This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the symbols to the right.
- Page 4 Instructions Manual for WL-46A (W387) 19/11/2019 WOODLATHE MANUAL 12. USE THE RIGHT MACHINE. Don’t force a machine or an attachment to do a job for which it was not designed. Damage to the machine and/or injury may result. 13. USE RECOMMENDED ACCESSORIES. The use of accessories and attachments not recommended by Delta may cause damage to the machine or injury to the user.
- Page 5 Instructions Manual for WL-46A (W387) 19/11/2019 WOODLATHE MANUAL according to the instructions. 2. OBTAIN ADVICE from your supervisor, instructor, or another qualified person if you are not familiar with the operation of this machine. 3. FOLLOW ALL WIRING CODES and recommended electrical connections.
- Page 6 Instructions Manual for WL-46A (W387) 19/11/2019 WOODLATHE MANUAL THE “OFF” POSITION to prevent unauthorized use. 24. ADDITIONAL INFORMATION regarding the safe and proper operation of power tools. All grounded, cord-connected machines: In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.
- Page 7 Instructions Manual for WL-46A (W387) 19/11/2019 WOODLATHE MANUAL Contents of the Shipping Containers 1. Lathe 1. Tailstock 1. Headstock 1. Tool Rest Body 1. Owner’s Manual & Warranty Card Fig.1 Accessory Package Box 1. Live Center 1. Spur Center 1. Index Pin 1.
- Page 8 Instructions Manual for WL-46A (W387) 19/11/2019 WOODLATHE MANUAL Secure tool rest (A, Fig. 3) to tool rest body (B, Fig. 3) by tightening handle(C, Fig. 3). Fig. 3 Fig. 4 CONTROLS & FEATURES 1. Headstock Lock Handle: (D, Fig.4) Locks head in position. Unlock handle to position the head along lathe bed.
- Page 9 Instructions Manual for WL-46A (W387) 19/11/2019 WOODLATHE MANUAL clockwise direction, and tighten two set screws. Remove the faceplate by loosening two set screws. Push in headstock spindle lock and use the provided rod in faceplate holes to unthread the faceplate.
- Page 10 Instructions Manual for WL-46A (W387) 19/11/2019 WOODLATHE MANUAL speed, where as the “Low” speed range (100-1200) will provide maximum torque. 4. Lower the tensioning handle so that the weight of the motor provides the needed tension and tighten the locking handle.
- Page 11 Instructions Manual for WL-46A (W387) 19/11/2019 WOODLATHE MANUAL The cutting technique, by virtue of faster wood removal and a cleaner surface, is the preferred method. CENTERING THE WORK Wood stock for any spindle turning should be approximately square, and the ends should be square with the sides.
- Page 12 Instructions Manual for WL-46A (W387) 19/11/2019 WOODLATHE MANUAL TOOL REST POSITION Mount the tool rest in place about 1/8” away from the work and 1/8” above the work centerline (Fig. 16.) This position may be varied to suit the work and the operator.
- Page 13 Instructions Manual for WL-46A (W387) 19/11/2019 WOODLATHE MANUAL Fig.19 Fig.20 POSITION OF HANDS While turning, the hand that holds the tool handle should be in a natural position. This hand provides the leverage for the too l by either moving in toward the chisel or moving out.
- Page 14 Instructions Manual for WL-46A (W387) 19/11/2019...
- Page 15 Instructions Manual for WL-46A (W387) 19/11/2019 WOODLATHE MANUAL Problem Possible Cause Solution 1. Work piece warped, out of Correct problem round, has major flaw, or planing, bandsawing, or was improperly prepared for scrap workpiece turning together Excessive Vibration. 2. Worn spindle bearings 2.
- Page 16 Instructions Manual for WL-46A (W387) 19/11/2019...
- Page 17 Instructions Manual for WL-46A (W387) 19/11/2019...
- Page 18 Instructions Manual for WL-46A (W387) 19/11/2019...
