2.
Connect the positive wire from the power source to the positive terminal on the
terminal block.
Figure 2.8
3.
Connect the negative wire from the power source to the negative terminal on
the terminal block.
RUGGEDCOM RS900F
Installation Manual, 02/2020, C79000-G8976-1350-04
All manuals and user guides at all-guides.com
2
1
3
Positive Terminal
1
Negative Terminal
2
Surge Ground Terminal
3
Braided Ground Cable
4

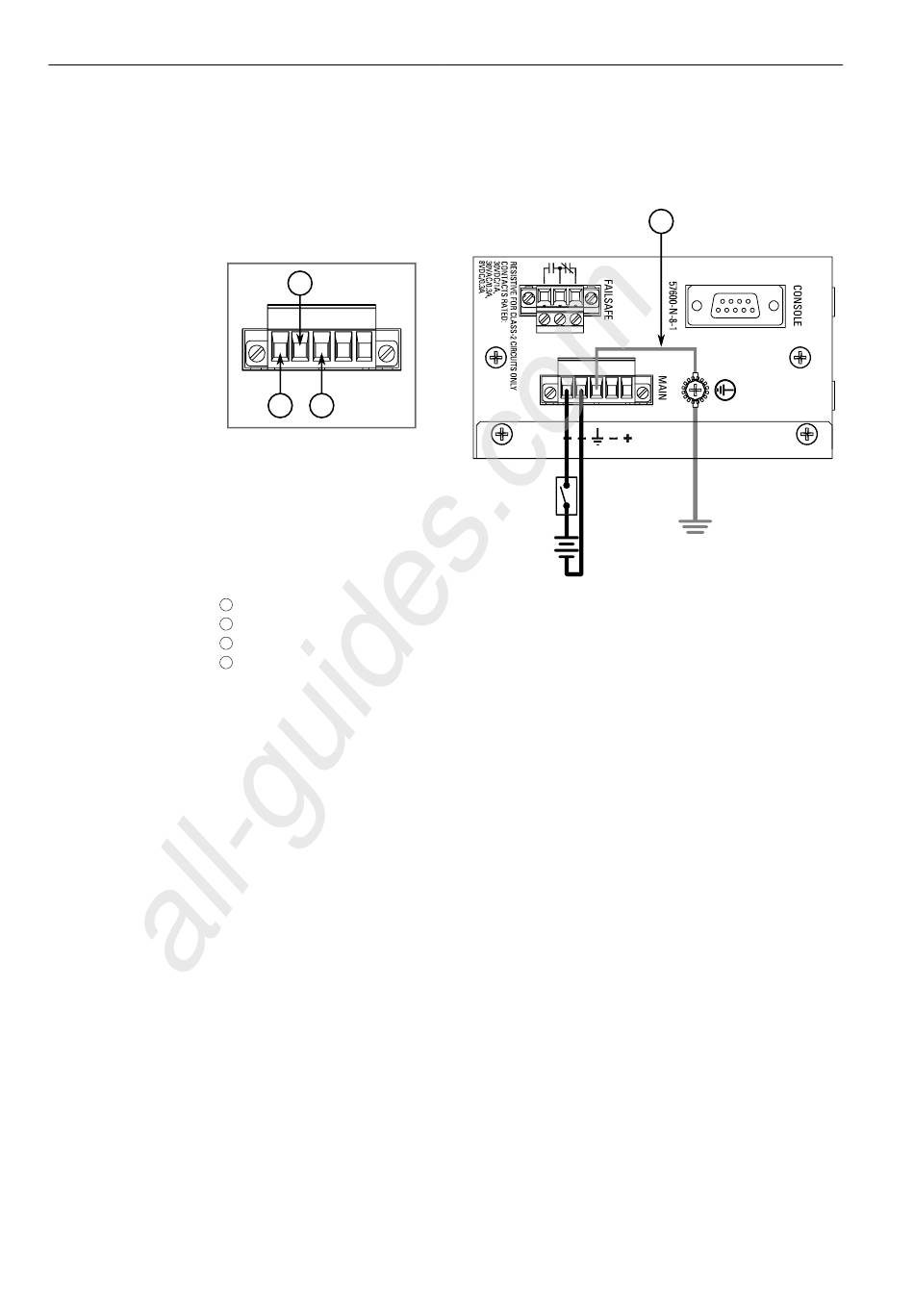

Terminal Block Wiring – Single DC Power Supply Inputs
Installing the Device
2.5.2 Connecting Low DC Power
