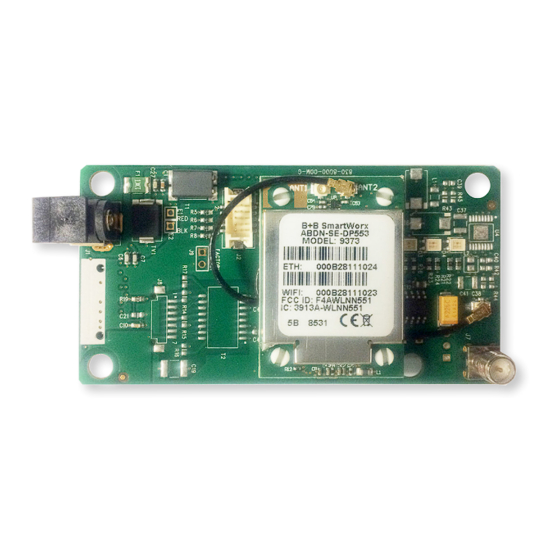

AirborneM2M™ Dual Band (2.4 GHz, 5 GHz)
Wi-Fi Serial Server – Embedded OEM Board
Model BB-ABDN-SE-DP553
AirborneM2M Enterprise Wi-Fi boards are built for networking equipment in
an array of machine-to-machine (M2M) applications. The small compact form
factor makes it easy and cost-effective to integrate into your solution.
Dual-Band Wi-Fi – Model BB-ABDN-SE-DP553, Wi-Fi Serial Server board,
establishes serial to wireless connections over both 2.4 GHz and 5 GHz
bands. Whenever the 2.4 GHz airspace is overcrowded with competing
wireless transmissions, it can be switched over to the 5 GHz band to keep
data flowing.
Enterprise Class Security – Security protocols are important to mission-
critical wireless M2M applications. AirborneM2M multi-layered security
approach addresses the requirements of Enterprise-class networks and
corporate IT departments. Advanced security features include wireless
security (801.11i/WPA2 Enterprise); network security (EAP authentication
and certificate support); communication security (SSH functionality and fully
encrypted data tunnels); and device security (multi-level encryption capability
to protect configuration data).
orders@advantech-bb.com
support@advantech-bb.com
FEATURES / BENEFITS
• Serial to 802.11a/b/g/n dual band (2.4 GHz, 5 GHz)
• Transmit data rate: up to 65 Mbps
• Wide operating temperature range: -20 to +85 °C
• Open board design
• USA, Canada, CE / EU approvals
• Enterprise Class wireless security (WPA2-Enterprise, WPA, WEP, EAP)
• AirborneM
management and control application software
• 2.4 / 5 GHz, 2 dBi, RP-SMA omni-directional antenna included
ORDERING INFORMATION
MODEL NUMBER
BB-ABDN-SE-DP553 *
* Included with product:
BB-CP-SDS-NA – Power cord, USA
BB-PS-WDS – 120/240 VAC, 5 VDC, 10 W, 2.1 mm power supply
BB-ACH2-DBAT-DP002 – 2 DBi, 2.4/5 GHz antenna, RP-SMA
Serial Cable Assembly
ACCESSORIES – sold separately
BB-ACH2-DBAT-DP003 – 3.8/5.5 dBi, 2.4/5 GHz, RP-SMA antenna (alternative antenna)
MECHANICAL DIAGRAM
Dimensions = mm [in]
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
www.advantech-bb.com
M Management Center (AMC) device discovery,
2
DESCRIPTION
Commercial Wi-Fi Serial Server
Embedded OEM board module
802.11a/b/g/n
Dual band (2.4 GHz, 5 GHz)
(1) RS-232/422/485 serial port
All product specifications are subject to change without notice.
