Advantech BB-VESP211-232 Quick Start Manual

6
Troubleshooting
The primary check for correct operation is the
device LEDs.
For advanced set up information, see the "HELP"
section on the right hand side of each page within the
Vlinx™ Manager.
Select Diagnostic for a check of communications
status with attached VESP211x device, and then
select the device for which the communications
check is desired. A report of reply times and ping
statistics is generated and can be saved.
Note: you can also send your configuration files to
Advantech B+B SmartWorx Technical Support for review.
Reset Mode Switch
Mode Switch Action
Press and Hold in for
Resets the unit.
0-2 seconds.
Puts unit in Console Mode.
Press and Hold in for
The Ready LED turns OFF and
2-10 seconds.
the Serial LED turn On Solid.
Reloads Factory Defaults.
Press and Hold in for
Both Serial and Ready LEDs
more than 10 seconds.
turn On Solid.
7
UL Installation Instruction
(UL File E353510)
This product is rated to 80°C; if ambient is above 60°C,
this product should be placed in a Restricted Access
Area.
Ce produit est évalué à 80ºC, si la température
ambiante est supérieure à 60ºC, ce produit doit être
placé dans une zone d'accès restreint."
Documentation Number: 20BB710-10571-00_r4_BB-VESP211x_5119qsg

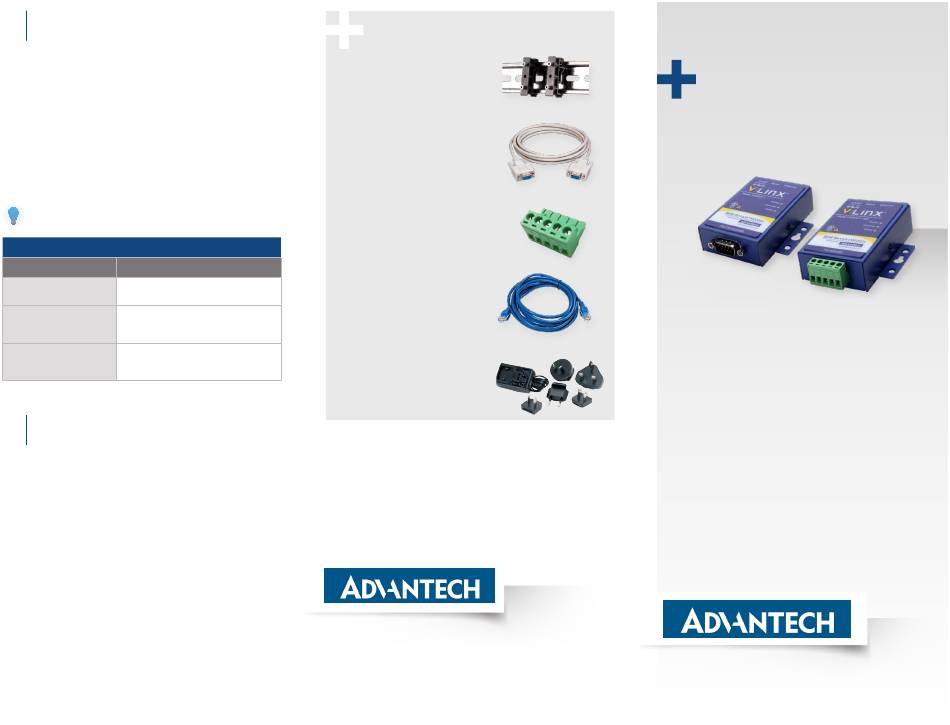

DIN Rail Adapter
Brackets
# BB-DRAD35
Null Modem DTE-DCE
Crossover Cable
# BB-232NM9
Replacement
Terminal Block
# BB-TBKT2
Result
Ethernet Cables
12Vdc Power Supply
# BB-SMI6-12-V-P5
Note: one included with server.
www.advantech.com | E-mail: support@advantech-bb.com
Recommended Accessories
www.advantech.com
707 Dayton Road | PO Box 1040 | Ottawa, IL 61350
Phone: 10(815) 433-5100 | Fax: 10(815) 433-5109
QUICK START
GUIDE

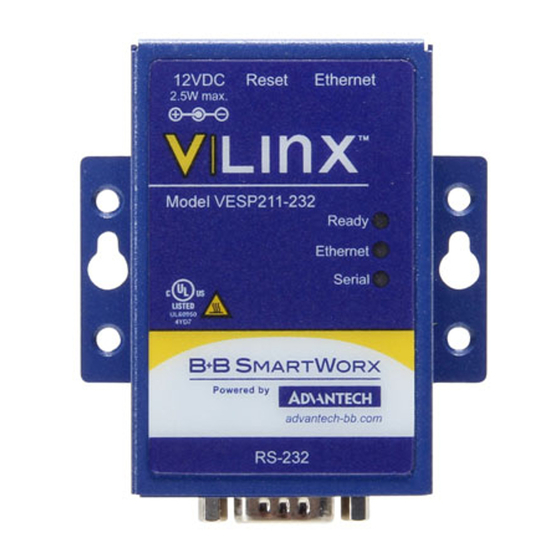

Models: BB-VESP211, BB-VESP211-232,
BB-VESP211-485
Ultra Compact
Ethernet to Serial Servers
Before you begin, make
sure you have the following:
+ VESP211x product
+ CD - with software and manuals
+ 12Vdc wall adapter power supply
+ Optional items, not included:
+ Ethernet cable(s)
+ Null modem cable(s)
+ Mounting accessories kit
www.advantech.com
Fast and easy on the web:
