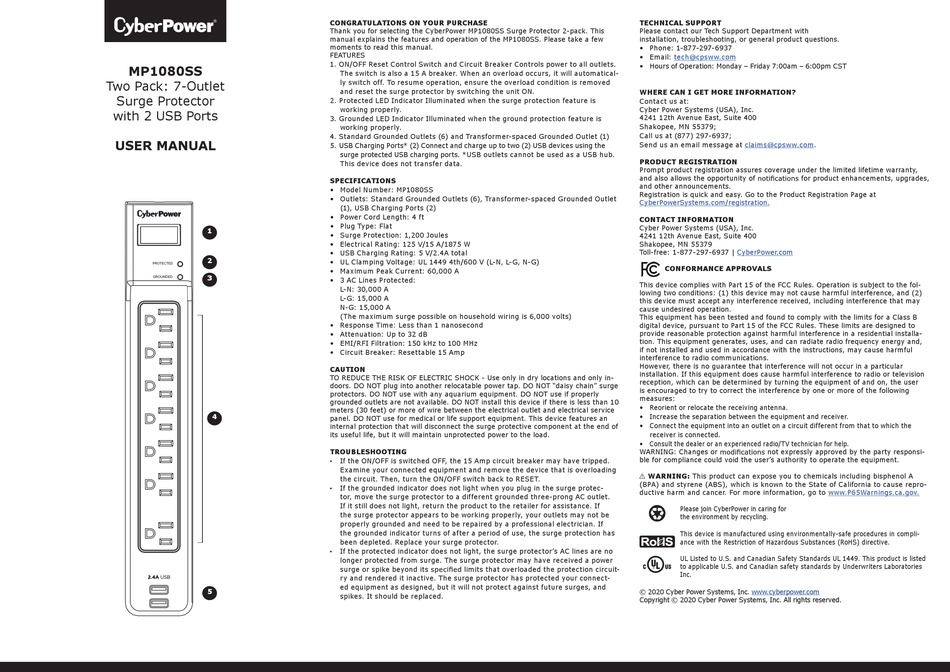

CyberPower MP1080SS User Manual

MP1080SS
Two Pack: 7-Outlet
Surge Protector
with 2 USB Ports
USER MANUAL
1
2
PROTECTED
3
GROUNDED
4
5
CONGRATULATIONS ON YOUR PURCHASE
Thank you for selecting the CyberPower MP1080SS Surge Protector 2-pack. This
manual explains the features and operation of the MP1080SS. Please take a few
moments to read this manual.

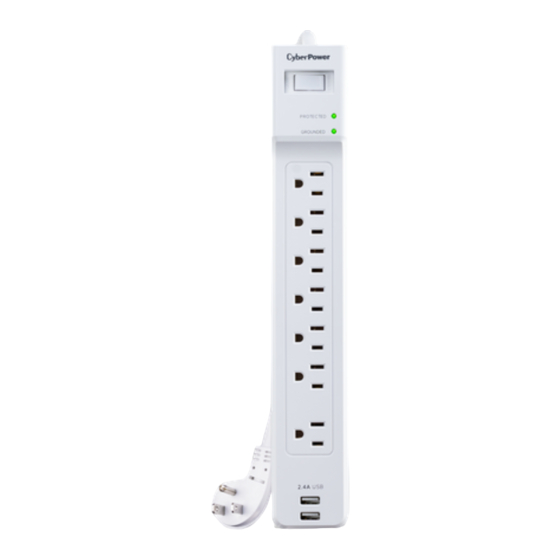

FEATURES
1. ON/OFF Reset Control Switch and Circuit Breaker Controls power to all outlets.
The switch is also a 15 A breaker. When an overload occurs, it will automatical-
ly switch off. To resume operation, ensure the overload condition is removed
and reset the surge protector by switching the unit ON.
2. Protected LED Indicator Illuminated when the surge protection feature is
working properly.
3. Grounded LED Indicator Illuminated when the ground protection feature is
working properly.
4. Standard Grounded Outlets (6) and Transformer-spaced Grounded Outlet (1)
5. USB Charging Ports* (2) Connect and charge up to two (2) USB devices using the
surge protected USB charging ports. *USB outlets cannot be used as a USB hub.
This device does not transfer data.
SPECIFICATIONS
• Model Number: MP1080SS
• Outlets: Standard Grounded Outlets (6), Transformer-spaced Grounded Outlet
(1), USB Charging Ports (2)
• Power Cord Length: 4 ft
• Plug Type: Flat
• Surge Protection: 1,200 Joules
• Electrical Rating: 125 V/15 A/1875 W
• USB Charging Rating: 5 V/2.4A total
• UL Clamping Voltage: UL 1449 4th/600 V (L-N, L-G, N-G)
• Maximum Peak Current: 60,000 A
• 3 AC Lines Protected:
L-N: 30,000 A
L-G: 15,000 A
N-G: 15,000 A
(The maximum surge possible on household wiring is 6,000 volts)
• Response Time: Less than 1 nanosecond
• Attenuation: Up to 32 dB
• EMI/RFI Filtration: 150 kHz to 100 MHz
• Circuit Breaker: Resettable 15 Amp
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK - Use only in dry locations and only in-
doors. DO NOT plug into another relocatable power tap. DO NOT "daisy chain" surge
protectors. DO NOT use with any aquarium equipment. DO NOT use if properly
grounded outlets are not available. DO NOT install this device if there is less than 10
meters (30 feet) or more of wire between the electrical outlet and electrical service
panel. DO NOT use for medical or life support equipment. This device features an
internal protection that will disconnect the surge protective component at the end of
its useful life, but it will maintain unprotected power to the load.
TROUBLESHOOTING
▪ If the ON/OFF is switched OFF, the 15 Amp circuit breaker may have tripped.
Examine your connected equipment and remove the device that is overloading
the circuit. Then, turn the ON/OFF switch back to RESET.
▪ If the grounded indicator does not light when you plug in the surge protec-
tor, move the surge protector to a different grounded three-prong AC outlet.
If it still does not light, return the product to the retailer for assistance. If
the surge protector appears to be working properly, your outlets may not be
properly grounded and need to be repaired by a professional electrician. If
the grounded indicator turns of after a period of use, the surge protection has
been depleted. Replace your surge protector.
▪ If the protected indicator does not light, the surge protector's AC lines are no
longer protected from surge. The surge protector may have received a power
surge or spike beyond its limits that overloaded the protection circuit-
ry and rendered it inactive. The surge protector has protected your connect-
ed equipment as designed, but it will not protect against future surges, and
spikes. It should be replaced.
TECHNICAL SUPPORT
Please contact our Tech Support Department with
installation, troubleshooting, or general product questions.
• Phone: 1-877-297-6937
• Email: tech@cpsww.com
• Hours of Operation: Monday – Friday 7:00am – 6:00pm CST
WHERE CAN I GET MORE INFORMATION?
Contact us at:
Cyber Power Systems (USA), Inc.
4241 12th Avenue East, Suite 400
Shakopee, MN 55379;
Call us at (877) 297-6937;
Send us an email message at claims@cpsww.com.
PRODUCT REGISTRATION
Prompt product registration assures coverage under the limited lifetime warranty,
and also allows the opportunity of for product enhancements, upgrades,
and other announcements.
Registration is quick and easy. Go to the Product Registration Page at
CyberPowerSystems.com/registration.
CONTACT INFORMATION
Cyber Power Systems (USA), Inc.
4241 12th Avenue East, Suite 400
Shakopee, MN 55379
Toll-free: 1-877-297-6937 | CyberPower.com
CONFORMANCE APPROVALS
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment of and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or not expressly approved by the party responsi-
ble for compliance could void the user's authority to operate the equipment.
I WARNING: This product can expose you to chemicals including bisphenol A
(BPA) and styrene (ABS), which is known to the State of California to cause repro-
ductive harm and cancer. For more information, go to
Please join CyberPower in caring for
the environment by recycling.
This device is manufactured using environmentally-safe procedures in compli-
ance with the Restriction of Hazardous Substances (RoHS) directive.
UL Listed to U.S. and Canadian Safety Standards UL 1449. This product is listed
to applicable U.S. and Canadian safety standards by Underwriters Laboratories
Inc.
© 2020 Cyber Power Systems, Inc. www.cyberpower.com
Copyright © 2020 Cyber Power Systems, Inc. All rights reserved.
www.P65Warnings.ca.gov.
