CyberPower MP1045SW User Manual

MP1045SW
Surge Protector + USB
Combo Pack
User Manual
CONGRATULATIONS ON YOUR PURCHASE

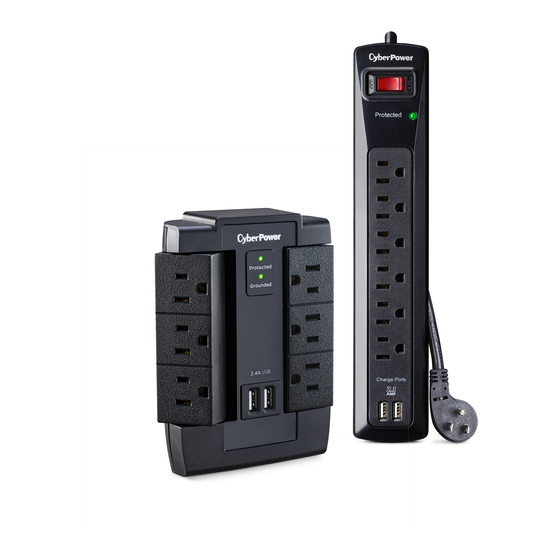

Thank you for selecting the CyberPower MP1045SW Surge Protector + USB
Combo Pack. The information contained in this brochure explains the features and
operation of the MP1045SW Surge Protector + USB Combo Pack. Please take a
few moments to read this manual.
8-Outlet Surge Protector
(6 AC & 2 USB ports)
P600WSURC1
1
2
4
3
5
8-Outlet Surge Protector
(6 AC & 2 USB ports)
P604U
1
2
3
2.4
AMP
4
FEATURES
1. Surge Protected Indicator
Illuminated when the surge protection feature is working properly.
2. Ground Indicator LED
Illuminated when the Ground protection feature is working properly.
3. Six Standard Outlets
4. Pivoting Outlets
Pivoting outlets for ease of use and convenience
5. USB Charging Ports*
Connect and charge up to two (2) USB devices using the surge protected USB powering ports.
*USB outlets cannot be used as a USB hub. This device does not transfer data.
SPECIFICATIONS
• Model Number: P600WSURC1
• Outlets: 6 Standard Outlets, 2 USB Charger Ports
• Surge Protection: 1200 Joules
• Electrical Rating: 125V/15A/1875W
• USB charger rating: 5V/2.1A total
• UL Clamping Voltage: UL 1449 3rd/400V (H-N, N-G), 500(H-G)
• Maximum Peak Current: 60,000A
• 3 AC Lines Protected: H-N: 30,000A, H-G: 15,000A, N-G: 15,000A;
(The maximum surge possible on household Wiring is 6,000 volts)
• Response Time: Less than 1 nanosecond
• Attenuation: Up to 32dB
• EMI/RFI Filtration: 150 kHz to 100 MHz
TROUBLESHOOTING
If the Grounded indicator does not light when you plug in the surge protector,move the surge
protector to a different grounded three-prong AC outlet. If it still does not light, return the product
to dealer for assistance. If the surge protector proves to be working properly, your outlets may not
be properly grounded and should be inspected by a professional electrician.
If the Grounded indicator turns off after a period of use, the surge protection has been depleted.
Replace your surge protector.
If the Protected indicator does not light, the surge protector's AC line is no longer protected from
surge. Replace the surge protector. The surge protector may have received a power surge or spike
beyond its specified limits that overloaded the protection circuitry and rendered it inactive. The
surge protector has protected your connected equipment but it will not protect against future
surges and spikes.
FEATURES
1. ON/OFF Reset Control Switch and Circuit Breaker
Controls power to all outlets. The switch is also a 15A breaker. When an overload occurs, it will
automatically switch off. To resume operation, ensure the overload condition is removed and
reset the surge protector by switching the unit ON.
2.Surge Protected Indicator
Illuminated when the surge protection is working properly.
3. Six Standard Outlets
4. USB Charging Ports*
Connect and charge up to two (2) USB devices using the surge protected USB charging ports.
*USB outlets cannot be used as a USB hub. This device does not transfer data.
SPECIFICATIONS
• Model Number: P604U
• Outlets: 6 Standard Outlets, 2 USB Charger Ports
• Surge Protection: 900 Joules
• Electrical Rating: 125V/15A/1875W
• USB charger rating 5V/2.4A total
• UL Clamping Voltage: UL 1449 3rd/400V(L-N,L-G,N-G)
• Maximum Peak Current: 45,000A
• 3 AC Lines Protected: L-N:15,000A, L-G:15,000A, N-G:15,000A
(The maximum surge possible on household wiring is 6,000
volts)
• Response Time: Less than 1 nanosecond
• Attenuation: Up to 32dB
• EMI/RFI Filtration: 150 kHz to 100 MHz
• Circuit Breaker: Resettable 15 Amp
TROUBLESHOOTING
If the ON/OFF is switched off, the 15 AMP circuit breaker may have tripped. Examine your
connected equipment and remove the device that is overloading the circuit. Then, turn the ON/OFF
switch back to RESET.
If the Protected indicator does not light, the surge protector's AC line is no longer protected from
surge. Replace the surge protector. The surge protector may have received a power surge or spike
beyond its specified limits that overloaded the protection circuitry and rendered it inactive. The
surge protector has protected your connected equipment but it will not protect against future
surges and spikes.
