CyberPower MP1075WS User Manual

Surge Protector + USB Surge Protector + USB
Combo 2 Pack Combo 2 Pack
MP1075WS MP1075WS
USER MANUAL
CONGRATULATIONS ON YOUR PURCHASE
Thank you for selecting the CyberPower MP1075WS Surge
Protector + USB Combo Pack. This manual explains the features
and operation of the products contained in the MP1075WS Surge
Protector + USB Combo Pack. Please take a few moments to read
this manual.
Copyright © 2020 Cyber Power Systems (USA), Inc. All rights reserved.

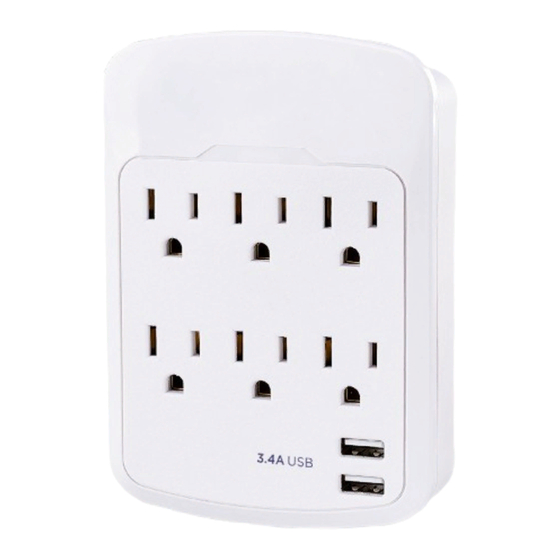

6-Outlet Wall Tap Surge Protector
with 2 USB Ports
P600WUHD
1
2
3.4A USB
4-Outlet Surge Protector
with 2 USB Ports
P403URC1
1
2
2.4A USB
3
FEATURES
1. Standard Grounded Outlets (6)
2. USB Charging Ports* (2)
Connect and charge up to two (2) USB devices using the surge protected
USB charging ports.
*USB outlets cannot be used as a USB hub. This device does not
transfer data.
SPECIFICATIONS
• Model Number: P600WUHD
• Outlets: Standard Grounded Outlets (6), USB Charging Ports (2)
• USB Charging Rating: 5 V/3.4A shared
• Surge Protection: 500 Joules
• Electrical Rating: 125 V/15 A/1875 W
• UL Clamping Voltage: UL 1449 3rd/800 V (H-N),
• Maximum Peak Current: 15,000 A
• Attenuation: Up to 32 dB
• EMI/RFI Filtration: 150 kHz to 100 MHz
FEATURES
1. ON/OFF Reset Control Switch and Circuit Breaker
Controls power to all outlets. The switch is also a 15 A breaker. When an
overload occurs, it will automatically switch o . To resume operation,
ensure the overload condition is removed and reset the surge protector
by switching the unit ON.
2. Standard Grounded Outlets (4)
3. USB Charging Ports* (2)
Connect and charge up to two (2) USB devices using the surge protected
USB charging ports.
*USB outlets cannot be used as a USB hub. This device does not
transfer data.
SPECIFICATIONS
• Model Number: P403URC1
• Outlets: Standard Grounded Outlets (4), USB Charging Ports (2)
• Power Cord Length: 3 ft
• Plug Type: Low Profile
• Surge Protection: 500 Joules
• Electrical Rating: 125 V/15 A/1875 W
• USB Charging Rating: 5 V/2.4A total
• UL Clamping Voltage: UL 1449 4th/800 V (L-N)
• Maximum Peak Current: 15,000 A
• 1 AC Line Protected: L-N: 15,000 A (The maximum surge possible on
household wiring is 6,000 volts)
• Response Time: Less than 1 nanosecond
• Circuit Breaker: Resettable 15 Amp
TROUBLESHOOTING
▪ If the ON/OFF is switched OFF, the 15 Amp circuit breaker may have
tripped. Examine your connected equipment and remove the device that
is overloading the circuit. Then, turn the ON/OFF switch back to RESET.
