CyberPower MP1055WWSS User Manual

Surge Protector + USB Surge Protector + USB
Combo 4 Pack Combo 4 Pack
MP1055WWSS MP1055WWSS
USER MANUAL
CONGRATULATIONS ON YOUR PURCHASE
Thank you for selecting the CyberPower MP1055WWSS Surge
Protector + USB Combo Pack. This manual explains the features
and operation of the MP1055WWSS Surge Protector + USB
Combo Pack. Please take a few moments to read this manual.
Copyright © 2019 Cyber Power Systems (USA), Inc. All rights reserved.

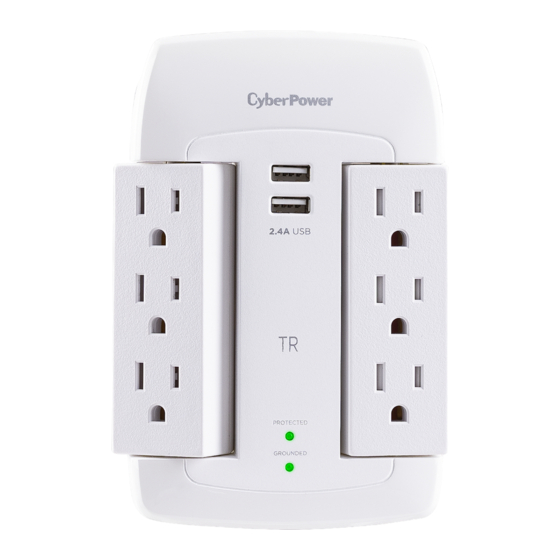

6-Outlet Surge Protector
with 2 USB Ports
P6WSU
5
1
4
2
3
7-Outlet Surge Protector
with 2 USB Ports
P704U
1
2
PROTECTED
3
GROUNDED
4
2.4A USB
5
FEATURES
1. Six Tamper-resistant (TR) Standard Grounded Outlets
2. Surge Protected Indicator
Illuminated when the surge protection feature is working properly.
3. Ground Indicator LED
Illuminated when the ground protection feature is working properly.
4. Pivoting Outlets
Pivoting outlets for ease of use and convenience, fits standard-sized plugs.
5. USB Charging Ports* (2)
Connect and charge up to two (2) USB devices using the surge protected USB
charging ports.
*USB outlets cannot be used as a USB hub. This device does not transfer data.
SPECIFICATIONS
• Model Number: P6WSU
• Outlets: 6 Standard Grounded Outlets, 2 USB Charging Ports
• Surge Protection: 1,200 Joules
• Electrical Rating: 125 V/15 A/1875 W
• USB Charger Rating: 5 V/2.4A total
• UL Clamping Voltage: UL 1449 4th/600 V (L-N, L-G, N-G)
• Maximum Peak Current: 60,000 A
• 3 AC Lines Protected: L-N: 30,000 A, L-G: 15,000 A, N-G: 15,000 A
• Response Time: Less than 1 nanosecond
• Attenuation: Up to 32 dB
• EMI/RFI Filtration: 150 kHz to 100 MHz
TROUBLESHOOTING
▪ If the grounded indicator does not light when you plug in the surge protector, move
the surge protector to a di erent grounded three-prong AC outlet. If it still does not
light, return the product to the retailer for assistance. If the surge protector appears to
be working properly, your outlets may not be properly grounded and need to be
repaired by a professional electrician. If the grounded indicator turns o after a period
of use, the surge protection has been depleted. Replace your surge protector.
▪ If the protected indicator does not light, the surge protector's AC lines are no longer
protected from surge. The surge protector may have received a power surge or spike
beyond its specified limits that overloaded the protection circuitry and rendered it
inactive. The surge protector has protected your connected equipment as designed,
but it will not protect against future surges, and spikes. It should be replaced.
▪ This product is designed with Tamper-Resistant (TR) safety features. Resistance
plugging into outlets may be experienced during first use.
For more information, assistance, and troubleshooting:
Phone: 1-877-297-6937 | Website: www.CPSWW.com/TR
FEATURES
1. ON/OFF Reset Control Switch and Circuit Breaker
Controls power to all outlets. The switch is also a 15 A breaker. When an overload
occurs, it will automatically switch o . To resume operation, ensure the overload
condition is removed and reset the surge protector by switching the unit ON.
2. Surge Protected Indicator
Illuminated when the surge protection feature is working properly.
3. Ground Indicator LED
Illuminated when the ground protection feature is working properly.
4. Standard Grounded Outlets (6) and Transformer-spaced Grounded Outlet (1)
5. USB Charging Ports* (2)
Connect and charge up to two (2) USB devices using the surge protected USB
charging ports.
*USB outlets cannot be used as a USB hub. This device does not transfer data.
SPECIFICATIONS
• Model Number: P704U
• Outlets: 6 Standard and 1 Transformer-spaced Grounded Outlets, 2 USB Charging Ports
• Plug Type: Flat
• Cord Length: 4 ft
• Surge Protection: 1,200 Joules
• Electrical Rating: 125 V/15 A/1875 W
• USB Charger Rating: 5 V/2.4A total
• UL Clamping Voltage: UL 1449 4th/600 V (L-N, L-G, N-G)
• Maximum Peak Current: 60,000 A
• 3 AC Lines Protected: L-N: 30,000 A, L-G: 15,000 A, N-G: 15,000 A
• Response Time: Less than 1 nanosecond
• Attenuation: Up to 32dB
• EMI/RFI Filtration: 150 kHz to 100 MHz
• Circuit Breaker: Resettable 15 Amp
TROUBLESHOOTING
▪ If the ON/OFF is switched OFF, the 15 Amp circuit breaker may have tripped. Examine
your connected equipment and remove the device that is overloading the circuit.
Then, turn the ON/OFF switch back to RESET.
▪ If the grounded indicator does not light when you plug in the surge protector, move
the surge protector to a di erent grounded three-prong AC outlet. If it still does not
light, return the product to the retailer for assistance. If the surge protector appears to
be working properly, your outlets may not be properly grounded and need to be
repaired by a professional electrician. If the grounded indicator turns o after a period
of use, the surge protection has been depleted. Replace your surge protector.
▪ If the protected indicator does not light, the surge protector's AC lines are no longer
protected from surge. The surge protector may have received a power surge or spike
beyond its specified limits that overloaded the protection circuitry and rendered it
inactive. The surge protector has protected your connected equipment as designed,
but it will not protect against future surges, and spikes. It should be replaced.
