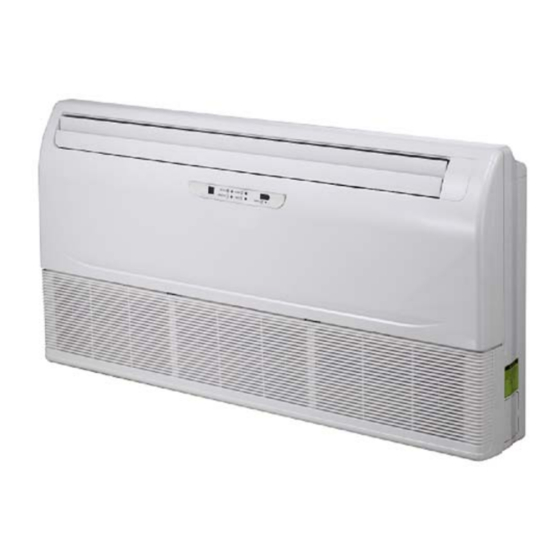

Summary of Contents for mundoclima MVD-36DLDN1
- Page 1 Ceiling Floor Service manual CL23550 to CL23557 English www.mundoclima.com...
-
Page 2: Table Of Contents
The 2 Generation DC Series VRF Indoor Units Ceiling & floor 1 Specifications ..................... 4 2 Dimensions ....................6 3 Unit Placement ..................7 4 Piping Diagram ................... 8 5 Wiring Diagram ..................9 6 Capacity Tables..................11 7 Electrical Characteristics ................19 8 Sound Levels .................... -
Page 3: Specifications
The 2 Generation DC Series VRF Indoor Units 1 Specifications Table 1.1: MVD-36(45,56,71)DLDN1 specifications Model MVD-36DLDN1 MVD-45DLDN1 MVD-56DLDN1 MVD-71DLDN1 Power supply 1 phase, 220-240V, 50Hz Capacity Cooling kBtu/h 12.3 15.4 19.1 24.2 Power input Capacity Heating kBtu/h 13.6 17.1 21.5 27.3... - Page 4 The 2 Generation DC Series VRF Indoor Units Table 1.2: MVD-80(90,112,140)DLDN1 specifications Model MVD-80DLDN1 MVD-90DLDN1 MVD-112DLDN1 MVD-140DLDN1 Power supply 1 phase, 220-240V, 50Hz 11.2 14.0 Capacity Cooling kBtu/h 27.2 30.7 38.2 47.8 Power input 10.0 12.5 15.0 Capacity Heating kBtu/h 30.7 34.1 42.7...
-
Page 5: Dimensions
Generation DC Series VRF Indoor Units 2 Dimensions 2.1 Unit Dimensions Figure 2.1: Ceiling & floor dimensions (unit: mm) Hook Hanging arm Table 2.1: Ceiling & floor dimensions Dimensions (mm) Model MVD-36DLDN1 MVD-45DLDN1 MVD-71DLDN1 MVD-80DLDN1 1280 1195 MVD-90DLDN1 MVD-112DLDN1 1670... -
Page 6: Unit Placement
The 2 Generation DC Series VRF Indoor Units 3 Unit Placement 3.1 Placement Considerations Unit placement should take account of the following considerations: ƒ Units should not be installed in the following locations: y Where exposure to direct radiation from a high-temperature heat source or to interference from a source of electromagnetic radiation may occur. -
Page 7: Piping Diagram
The 2 Generation DC Series VRF Indoor Units 4 Piping Diagram Figure 4.1: Ceiling & floor piping diagram motor flare nut gas side heat exchanger flare nut liquid side Legend Indoor ambient temperature sensor Indoor heat exchanger mid-point temperature sensor Indoor heat exchanger outlet temperature sensor 201805... -
Page 8: Wiring Diagram
The 2 Generation DC Series VRF Indoor Units 5 Wiring Diagram Figure 5.1: Ceiling & floor wiring diagram XS1 XP1 XS2 XP2 FANB White FANA XS3 XP3 Black CN20 CN11 CN20 CN11 CN30 CN30 SW5 SW4 SW3 SW2 SW1 SW5 SW4 SW3 SW2 SW1 CN27 CN24 ON/OFF... - Page 9 The 2 Generation DC Series VRF Indoor Units Notes for installers and service engineers Caution ƒ All installation, servicing and maintenance must be carried out by competent and suitably qualified, certified and accredited professionals and in accordance with all applicable legislation. ƒ...
-
Page 10: Capacity Tables
The 2 Generation DC Series VRF Indoor Units 6 Capacity Tables 6.1 Cooling Capacity Table Table 6.1: Ceiling & floor cooling capacity Indoor air temperature (°C WB/DB) Outdoor air Capacity 14/20 16/23 18/26 19/27 20/28 22/30 24/32 temperature (kW) (°C DB) 10.0 12.0 14.0... - Page 11 The 2 Generation DC Series VRF Indoor Units Table 6.1: Ceiling & floor cooling capacity (continued) Indoor air temperature (°C WB/DB) Outdoor air Capacity 14/20 16/23 18/26 19/27 20/28 22/30 24/32 temperature (kW) (°C DB) 10.0 12.0 14.0 16.0 18.0 20.0 21.0 23.0...
- Page 12 The 2 Generation DC Series VRF Indoor Units Table 6.1: Ceiling & floor cooling capacity (continued) Indoor air temperature (°C WB/DB) Outdoor air Capacity 14/20 16/23 18/26 19/27 20/28 22/30 24/32 temperature (kW) (°C DB) 10.0 10.4 12.0 10.2 14.0 10.2 16.0 10.0...
- Page 13 The 2 Generation DC Series VRF Indoor Units Table 6.1: Ceiling & floor cooling capacity (continued) Indoor air temperature (°C WB/DB) Outdoor air Capacity 14/20 16/23 18/26 19/27 20/28 22/30 24/32 temperature (kW) (°C DB) 10.0 10.5 11.2 11.9 13.3 15.5 12.0 10.5...
- Page 14 The 2 Generation DC Series VRF Indoor Units 6.2 Heating Capacity Table Table 6.2: Ceiling & floor heating capacity Indoor air temperature (°C DB) Outdoor air Capacity temperature (°C) (kW) -19.8 2.24 2.24 2.24 2.24 2.24 2.24 -18.8 2.40 2.40 2.40 2.40 2.40...
- Page 15 The 2 Generation DC Series VRF Indoor Units Table 6.2: Ceiling & floor heating capacity (continued) Indoor air temperature (°C DB) Outdoor air Capacity temperature (°C) (kW) -19.8 3.53 3.53 3.53 3.53 3.53 3.53 -18.8 3.78 3.78 3.78 3.78 3.78 3.78 -16.7 3.97...
- Page 16 The 2 Generation DC Series VRF Indoor Units Table 6.2: Ceiling & floor heating capacity (continued) Indoor air temperature (°C DB) Outdoor air Capacity temperature (°C) (kW) -19.8 5.04 5.04 5.04 5.04 5.04 5.04 -18.8 5.40 5.40 5.40 5.40 5.40 5.40 -16.7 5.67...
- Page 17 The 2 Generation DC Series VRF Indoor Units Table 6.2: Ceiling & floor heating capacity (continued) Indoor air temperature (°C DB) Outdoor air Capacity temperature (°C) (kW) -19.8 7.00 7.00 7.00 7.00 7.00 7.00 -18.8 7.50 7.50 7.50 7.50 7.50 7.50 -16.7 7.88...
-
Page 18: Electrical Characteristics
Generation DC Series VRF Indoor Units 7 Electrical Characteristics Table 7.1: Ceiling & floor electrical characteristics Power supply Indoor fan motors Model Rated motor Volts Min. volts Max. volts output (kW) MVD-36DLDN1 220-240 0.45 0.10 0.35 MVD-45DLDN1 220-240 1.20 0.10 0.93 MVD-56DLDN1 220-240 1.20... -
Page 19: Sound Levels
During in-situ operation, sound pressure levels may be higher as a result of ambient noise. Figure 8.1: Ceiling & floor sound pressure level measurement 8.2 Octave Band Levels Figure 8.2: MVD-36DLDN1 octave band levels Figure 8.3: MVD-45(56,71)DLDN1 octave band levels NC65 NC65... - Page 20 The 2 Generation DC Series VRF Indoor Units Figure 8.4: MVD-80(90)DLDN1 octave band levels Figure 8.5: MVD-112(140)DLDN1 octave band levels NC65 NC65 NC60 NC60 NC55 NC55 NC50 NC50 NC45 NC45 NC40 NC40 NC35 NC35 NC30 NC30 NC25 NC25 NC20 NC20 NC15 NC15 1000 2000 4000 8000...
-
Page 21: Error Codes
The 2 Generation DC Series VRF Indoor Units 9 Error codes With the exception of a mode conflict error, contact your supplier or service engineer if any of the error codes listed in the following table are displayed on the unit's display panel. If the mode conflict error is displayed and persists, contact your supplier or service engineer. These errors should only be investigated by a professional technician. - Page 22 ASK FOR MORE INFORMATION Phone: (+34) 93 446 27 80 eMail: info@mundoclima.com TECHNICAL ASSISTANCE Phone: (+34) 93 652 53 57 www.mundoclima.com...
