TANDEM plus BLUMOTION

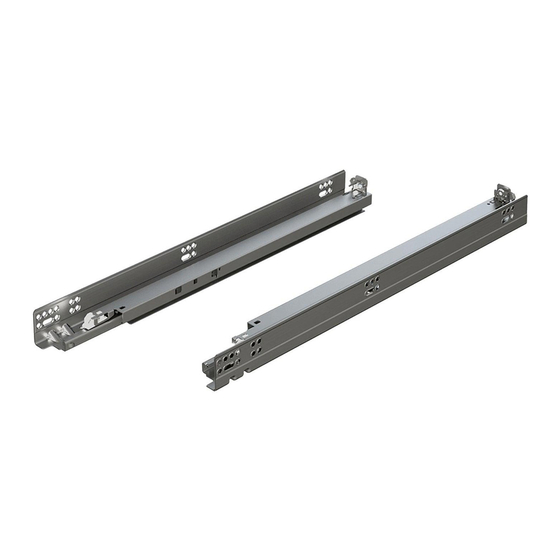

Full extension concealed runners
Basic components
Side-to-side adjustment
1
Rotate side-to-side adjustment left or
right equally on both locking devices. Drawer
front moves in the same direction as rotation.
R
Drawer
front
L
R
L
0
Maximum 1.5 (1/16") to left or right in both front and rear (tool-free)
NOTE:
Side-to-side adjustment not available on T51.x8xx locking devices
Subject to technical modifications without notice. © 2015 Blum Inc.
563F installation instructions
Locking devices
g
Rear side-to-side adjustment
2
After front side-to-side adjustment is
made with the locking devices, rotate the
rear side-to-side adjustment left or right
to re-align the back of the drawer box with
the front. Drawer back moves in the same
direction as rotation.
0
R
L
R
L
Runners
Height adjustment
1
Press up on adjustment tab
2
Push towards back of drawer
2
1
Maximum 3 (1/8") rise of drawer front (tool-free)
NOTE:
Height and tilt adjustments available with all combinations of locking devices and runners
Depth adjustable locking device
Locking device
T51.1901.PS
with side-to-side,
height and
depth adjustment
Turning the adjustment screw allows
for up to a + 2 .5 (3/32") out adjustment
NOTE:
For T51.1901.PS setback in inset
applications, see page 5
1
Rear attachment options
Tilt adjustment
Rotate the tilt adjustment lever on the rear of
each runner to lift the back of the drawer and
tilt the top of the drawer front forward
Maximum 5 (3/16") rise of drawer back (tool-free)
Depth adjustment on runner
TANDEM 563 runners feature elongated
holes that allow ±4.5 (3/16") depth adjustment
Dimensions in millimeters (inch equivalents as noted)

Advertisement

loading
Need help?

Need help?

Do you have a question about the TANDEM plus BLUMOTION 563F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BLUM TANDEM plus BLUMOTION 563F

  • Page 1 Maximum 1.5 (1/16") to left or right in both front and rear (tool-free) NOTE: For T51.1901.PS setback in inset applications, see page 5 NOTE: Side-to-side adjustment not available on T51.x8xx locking devices Subject to technical modifications without notice. © 2015 Blum Inc. Dimensions in millimeters (inch equivalents as noted)
  • Page 2 Squeeze orange handles on locking devices The locking devices automatically engage with the runners. Make adjustments if necessary. Pull drawer straight out and up Subject to technical modifications without notice. © 2015 Blum Inc. Dimensions in millimeters (inch equivalents as noted)
  • Page 3 Orange dots indicate screw locations required to meet specified load capacities 606N or 606P #6 Wood screw (for mounting runner to cabinet side, rear brackets and locking devices) Subject to technical modifications without notice. © 2015 Blum Inc. Dimensions in millimeters (inch equivalents as noted)
  • Page 4 #6 Wood screw (for mounting runner to cabinet side, rear brackets and locking devices) NOTE: Orange dots indicate screw locations required to meet specified load capacities 662.1150.HG #6 System screw (for mounting runner to cabinet side) Subject to technical modifications without notice. © 2015 Blum Inc. Dimensions in millimeters (inch equivalents as noted)
  • Page 5 For mounting hole position add 7 (9/32") to Calculating 563/569 F/A Sub-front thickness + drawer front thickness minus 14.5 (9/16") runner setback runner setback Subject to technical modifications without notice. © 2015 Blum Inc. Dimensions in millimeters (inch equivalents as noted)
  • Page 6 563F3810B 381 (15") 404 (15-29/32") 319 (12-9/16") 15.5 (5/8") 22.5 (7/8") Millimeter to inch conversion chart 13.5 17.5 20.5 24.5 25.4 INST-TDM563F 05.15 Subject to technical modifications without notice. © 2015 Blum Inc. Dimensions in millimeters (inch equivalents as noted)
