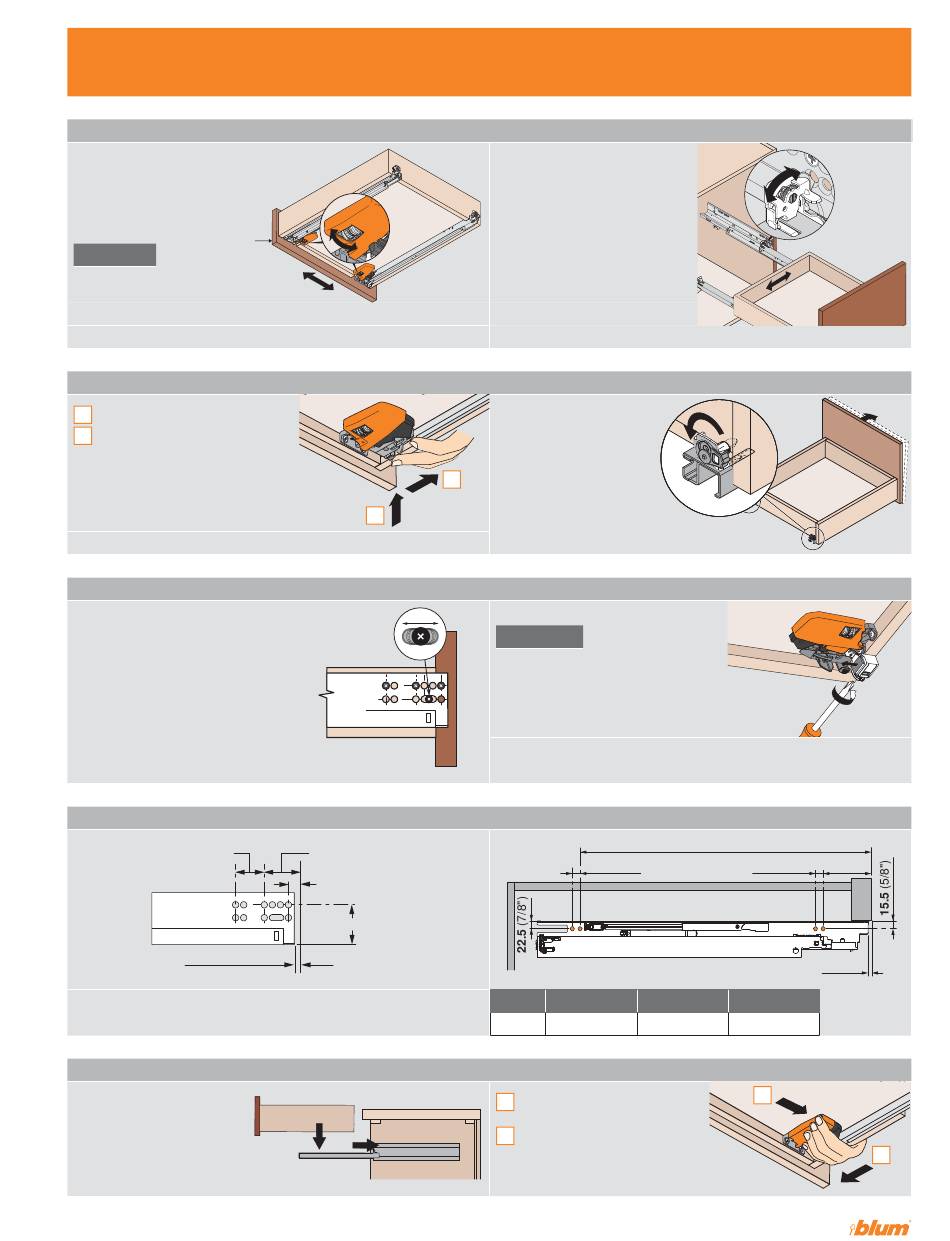

BLUM TANDEM plus BLUMOTION 563F Quick Start Manual

TANDEM plus BLUMOTION 563F
New side adjustment
Rotate side adjustment left or
right equally on both locking
devices. Drawer front moves in
the same direction as rotation.
drawer
with locking device
front
T51.19xx
Maximum 1.5 (1/16") to left or right (tool-free)
NOTE: Side adjustment not available on T51.18xx locking devices
Height adjustment
1 Press up on adjustment tab
2 Push towards back of drawer
Maximum 3 (1/8") rise of
drawer front (tool-free)
NOTE: Height adjustment available on all TANDEM locking devices
New depth adjustment on runner

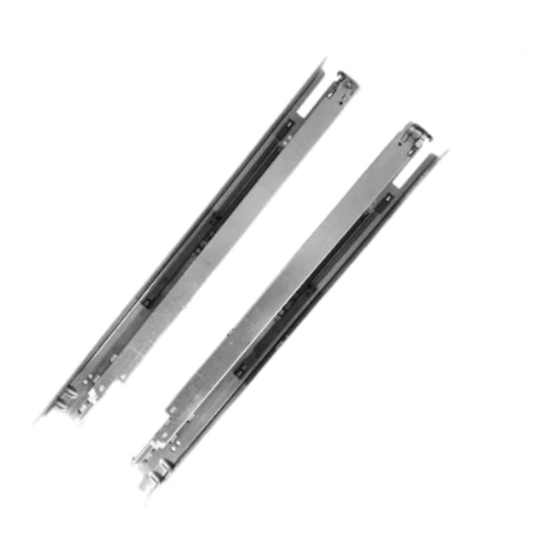

TANDEM 563 runners feature
elongated holes that allow
±4.5 (3/16") depth adjustment.
New profile setback
32 (1-1/4")
setback 3 (1/8")
NOTE: Hole locations to the face of the cabinet stay the same.
For inset applications see the TANDEM brochure.
Drawer insertion
Place drawer on runners and
close. The locking devices
automatically engage with
the runners.
Dimensions in millimeters (inch equivalents as noted)
Subject to technical modifications without notice. © 2013, Blum Inc.
R
L
R
L
2
1
37 (1-15/32")
10 (13/32")
37 (1-15/32")
LIT.TDM563F.PI2.08013
New rear side adjustment
After front side adjustment is
made with the locking devices,
rotate the rear side adjustment
left or right to re-align the back
of the drawer box with the front.
Drawer back moves in the
same direction as rotation.
Maximum 1.5 (1/16") to left or right (tool-free)
Tilt adjustment
Rotate the tilt adjustment
lever on the rear of each
runner to tilt the top of the
drawer front forward.
Maximum 5 (3/16") rise of
drawer back (tool-free)
New depth adjustable locking device
Locking device
T51.1901.PS
with side, height
and depth adjustment
Turning the adjustment screw allows
for up to a + 2.5 (3/32") out adjustment
NOTE: For T51.1901.PS setback in inset applications, see the
TANDEM brochure
New bottom mounting
9 (11/32")
Runner 563F5330B 563F4570B
X 448 (17-5/8") 378 (14-7/8")
Drawer removal
1 Squeeze orange handles on
locking devices
2
Pull drawer straight out and up
R
L
R
L
X
9 (11/32") 67 (2-5/8")
3 (1/8")
563F3810B
319 (12-9/16")
1
2
