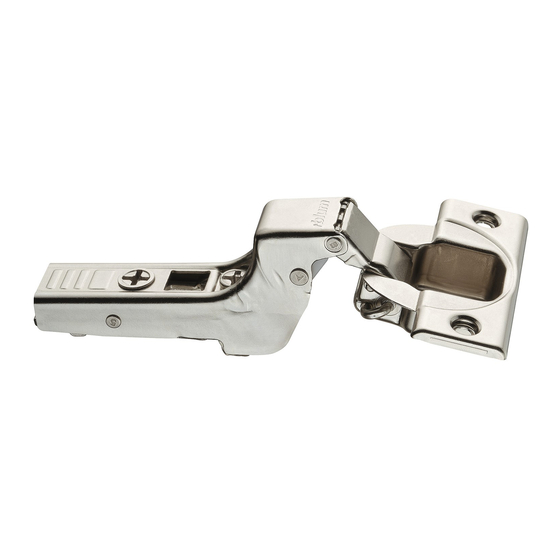

BLUM CLIP top 110 Assembly Instructions

Angle restriction clip

CLIP top 110° angle restriction clip

Assembly instructions

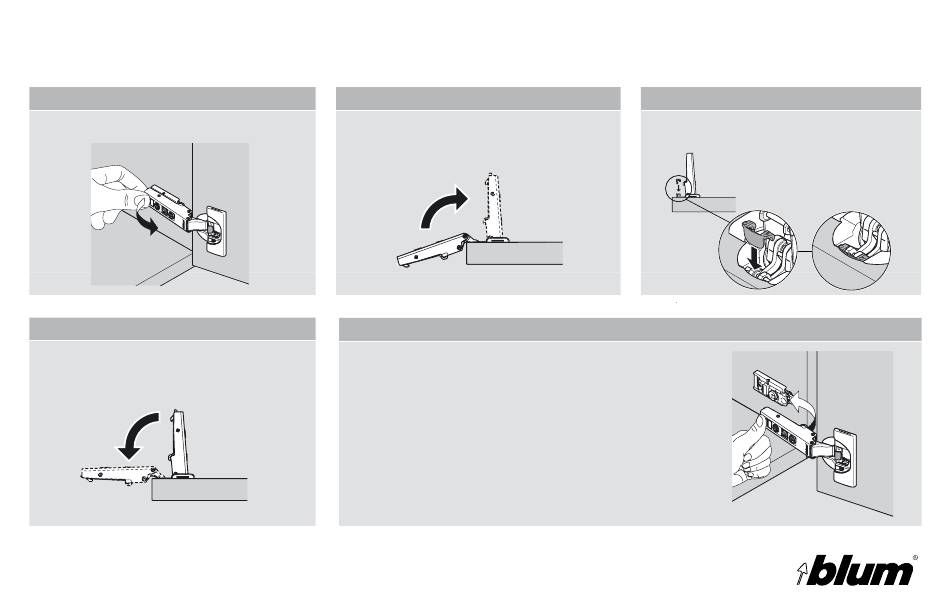

Step 1 — Remove door

Remove hinge from CLIP mounting plate.

Step 4 — Rotate hinge arm

Rotate hinge arm to open position.

NOTE: For use with all CLIP top 110° and 110° + hinges (this includes CLIP top BLUMOTION)

LIT.HNG5201.07.11

Step 2 — Rotate hinge arm

Rotate hinge arm to closed position.

Step 5 — Reattach door

Align door and reattach to CLIP mounting plate.

Restricts opening angle to 86°

Step 3 — Insert angle restriction clip

Insert angle restriction clip (70T3553) into

base of hinge arm and secure.

Table of Contents

Need help?

Do you have a question about the CLIP top 110 and is the answer not in the manual?

Page 1 Align door and reattach to CLIP mounting plate. Restricts opening angle to 86° NOTE: For use with all CLIP top 110° and 110° + hinges (this includes CLIP top BLUMOTION) Subject to technical modifications without notice. © 2011 Blum, Inc.
Page 2 CLIP top BLUMOTION Three-dimensional adjustment Side adjustment Height adjustment Depth adjustment Rotate front screw to increase or decrease Rotate cam screw on mounting plate to Rotate rear spiral tech cam screw to adjust door overlay (±2 mm). adjust door position (±2 mm). door gap (+3 mm, -2 mm).
Page 3 CLIP mounting plate adjustments Height adjustment Cam wing mounting plate Rotate cam screw on the mounting plate to adjust door position ( + /- 2 mm). Technical specifications subject to change without notice. LIT.HNG6200.10.15 © 2015 Printed in USA...
