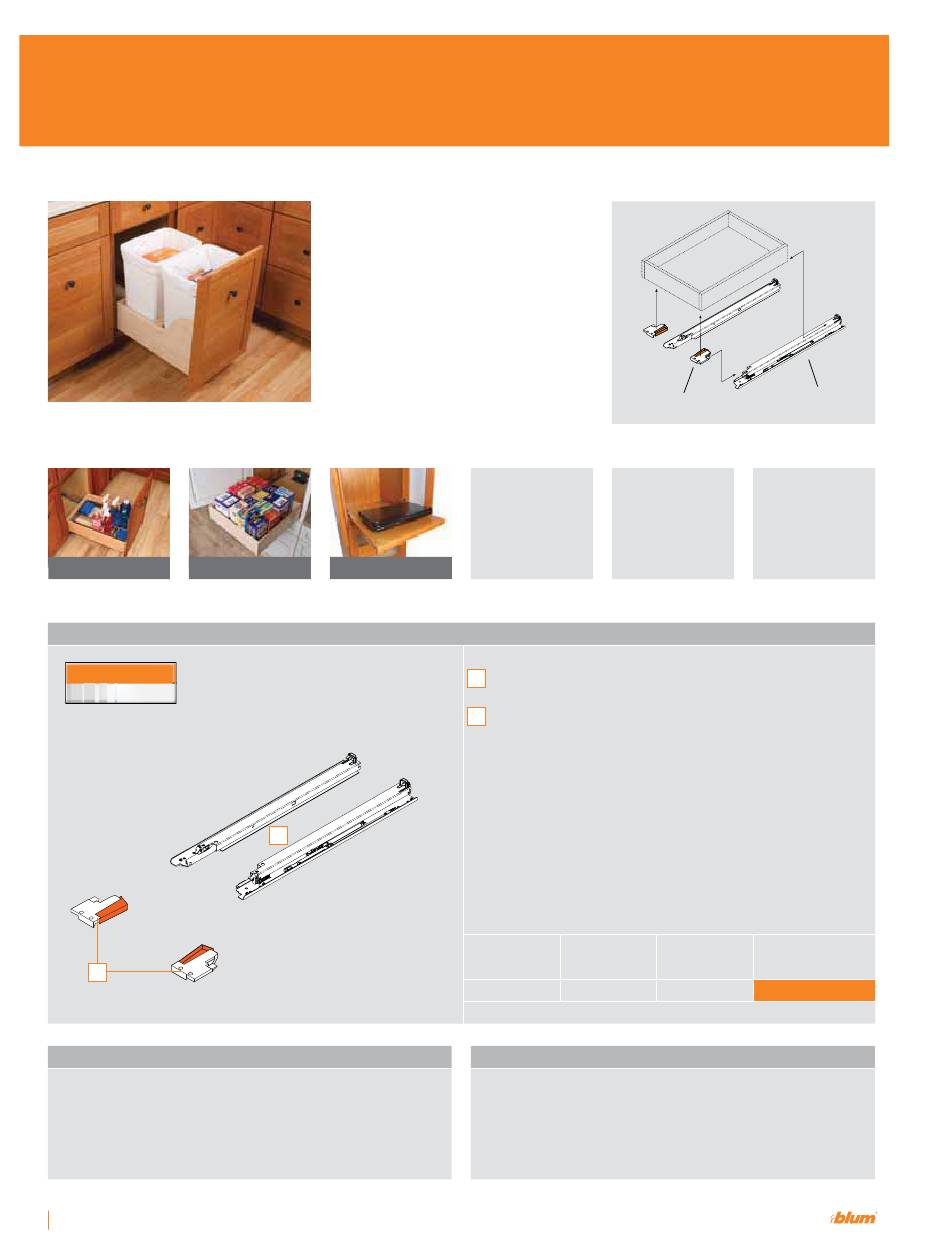

BLUM TANDEM plus BLUMOTION 568R Quick Start Manual

TANDEM plus BLUMOTION 568R
heavy duty bottom mount drawer runners

Application

Applications

Bottom mount
Interior roll-out

Components

TANDEM plus BLUMOTION bottom mount runner set
BLUMOTION
inside
2
Interior roll-outs and roll-out shelf applications
Interior roll-outs and roll-out shelf applications must be mounted to
the bottom of the cabinet or to a fixed shelf/panel.
8
© 2011 Blum, Inc. Subject to technical modifications without notice.

Description

■ Full extension bottom mount concealed
drawer runners with BLUMOTION
For 16 (5/8") max. drawer side thickness
■
■ For face frame and panel applications
■ Tool free height and tilt adjustment
■ Concealed roller carriages with
permanently lubricated synthetic rollers
create a smooth running action
■ Locking devices enable easy drawer
insertion and removal
■ Force-guided right side and ±1.5 (1/16")
tolerance-compensating left side
■ 125 lb static, 110 lb dynamic load capacity
Roll-out shelf
1
Basic components
Locking device
Set includes:
■ 1 TANDEM plus BLUMOTION heavy duty runner set with #6 x 5/8"
wood screws for installation (qty 10)
■ 2 Standard locking device (qty 2) with #6 x 1/2" truss head wood
screws for installation (qty 4)
■ Instructions
Overall cabinet Drawer
depth length
610 (24") 533 (21")
NOTE: These runners are for 16 (5/8") max. drawer side thickness
Rear mounting bracket for frame cabinets
Rear brackets and sockets cannot be used. Cabinet bottom must be
flush with top surface of bottom rail.
Runner profile
TANDEM plus
Extension loss
BLUMOTION set
19 (3/4") 568R5330B
