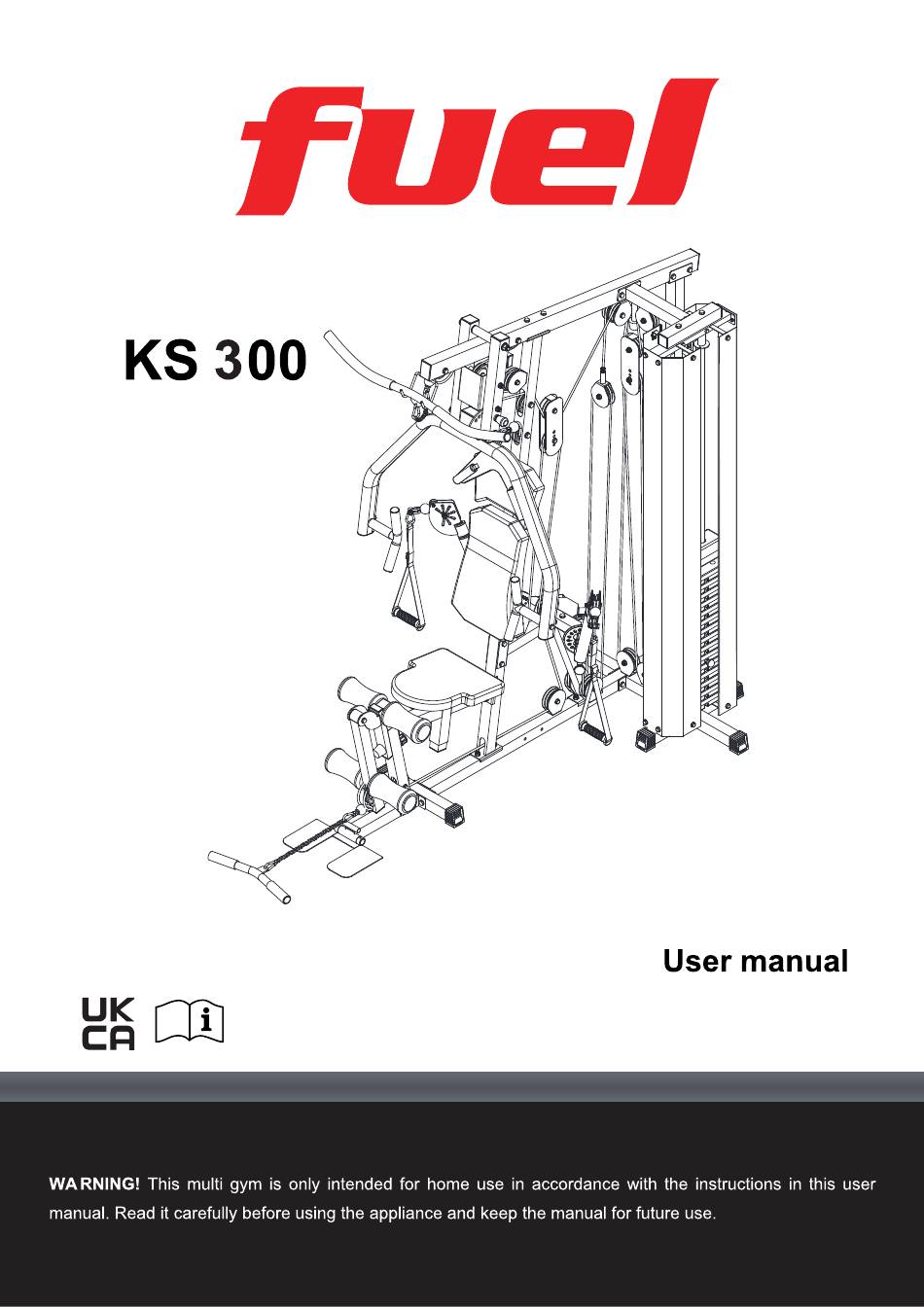

Fuel KS 300 User Manual

Hide thumbs Also See for KS 300:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the KS 300 and is the answer not in the manual?

Questions and answers

Related Manuals for Fuel KS 300

Summary of Contents for Fuel KS 300

  • Page 6 Footplate Connector Front Base Frame Base Frame Seat Support Frame Front Support Frame Leg Extension Frame Foam Roller Bracket Right Base Frame Upper Cross Beam Weight Guide Tube 2pcs Left Connect Frame Right Connect Frame Seat Frame Press Arm Arm Bracket Footplate Footplate Fixed Tube Arm Support Frame...
  • Page 7 Arm Cable Lower Cable Connection Cable Handle Spring 3pcs 3pcs Insert Pin (long) Insert Pin (short) Chain(long) Chain(short) Pothook 2pcs 7pcs Selector Shaft Pin Selector Shaft Bushing Plastic Washer Pulley Weight Selector Pin 30pcs Quick Knob(short) Quick Knob(long) Oil Bushing Ankle Strap AB Strap 2pcs...
  • Page 8 32mm Round End Plug 30mm Round End Plug 25mm Round End Plug Buffer Buffer(small) 4pcs 4pcs 2pcs Shaft M10X235mm Hex Bolt M10X125mm Hex Bolt M10X90mm Hex Bolt M10X85mm Hex Bolt 2pcs 2pcs 4pcs M10X75mm Hex Bolt M10X70mm Hex Bolt M10X65mm Hex Bolt Carriage Bolt M10X60mm M10X50mm Hex Bolt 5pcs...
  • Page 14 1. Remove two M10X25mm Bolts (108) from two Weight Guide Tubes (10). 2. Insert two Weight Guide Tubes (10) into the Bottom Cross Connector (24), using two M10X25mm Bolts (108). 3. Attach the Support Frame (26), the Arm Support Frame (18) and the Rear Upright Frame (25) to the Base Frame (3), using six M10X60mm Carriage Bolts (104), six M10 Washers (118) and six M10 Nylon Nuts (123).
  • Page 15 1. Attach the Lower Fixed Tube (30) to the Weight Guide Tube (10), using two M8X16mm Hex Bolts (112), and be close to the Bottom Cross Connector (24). 2. Slide four Rubber Rings (68) onto two Weight Guide Tubes (10). 3.
  • Page 16 1. Attach the Upper Cross Beam (9) to the Rear Upright Frame (25), using two M10X70mm Hex Bolts (102), four M10 Washers (118) and two M10 Nylon Nuts (123). 2. Attach the Upper Cross Beam (9) to the Support Frame (26), using two M10X90mm Hex Bolts (99), four M10 Washers (118) and two M10 Nylon Nuts (123).
  • Page 17 1. Attach the Footplate Connector (1) and the Front Base Frame (2) to the Base Frame (3), using two M10X75mm Hex Bolts (101), four M10 Washers (118) and two M10 Nylon Nuts (123). 2. Attach the Footplate (16) to the Footplate Connector (1), using the Footplate Fixed Tube (17) and two M5X5 Screws (116).
  • Page 18 101 103 1. Attach the Backrest Frame (28) to the Support Frame (26), using one M10 Washer (118), one M10 Nylon Nut (123). 2. Attach the Seat Support Frame (4) to the Support Frame (26), using two M10X90mm Hex Bolts (99), four M10 Washers (118) and two M10 Nylon Nuts (123).
  • Page 19 1. Attach two Arms (19) to the Arm Bracket (15), using two Axle Collars (67) and four M6X6mm Screws (114). 2. Attach the Left and Right Connect Frame (11&12) to the Upper Cross Beam (9), using six Oil Bushings (big) (63), one Shaft (96), two M16 Washers (117) and two M16 Nylon Nuts (122). 3.
  • Page 20 1. Attach the Head Cushion (41) to the Support Frame (26), using two M8X85mm Hex Bolts (110) and two M8 Washers (120). 2. Attach the Backrest Cushion (40) to the Backrest Frame (28), using two M8X16mm Hex Bolts (112) and two M8 Washers (120). 3.
  • Page 21 NO.1 NO.2 NO.3&5 NO.4 32 37 NO.6 NO.7 NO.8 NO.9 NO.28 NO.8 NO.10 NO.11 1. Start with Upper Cable (45) a). With Upper Cable (45) in groove of Pulley (59), thread Upper Cable (45) through Upper Cross Beam (9) . b).
  • Page 22 NO.12 NO.13 NO.14 NO.15 NO.16 NO.17 NO.18 2. Assembly Lower Cable (47) a). With Lower Cable (47) in groove of Pulley (59) through Leg Extension Frame (6). b). Install Pulley NO.12 (59) and two Plastic Bushing (short) (82) to Leg Extension Frame (6), using one M10X65mm Hex Bolt (103), two M10 Washers (118) and one M10 Nylon Nut (123).
  • Page 23 NO.19 NO.20 NO.21 NO.22&24 NO.23 NO.25 NO.26 NO.27 3. Assembly Arm Cable (46) a). Run the end of Arm Cable (46) through Arm (19) and Rotational Pulley Block (27). b). Install Pulley NO.19 (59) to Rotational Pulley Block (27), using one M10X50mm Hex Bolt (105), two M10 Washers (118) and one M10 Nylon Nut (123).
  • Page 24 NO.28 NO.29 NO.30 4. Assembly Connection Cable (48) a). Attach the bolt end of Connection Cable (48) to Single Pulley Block (33). b). Let the other end of Connection Cable (48) go through the Pulley NO.28 (59). c). Install Pulley NO.29 (59) to Bottom Cross Connector (24), using one M10X45mm Hex Bolt (106), two M10 Washers (118) and one M10 Nylon Nut (123).
  • Page 25 1. Attach the Safety Cover (31) to the Upper Fixed Tube(29) and the Lower Fixed Tube (30), using sixteen M8X16mm Hex Bolts (112) and sixteen M8 Washers (120).
  • Page 26 1. Attach twenty-two Hole Plugs (126) to the Base Frame (3) and the Rear Upright Frame (25).
  • Page 33 2 years...
  • Page 34 1450 2060...
