The Fenix TK15UE defines extreme ruggedness. This light employs the new CREE XP-L
HI V3 LED technology, which allows the light to throw an impressive beam distance of
325 meters and deliver a maximum output of 1000 lumens. With an impact resistant
strike face bezel, the TK15UE is ready for heavy duty action. Complete with a tactical tail
switch with momentary capability and a side switch to access four brightness levels and
Strobe, this tactical light is built to assist law enforcement, search and rescue, military
and more.
Technical Parameters
ANSI/PLATO FL1
Output
Runtime
Distance
Intensity
Impact Resistance
Waterproof
Accessories
Notice: The above-mentioned parameters (lab-tested by using Fenix 18650 rechargeable
Li-ion battery 3.6V/3500mAh) are approximate and may vary between flashlights,
batteries and environments.
*Due to intelligent over-heat protection, the runtime of the Turbo brightness level is the
accumulated time.
◎
Uses Cree XP-L HI V3 LED with a life span of 50,000 hours
◎
Powered by one 18650 rechargeable Li-ion battery or two CR123A Lithium batteries
◎
142.5mm Length x 25.4mm Body Diameter x 34mm Head Diameter
◎
141 grams (excluding battery)
◎
Compatible with AER-01/AER-02 remote pressure switch

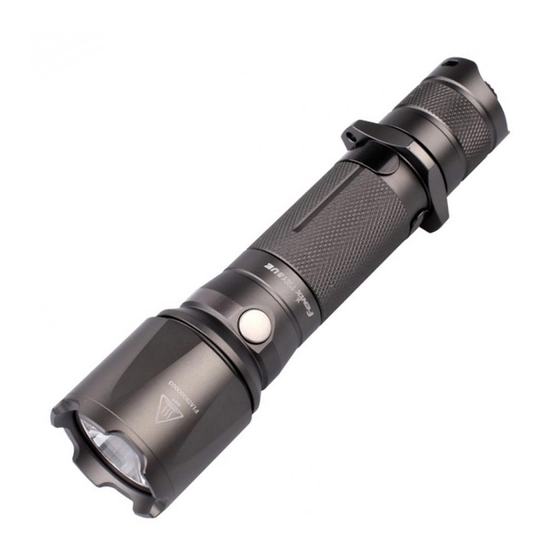

Fenix TK15UE Flashlight
Turbo
High
1000
350
Lumens
Lumens
2h*
4h 20min
325m
194m
26400cd
9400cd
Holster, lanyard, spare O-ring, spare rubber switch boot
Mid
150
10 Lumens
Lumens
11h 30min
135h
125m
3900cd
240cd
1m
IPX-8, underwater 2m
Low
Strobe
1000
Lumens
/
31m
/
/
Advertisement
Related Manuals for Fenix TK15UE
Summary of Contents for Fenix TK15UE
- Page 1 325 meters and deliver a maximum output of 1000 lumens. With an impact resistant strike face bezel, the TK15UE is ready for heavy duty action. Complete with a tactical tail switch with momentary capability and a side switch to access four brightness levels and Strobe, this tactical light is built to assist law enforcement, search and rescue, military and more.
- Page 2 ◎ Digitally regulated output maintains constant brightness ◎ Reverse polarity protection, to protect from improper battery installation ◎ Anti-roll and anti-slip body design ◎ Tactical tail switch for momentary-on function ◎ Functional side switch for output selection ◎ Made of durable aircraft-grade aluminum ◎...
- Page 3 ◎ Disassembling the sealed head can cause damage to the light and will void the warranty. ◎ Fenix recommends using excellent quality battery. If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
- Page 4 5 years of purchase if problems develop with normal use; if repair is required after 5 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.
