Fenix RC15 User Manual

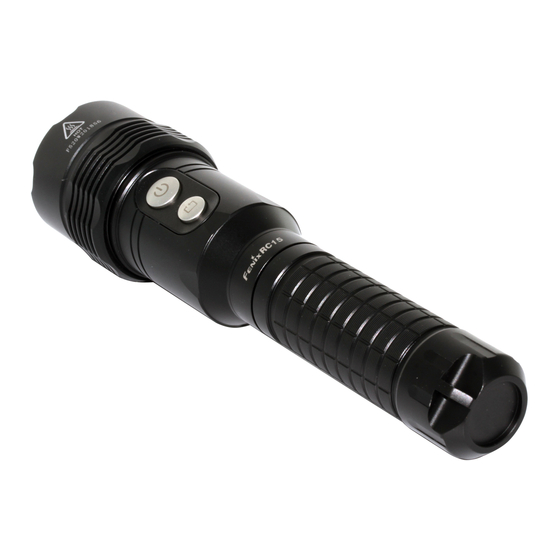

Fenix RC15 Flashlight
Fenix RC15 is a top pick for rechargeable flashlight performance.
With 860-lumen max output, RC15 offers useful working levels
down to 9 lumens. Exceptional runtime combines with long throw
and solid recharging times to make RC15 an everyday duty light
ready to answer the call.
Power Switch
RC15
Max 860 Lumens
User manual
Mode Switch
Head
Technical Parameters
General Mode
ANSI/NEMA FL 1
High
Turbo
860 Lumens 350 Lumens
1h 10min 3h
AC charger, car charger, charging cradle, holster, lanyard and spare O-ring
Notice: The above-mentioned parameters are approximate and may vary due to different environments.
◎Uses Cree XM-L (U2) LED with a lifespan of 50000 hours
◎Tailored 2600mAh 3.7V rechargeable Li-ion battery
◎168mm(Length) x 25.4mm (Battery Tube Diameter) x 42mm(Head
Diameter)
◎245-gram weight (including the battery)
◎Digitally regulated output maintains constant brightness
◎Anti-roll, slip-resistant body design
◎Dual switch on the head for fast and convenient operation
◎Made of durable aircraft-grade aluminum
◎ Premium Type III hard-anodized anti-abrasive finish
◎Toughened ultra-clear glass lens with anti-reflective coating
◎The charging equipment supports AC charger and car charger
Operation Instruction
There are two push-button switches on the side of the light's head.
Tailcap
The big one with a power source mark is the power switch, and the
small one with a loop mark is the mode switch.
Turning RC15 on/off
A single press on the power switch will turn the light on/off.
Selecting Output
With the flashlight on, a single press on the mode switch will select
the brightness level in the order of Turbo→ Low→ Mid→ High
brightness levels.
Output mode, the flashlight will blink three times every five
minutes to remind you to recharge the flashlight.
Over-discharge Protection
When the battery voltage is extremely low, the flashlight will turn
Strobe
Mode
off automatically to protect the battery from over-discharge.
Mid Low
Charging
When the charging cradle is plugged into a household outlet, the
130 Lumens
9 Lumens 860 Lumens
indicator light will turn green. Put the flashlight into the charging
cradle and rotate it until it clicks into position. The indicator light
6h 30min 100h
will now turn red to indicate charging has begun. When the
284 (Max) indicator light returns to green, the charging cycle has been
m
completed. The normal charging time is about 3 hours.
(Max)
20200 cd
NOTE:
1.Please do not charge the flashlight when it is turned on. Doing
1m
so will extend the charging time and may cause the battery to be
not fully charged. However If emergency lighting is needed, it will
IPX-8 underwater 2m ,
still be okay to charge the flashlight when it is turned on. Due to
the output protection function, RC15 can not enter into the Turbo
in this case.
2.Please recharge a stored RC15 every four months to maintain
optimum performance of the battery.
Strobe Mode
When the flashlight is on, press and hold the mode switch for one Usage and Maintenance
second to enter into Strobe mode. It will flash between 6Hz and
15Hz every two seconds. A single press on the mode switch will ◎Please don't disassemble the sealed head, as doing so can
return the flashlight to the general mode. cause damage to the flashlight and will void the warranty.
With the flashlight off, press and hold the mode switch for one ◎The O-ring may be worn out after using for a long time. If it
second will enter into strobe mode momentarily till the mode switch happens, please replace the O-ring with a new one to keep
is released.
the flashlight properly sealed against water.
◎ Periodic cleaning of the battery contacts improves the
Lock the Flashlight to Prevent Accidental Operation
Turn on the flashlight and hold the power switch for two seconds, flashlight's performance as dirty contacts may cause the
the flashlight will blink twice and turn off to signal that the flashlight is flashlight to flicker, shine intermittently or even fail to
illuminate for the following reasons:
locked. To unlock the flashlight, just double click the power switch.
Intelligent Memory Circuit Reason A: The battery lacks power.
Solution: Recharge the flashlight.
The flashlight memorizes the last brightness level used in the
Reason B: The threads, PCB board contact or other contacts are
general mode, but it will not remember any flashing modes (some
dirty.
models may not have flashing modes). The next time you turn on
Solution: Clean the contact points with a cotton swab soaked in
the flashlight, it will light up at the last used general mode.
rubbing alcohol.
Intelligent Thermal Management :
If the above methods do not work, please refer to the warranty
RC15 will accumulate a lot of heat when it is working in Turbo
policy before contacting your authorized distributor.
output. When overheating is detected, the flashlight will
automatically drop down into the high brightness level. You can
Notice: The routine cleaning video can be watched and
reset the flashlight to Turbo output again when the temperature
downloaded through the Fenix website by clicking on the RC series
drops.
followed by the maintenance tab.
Low-voltage Warning Function
When the voltage level drops below the preset level, the flashlight
Product Warranty
will downshift to a lower brightness level. When it happens in low
We will replace products afflicted with manufacturing defects
within 15 days of purchase and repair a light free of charge
within 24 months of purchase if problems develop with normal
use; if repair is required after 24 months from the date of
purchase, we will charge for parts. The total repair fee is dictated
by the cost of the replaced materials.
Rechargeable batteries and chargers have a one year warranty
with proof of purchase.
Product Registration
We kindly suggest that you register your product on the official
website of Fenixlight Limited( www.fenixlight.com ). You'll receive
an extra six months of warranty coverage once you have
successfully registered. By participating in an optional customer
survey, you are entered in a drawing for free Fenix products.
Warning
RC15 is a high-intensity lighting device capable of causing eye
damage. Avoid shining the light directly into anyone's eyes.
Available Accessories
Type Description
Model Note
Diffuser tip AOD-M
Belt clip AB02
Bike mount AF02
ALG-01
Flashlight Ring
Note: For full details about available accessories, please visit
the Fenix website, click on Products followed by clicking through
to the Accessories page.
