Congratulations! on your purchase of the UPSPro
power system. Please take a moment to review this Qwik Install
Guide before assembly or battery installation. Other instructions
come with other components of this kit. Be sure to review all in-
structions.
When following the instructions in this guide take extreme care
to avoid contact with overhead power lines, lights and power circuits.
Contact with power lines, lights or power circuits may be fatal. We rec-
ommend to install no closer than 20 feet to any power lines.
Safety:
For your own protection, follow these safety rules.
▫
Perform as many functions as possible on the ground
▫
Do not attempt to install on a rainy, windy or snowy day or if
there is ice or snow accumulation at the install site or if the
site is wet.
▫
Make sure there are no people, pets, etc. below when you are
working on a roof or ladder.
Recommended Tools: Phillips & Flat Screwdriver, 17/13/10mm
wrench, 8mm nut driver
Please help preserve the environment and return
used batteries to an authorized depot. Most auto
parts stores will pay for your used battery.

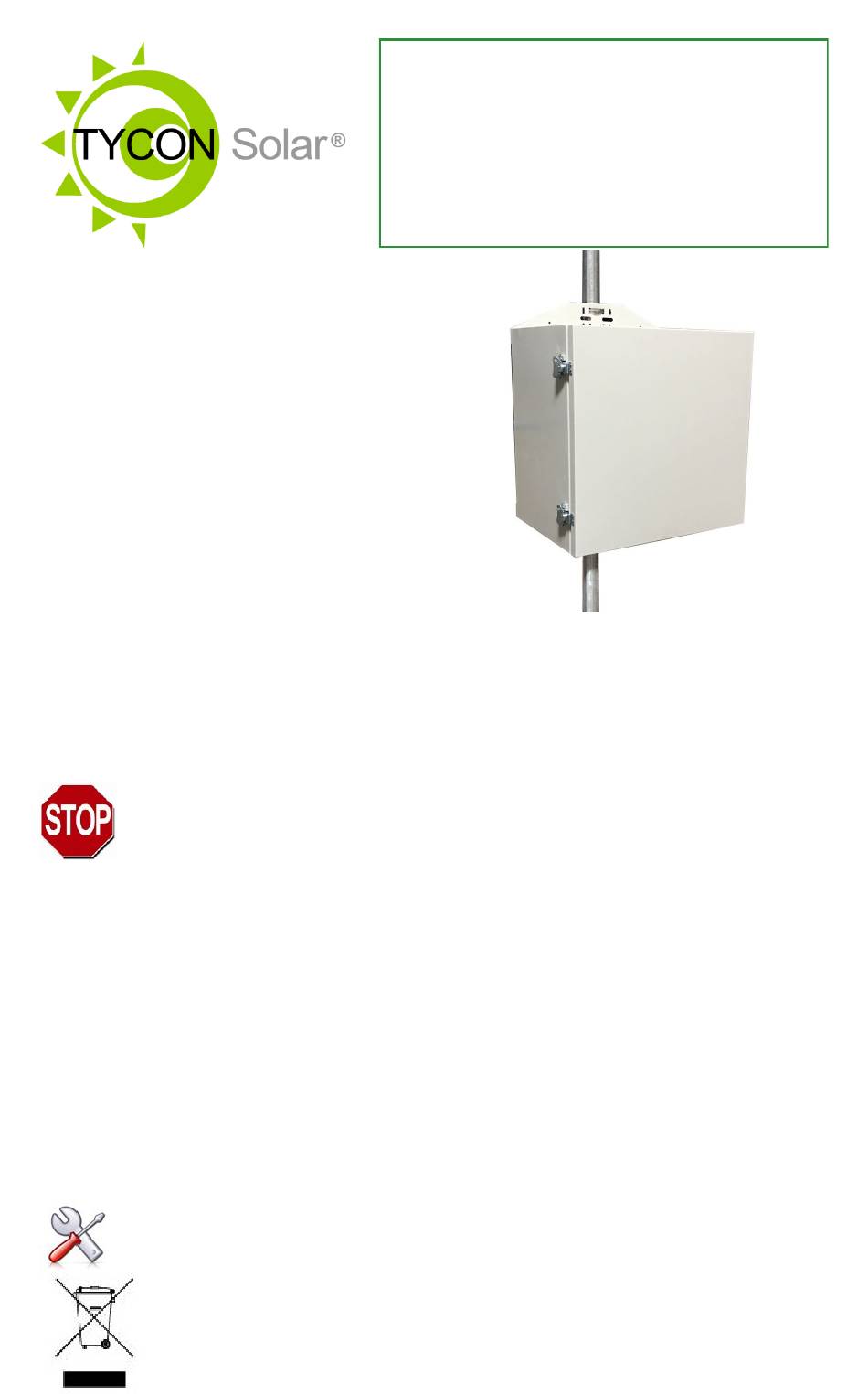

UPS-STL-500/600
Backup Power System
DANGER! Avoid Powerlines!
You Can Be Killed!
®
UPSPro
®
backup
Advertisement
Table of Contents
Related Manuals for TYCON Solar UPSPro UPS-STL-500
Summary of Contents for TYCON Solar UPSPro UPS-STL-500
- Page 1 UPS-STL-500/600 ® UPSPro Backup Power System Wireless Base Stations ▫ and Client Devices Surveillance Cameras ▫ Mission Critical Backup ▫ Power Remote Sensors ▫ ® Congratulations! on your purchase of the UPSPro backup power system. Please take a moment to review this Qwik Install Guide before assembly or battery installation.
- Page 2 Qwik Install STEP 1: Prepare the enclosure: Install DIN rail (if required) to door using two phillips head screws. Install just the top mounting bracket to the enclosure using two 8mm bolts. NOTE: It takes two people to mount the enclosure to a pole.
- Page 3 Connect all battery minus (-) connections, then connect all battery plus (+) connections. Because of high charging currents, two battery cables are required for 12V installs. NOTE: The fan supplied with the system operates on 12VDC or 24VDC. It is thermostatically controlled to turn on if temperature ex- ceeds 45C.
- Page 4 CAUTION: Be sure to connect the battery to the controller first and dis- connect it last. Connecting PV connection to the controller without the battery connected could damage the controller. UPS-STL-500/600 4 Battery System seal area to increase its diameter and make a better seal. Note: There are multiple cable gland feedthrough in the bottom of the enclosure.
- Page 5 a standard combination or keyed padlock. ® STEP 14: The UPSPro is Solar Ready™ so a solar panel can be added to provide supplemental or full time power. The solar panel will be connected to PV input (PV+ & PV-) in parallel with AC Battery Charger.
- Page 6 SPECIFICATION SUMMARY Subject to change without notice Backup AGM Battery Battery Battery Storage Time at Model # Voltage Capacity Capacity 25W Avg Load UPSTL-12/24-200-600 12/24VDC 200Ah 2400Wh 48hrs UPSTL-12/24-400-600 12/24VDC 400Ah 4800Wh 96hrs Backup Lithium Battery Battery Battery Storage Time at Model # Voltage Capacity...
- Page 8 NOTES Limited Warranty ® The UPSPro products are supplied with a limited 36 month warranty which covers material and workmanship defects. This warranty does not cover the following: ▫ Parts requiring replacement due to improper installation, misuse, poor site conditions, faulty power, etc. ▫...
