Congratulations! on your purchase of the RemotePro
Remote Power System. Please take a moment to review this
Qwik Install Guide before use.
Key Features: Industrial Strength, Manageable, 24VDC and
48VDC Output, 7 Gigabit Passive PoE ports, 2.25A Aux Port,
48V 20A MPPT Solar, Automated Alerts, Removable Connec-
tions.
Safety:
For your own protection, follow these safety rules.
▫
Perform as many functions as possible on the ground
▫
Do not attempt to install on a rainy, windy or snowy day or if
there is ice or snow accumulation at the install site or if the
site is wet.
▫
Make sure there are no people, pets, etc. below if you are
working on a roof or ladder.
Recommended Tools: Phillips and Small Flat Blade Screwdriv-
ers, 6mm Hex key and 13, 19, 27, 34mm Wrenches
Please help preserve the environment and return
any used batteries to an authorized depot
RPAL48
155W RemotePro
®
®
155W
Advertisement
Table of Contents
Related Manuals for TYCON Solar RemotePro RPAL48
Summary of Contents for TYCON Solar RemotePro RPAL48

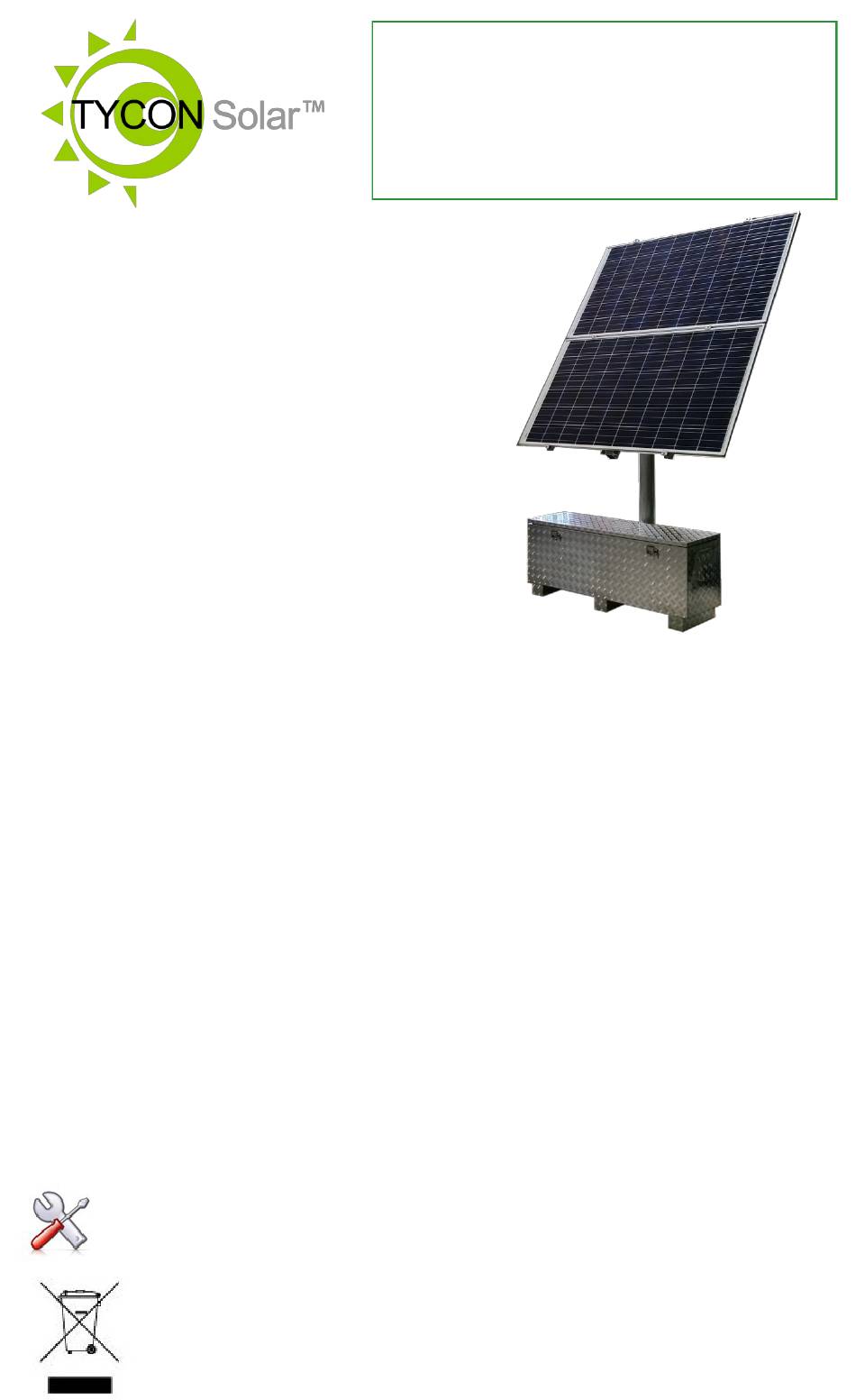

- Page 1 RPAL48 ® 155W RemotePro Wireless Base Stations ▫ and Client Devices Surveillance Cameras ▫ Remote Control ▫ Remote Lighting ▫ Off Grid Electronics ▫ ® Congratulations! on your purchase of the RemotePro 155W Remote Power System. Please take a moment to review this Qwik Install Guide before use.
- Page 2 Qwik Install STEP 1: Select install location where southern sky has no obstructions that could cause shading on solar panels. STEP 2: Pour a foundation big enough to hold solar mount anchors and also provide level support for battery box. See detailed instructions in solar mount instructions.
- Page 3 nect the battery cable to the Large Green Connector battery inputs and then to the batteries making sure to observe the proper polarity. STEP 7: Install the cable glands in the back of the enclosure and route the long solar panel cables through the cable gland and connect to the large green connector solar (PV) inputs.
- Page 4 STEP 9: Once the batteries and solar panels are all connected and wired to the Large Green Connector, Disconnect PV+ wire and plug the connector to the MPPT Solar Control- ler until the connector latches click into place. The Battery Charging LED should light up for about 60 seconds.
- Page 5 controlled fan and vents on the ends of the enclosure. You should add the checking/cleaning of the filters during any routine maintenance cy- cle but at least annually. ® 4. BATTERY MAINTENANCE: The batteries used in the RemotePro systems don’t require any maintenance. They should last up to 5 years in normal use.
- Page 6 E. There is no power at the solar controller? Check the battery cable fuse. Check the controller fuse. Measure battery voltage at the solar controller it should be >9V. If less than 9V then batteries will need to be charged with an external charger to bring the volt- age up to normal operating range of the controller.
- Page 7 SPECIFICATIONS Subject to change without notice RPAL48-720-720 Battery Capacity 720Ah Rated Load @ peak sun hrs 155W @ 6hrs sun Reserve Power @ Rated Load >28 hours Load Voltage (DC) 24V or 48V 200W Maximum Total Load Battery Voltage (DC) Valve Regulated Sealed Lead Acid / Battery Type Pure Lead Carbon AGM...
- Page 8 Limited Warranty The RPAL48 Remote Power System is supplied with a limited 36 month warranty which covers material and workmanship defects. This warran- ty does not cover the following: • Parts requiring replacement due to improper installation, misuse, poor site conditions, faulty power, etc. •...
