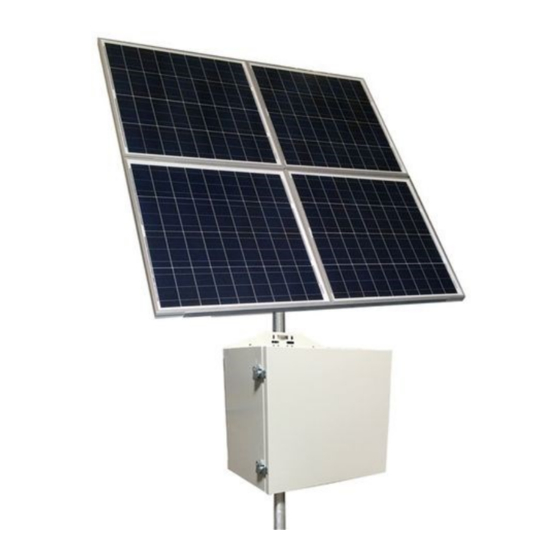

Congratulations! on your purchase of the RemotePro™ off-grid
remote power system. Please take a moment to review this Qwik
Install Guide before assembly or battery installation. Other in-
structions come with other components of this kit. Be sure to re-
view all instructions.
When following the instructions in this guide take extreme care
to avoid contact with overhead power lines, lights and power circuits.
Contact with power lines, lights or power circuits may be fatal. We rec-
ommend to install no closer than 20 feet to any power lines.
Safety:
For your own protection, follow these safety rules.
▫
Perform as many functions as possible on the ground
▫
Do not attempt to install on a rainy, windy or snowy day or if
there is ice or snow accumulation at the install site or if the
site is wet.
▫
Make sure there are no people, pets, etc. below when you are
working on a roof or ladder.
Recommended Tools: Phillips Screwdriver, 13mm and 10mm
Wrench, 5/16" nut driver, Flat Blade Screwdriver
Please help preserve the environment and return
used batteries to an authorized depot. Most auto
parts stores will pay you for old batteries.
Remote Power System
DANGER! Avoid Powerlines!
You Can Be Killed!
RPSTL 12/48M
RemotePro
®
Advertisement
Related Manuals for TYCON Solar RemotePro RPSTL 12
Summary of Contents for TYCON Solar RemotePro RPSTL 12

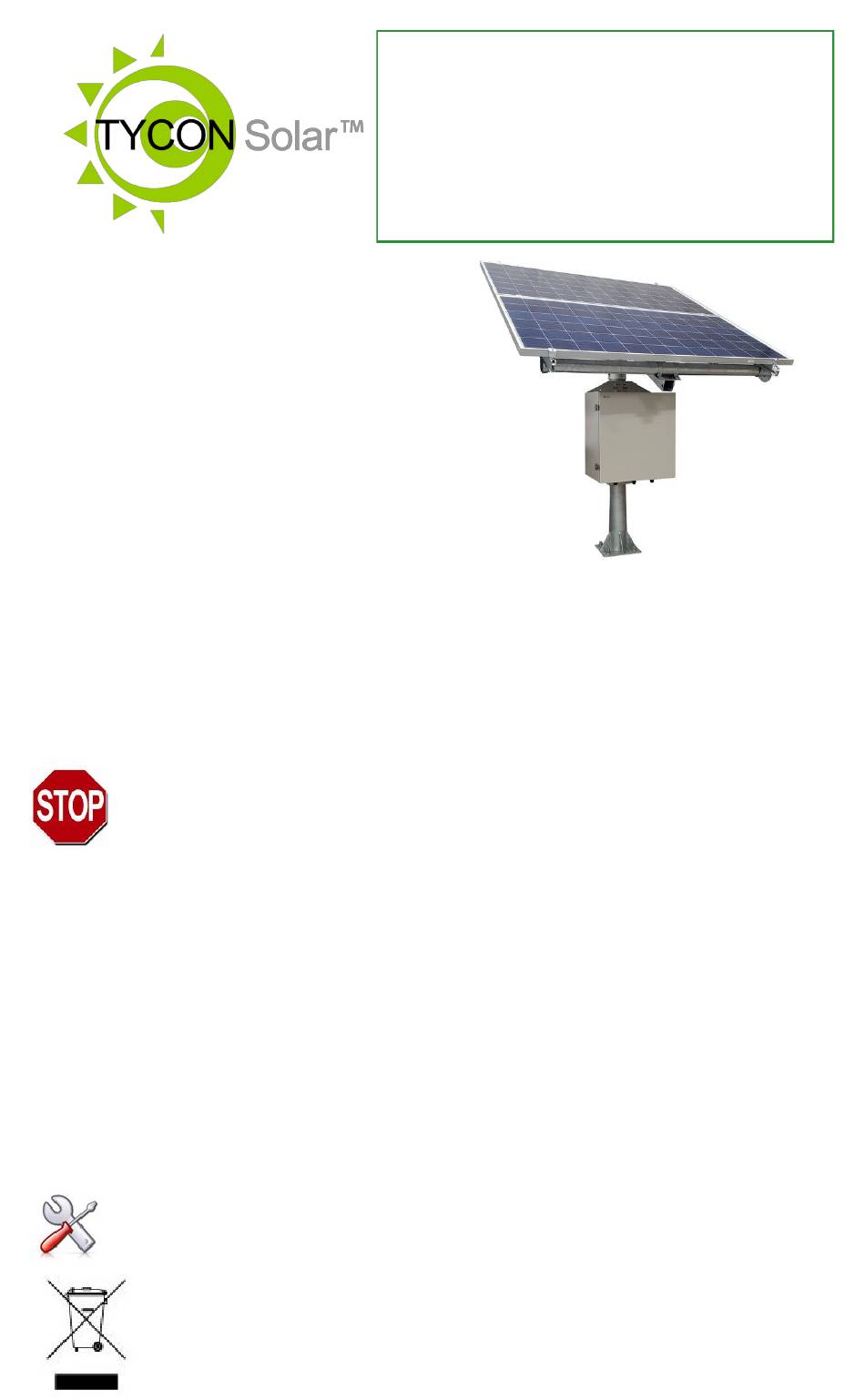

- Page 1 RPSTL 12/48M ® RemotePro Remote Power System Wireless Base Stations ▫ and Client Devices Surveillance Cameras ▫ Remote Sensors ▫ Remote Lighting ▫ Off Grid Electronics ▫ Congratulations! on your purchase of the RemotePro™ off-grid remote power system. Please take a moment to review this Qwik Install Guide before assembly or battery installation.
- Page 2 Qwik Install Note: There are two different styles of so- lar panel mounts used for these systems. For the 340W solar panel array the mount is a side of pole mount where the user supplies the 2-4”pole. For the 720W and 1440W solar panels, the mount is a top of pole mount which includes the pole.
- Page 3 STEP 5: Attach the included DIN Rail to the door using hardware pro- vided. STEP 6: Install 4 cable feedthroughs to the bottom of the enclosure. TIP: There are multiple cable gland feedthrough in the bottom of the enclosure. If you are not using any of the feedthrough you can cut a short piece of wire, put it through the cable gland and tighten the cable gland on the wire to seal it.
-
Page 4: Important Note
Important Note: The MPPT Controller ships with AUTO detection of battery voltage enabled. We suggest changing this to a fixed 24V, if using a 24V battery configuration, or fixed 48V, if using 48V configuration, so that the system can recover automatically if, by chance, the batteries get drained completely. - Page 5 720W Two Panel Configuration for 12V or 24V or 48V Battery Configurations 1440W Four Panel Configuration for 24V or 48V Battery Configurations...
- Page 6 CAUTION: Be sure to connect the battery to the controller first and dis- connect it last. Connecting solar panels to the controller without the bat- tery connected could damage the controller.
- Page 9 TECH CORNER Additional Information you may find useful 1. CONTROLLER: The 60A MPPT controller turns off power to the 30A load if the voltage gets too low and automatically turns the load power back on when the voltage recovers. This protects battery from overdis- charge and increases battery life and performance.
-
Page 10: Troubleshooting
8. TROUBLESHOOTING: A. There is no load output from the controller —If battery voltage is too low the charge controller will turn off the load outputs. On a 12V battery system the load will turn off if battery is <11V. On a 24V bat- tery system the load will turn off at <22V. -
Page 11: Specifications
SPECIFICATIONS Subject to change without notice Battery Capacity (12V) 200 or 400Ah Reserve Power @ Rated Load >24 hours Load Output (unregulated) 12V 30A 24V 30A 48V 30A Battery Voltage (DC) Valve Regulated Sealed Lead Acid Battery Type Battery Life 5 Years 60A MPPT—Temperature Compen- Controller Type... -
Page 12: Limited Warranty
Limited Warranty ® The RemotePro products are supplied with a limited 36 month warran- ty which covers material and workmanship defects. This warranty does not cover the following: ▫ Parts requiring replacement due to improper installation, misuse, poor site conditions, faulty power, etc. ▫...
