Nexmosphere XF-P3W Product Manual

Table of content

1. General

2. Product overview

3. Functionality and API commands
3.1 Pair to EM-F base station
3.2 Pick-up and place-back detection
3.3 Auto-shutdown during transport
3.4 Unpair from EM-F base station
4. Installation requirements and guidelines
4.1 Connection Diagrams
4.2 Hardware integration guidelines
5. Settings
6. Quick test
1. General
The XF wireless pick-up sensors can be placed in - or attached to - an object to sense whether it is moving or laying still.
Typically, this feature is used to detect if an object, such as merchandize in a store, is picked up or placed back. This document
provides explanation of the available functionalities and instructions on how to install and integrate the sensor into your
digital signage installation.
The information in this document is created for users who are familiar with the Nexmosphere API and are able to control a
basic setup with a Nexmosphere API controller. If this is not the case yet, please read the general documentation on the
Nexmosphere serial API first.

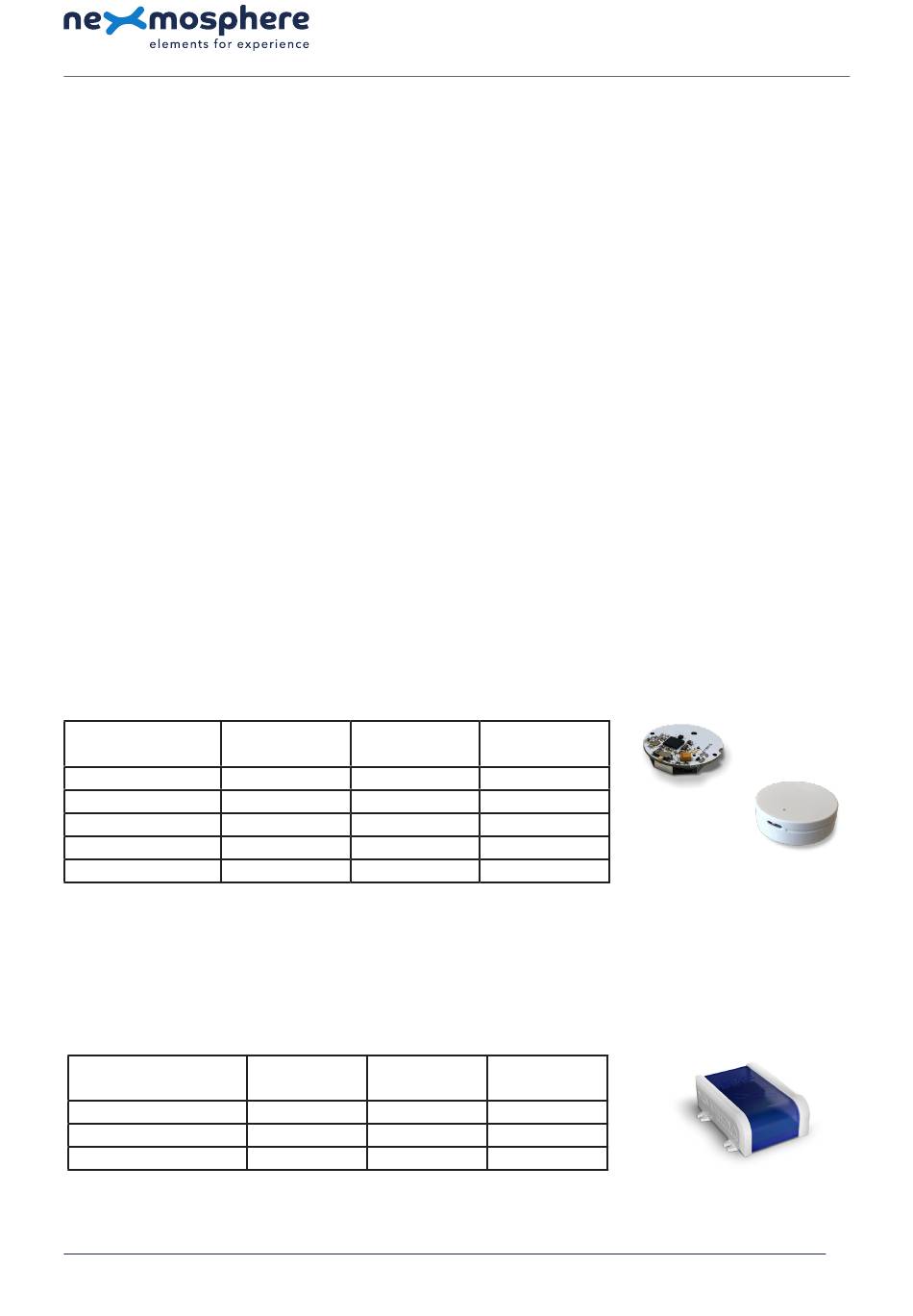

2. Product overview
The XF-P3 wireless pick-up sensor is available in 3 variations:
Pick-up detection
Place-back detection
Color housing
Battery included
Battery replacement by Nexmosphere
The XF-P3 sensor utilizes a 3-axis accelerometer to measure rotation and detect whether it is moving or laying still. It is
powered with a CR2032 battery and can be switched on or off via a physical switch.
The sensor is paired to a Wireless X-talk channel on an EM-F base station. At each pick-up or place-back detection, the
sensor will send a wireless message indicating the status of the sensor. The communication protocol between the XF-P3
sensor and EM-F base station is ANT+. The EM-F base station is available in 3 models:
Assembled onto XM-350
Channel LEDs
Wireless X-talk channels
This document will focus mainly on the functionalities of the XF-P3 Wireless pick-up sensor. For more information on the
EM-F base stations, please see the respective Quick Start Guides.
N e x m o s p h e r e
L e H a v r e 1 3 6
5 6 2 7 S W E i n d h o v e n • T h e N e t h e r l a n d s
XF-P3W XF-P3B
✔ ✔
✔ ✔
white black
✔ ✔
by Nexmosphere
EM-F1 EM-F4
✔ ✔
✔ ✔
1 4
T + 3 1 4 0 2 4 0 7 0 7 0
E s u p p o r t @ n e x m o s p h e r e . c o m
XF RANGE | WIRELESS PICK-UP SENSORS
XF-P3N
✔
XF-P3N
✔
no housing
✖
by customer
EM-F8
✔
✔
8
© 2023 Nexmosphere. All rights reserved. v1.0 / 07-23
All content contained herein is subject to change without prior notice
PRODUCT MANUAL
1
1
2
2
3
4
4
5
5
6
7
8
XF-P3W
EM-F
1
