1. General
The Nexmosphere XT-EF Series offers E-field sensors in various sizes which are able to detect touchless input from the
user. This document provides explanation of the available functionalities and instructions on how to install and integrate the
sensor into your digital signage installation.
The information in this document is created for users who are familiar with the Nexmosphere API and are able to control a
basic setup with a Nexmosphere API controller. If this is not the case yet, please read the general documentation on the
Nexmosphere serial API first.
2. Product overview
The XT-EF Series consists out of 4 products:

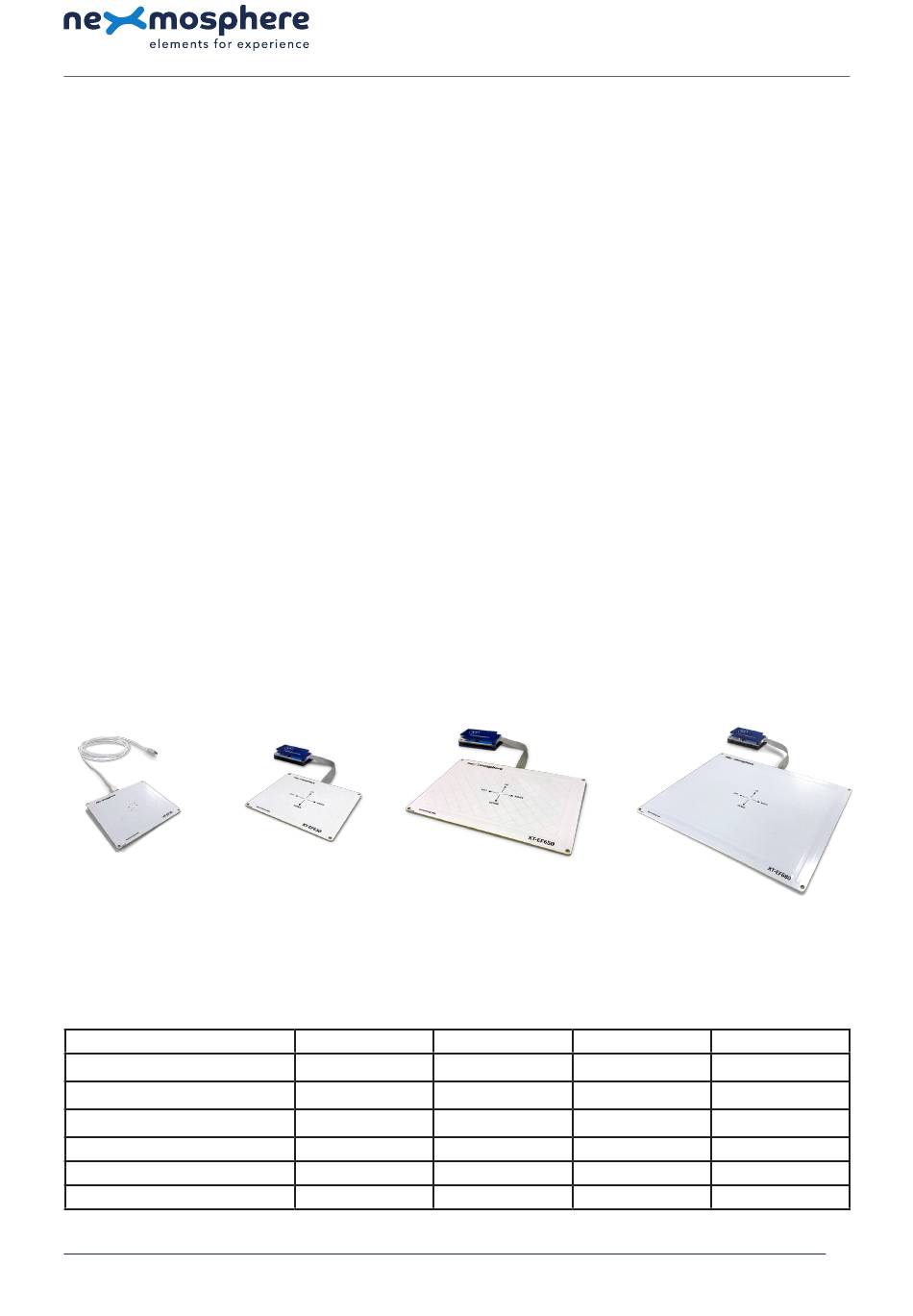

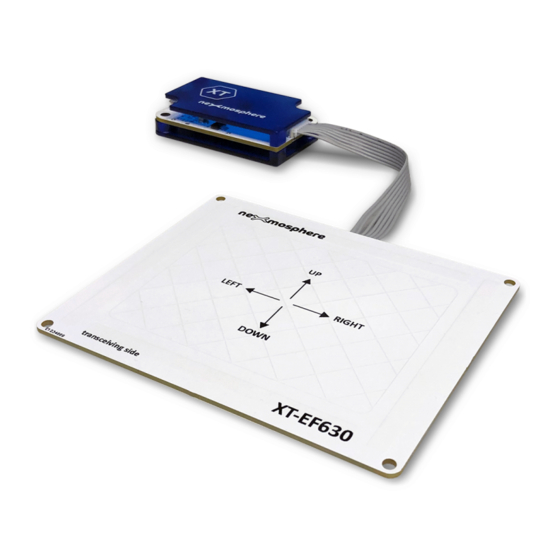

XT-EF30
All XT-EF sensors feature AirButton detection which will trigger whenever a person's hand either enters or leaves the sensor's
detection field. The XT-EF630, XT-EF650 and XT-EF680 also offer AirGesture detection which includes detecting AirSwipes
and AirWheels. The detection range of the sensors varies with the size.
AirButton detection
AirGesture detection
Integrated sensor driver
Detection range AirButton
Detection range AirGesture
Sensor dimensions (L x W)
N e x m o s p h e r e
L e H a v r e 1 3 6
5 6 2 7 S W E i n d h o v e n • T h e N e t h e r l a n d s
XT-EF630
XT-EF30
✔
✖
✔
up to130mm
✖
110x90mm
T + 3 1 4 0 2 4 0 7 0 7 0
E s u p p o r t @ n e x m o s p h e r e . c o m
XT-EF SERIES | AIR GESTURE SENSOR
XT-EF650
XT-EF630
✔
✔
✖
up to 130mm
up to 80mm
110x90mm
All content contained herein is subject to change without prior notice
PRODUCT MANUAL
XT-EF680
XT-EF650
XT-EF680
✔
✔
✖
up to 150mm
up to170mm
up to 100mm
up to 140mm
160x110mm
200x160mm
© 2020 Nexmosphere. All rights reserved. v1.0 / 11-20
1
1
2
2
3
4
5
5
5
6
9
10
✔
✔
✖
1
Advertisement
Table of Contents
Related Manuals for Nexmosphere XT-EF Series
Summary of Contents for Nexmosphere XT-EF Series
-
Page 1: Table Of Contents
The information in this document is created for users who are familiar with the Nexmosphere API and are able to control a basic setup with a Nexmosphere API controller. If this is not the case yet, please read the general documentation on the Nexmosphere serial API first. -
Page 2: Functionality And Api Commands
3.1 - AirButton The XT-EF Series sensors can detect when a hand is placed above the sensor (both far and near) as well as when it leaves the detection field. The API output for these triggers is as follows:... -
Page 3: Airswipe
PRODUCT MANUAL | XT-EF SERIES AIR GESTURE SENSOR 3.2 - AirSwipe Swipe gesture The XT-EF Series can detect swipe gestures within the LEFT detection field of the sensor. LEFT RIGHT The API output for these triggers is as follows: DOWN... -
Page 4: Airwheel
PRODUCT MANUAL | XT-EF SERIES AIR GESTURE SENSOR 3.3 - AirWheel The XT-EF Series can detect circular gestures ("AirWheels") Air Wheel Clockwise within the detection field of the sensor. The output for AirWheel detection can be set to two different modes: "incremental"... -
Page 5: Installation Requirements And Guidelines
Grounding The XT-EF Series sensors transceives an electrical field and measures changes within that field. Based on these changes, it can detect AirButton and AirGesture input. In order for the electrical field to remain stable, the sensor needs to be grounded. - Page 6 4.3 Hardware integration guidelines Top panel material The XT-EF Series sensor can be installed behind any non-metal top panel, creating a completely invisible solution. The maximum recommended thickness for the XT-EF30, XT-EF630 and XT-EF650 is 22mm for acrylic or glass, and 18mm for wood.
- Page 7 PRODUCT MANUAL | XT-EF SERIES AIR GESTURE SENSOR Double glazing The XT-EF sensors do not work behind most types of double glazing used to insulate indoor environments from outdoor environments (e.g. double glazing used in windows or doors at store fronts). The reason for this is that most modern types of double glass have a very thin invisible metal foil inside to reflect heat.
- Page 8 PRODUCT MANUAL | XT-EF SERIES AIR GESTURE SENSOR Positioning of sensor The positioning of the sensor (height, angle and orientation) has a significant impact on how a person executes the AirGestures and -as a results- how well the XT-EF sensor is able to detect those gestures. Although we always recommend to test what works best for your application, below are some general guidelines as reference.
- Page 9 PRODUCT MANUAL | XT-EF SERIES AIR GESTURE SENSOR 5 - Settings The XT-EF Series has multiple settings which determine the behaviour and output of the sensor. The settings can be adjusted by sending X-talk setting commands via the API. Setting 1: Status LED behaviour...
- Page 10 PRODUCT MANUAL | XT-EF SERIES AIR GESTURE SENSOR 6. Quick test In order to test if the XT-EF sensor is installed correctly, please follow the test procedure below: Step 1 - Setup Grounded DC Power supply First, connect the XT-EF sensor to an Xperience controller.
Need help?
Do you have a question about the XT-EF Series and is the answer not in the manual?
