Nexmosphere X-EYE XY-116 Product Manual

Table of content
1. General
2. Product overview
3. Functionality and API commands
3.1 Presence & Proximity detection
4. Installation requirements and guidelines
4.1 Electrical installation requirements
4.2 Connection Diagrams
4.3 Hardware integration guidelines
5. Settings
6. Quick test

1. General

The X-Eye presence sensors can detect if a person or object is in front of the sensor and - if so - indicate the distance
of the person or object in relation to the sensor. This document provides explanation of the available functionalities and
instructions on how to install and integrate the sensor into your digital signage installation.
The information in this document is created for users who are familiar with the Nexmosphere API and are able to control a
basic setup with a Nexmosphere API controller. If this is not the case yet, please read the general documentation on the
Nexmosphere serial API first.

2. Product overview

The X-Eye Presence sensors are available in 3 different models:
XY-116
Each model has a specific detection range and sensor dimension:
minimum detection range
maximum detection range
beam angle

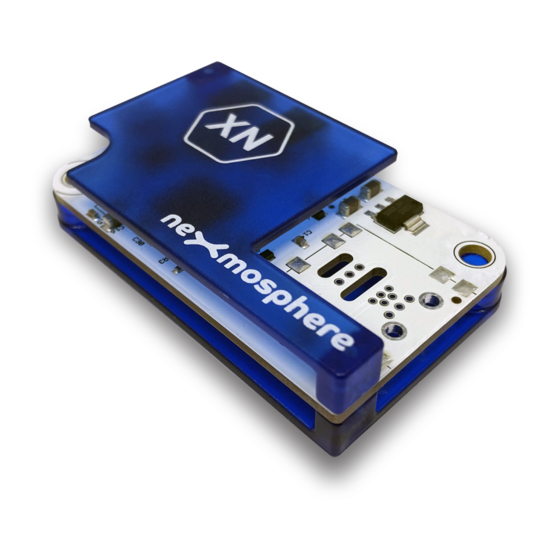

The X-Eye Presence sensor is also available as an embedded on-board interface
(micromodule) on the XN-135M3 controller. In this integrated cost-effective form factor,
the sensor can be connected directly to the XN-135M3 controller using a CA3-S4C
sensor cable. The functionality of the sensor is the same. The correlation of the product
codes is as follows:
XY-116 | XN135M31 (controller) + S-CM01 (sensor) + CA3-34C (sensor cable)
XY-146 | XN135M34 (controller) + S-CM04 (sensor) + CA3-34C (sensor cable)
XY-176 | XN135M37 (controller) + S-CM07 (sensor) + CA3-54C (sensor cable)
N e x m o s p h e r e
L e H a v r e 1 3 6
5 6 2 7 S W E i n d h o v e n • T h e N e t h e r l a n d s
XY-146
XY-116
5cm
80cm
5.5 °
T + 3 1 4 0 2 4 0 7 0 7 0
E s u p p o r t @ n e x m o s p h e r e . c o m
X-EYE | PRESENCE SENSOR
XY-146 XY-176
10cm 25cm
150cm 500cm
5.5 ° 5.5 °
© 2021 Nexmosphere. All rights reserved. v1.0 / 01-21
All content contained herein is subject to change without prior notice
PRODUCT MANUAL
XY-176
1
1
2
2
3
3
3
4
6
7
1
