vacuubrand MZ 1C Instructions For Use Manual

Chemistry diaphragm pumps
Hide thumbs Also See for MZ 1C:
Table of Contents

Advertisement

Quick Links

Download this manual

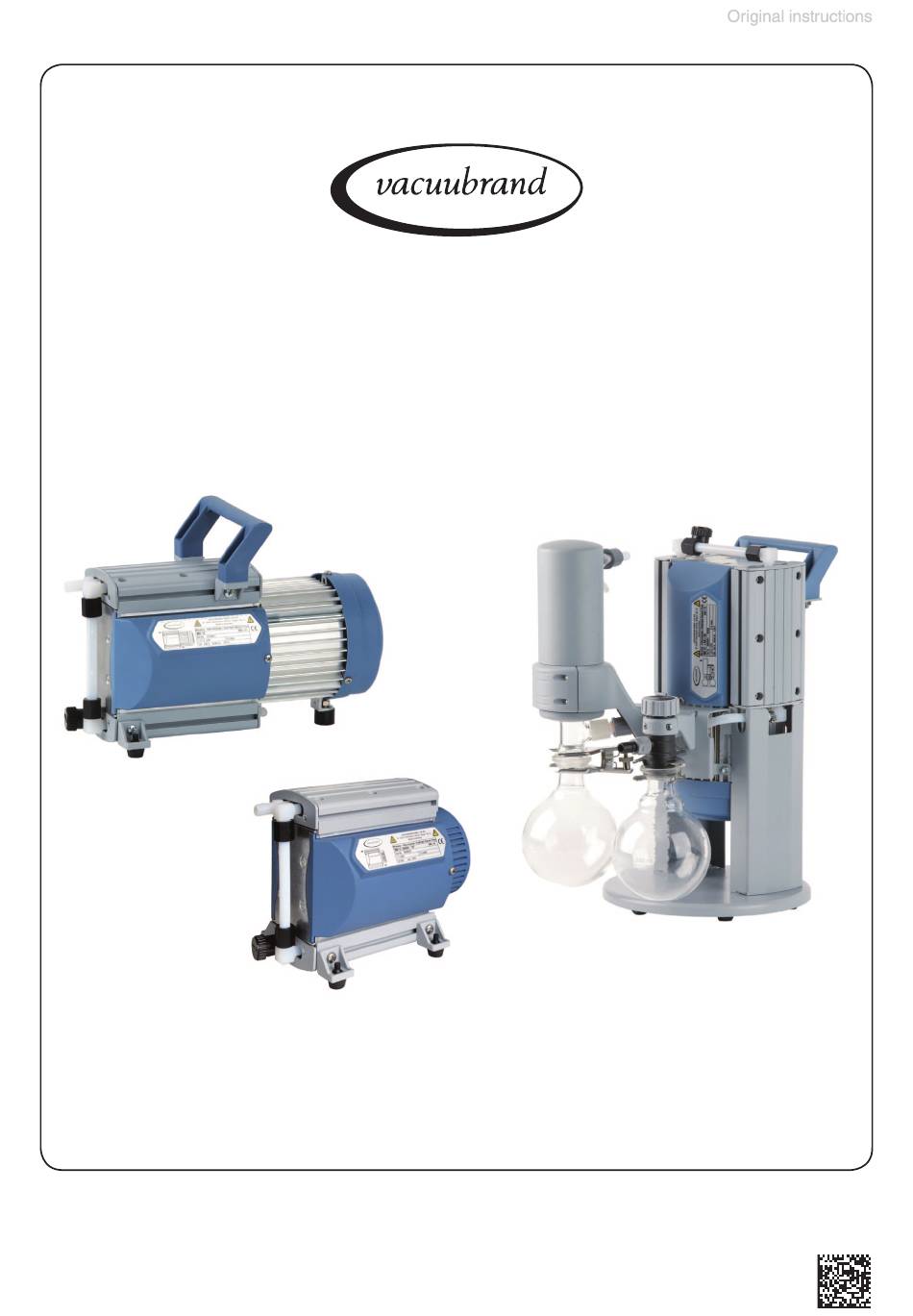

page 1 of 92
Technology for Vacuum Systems
Instructions for use
MZ 1C
MD 1C
MD 1C + AK + EK
MD 1C VARIO-SP
Chemistry diaphragm pumps

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MZ 1C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for vacuubrand MZ 1C

Summary of Contents for vacuubrand MZ 1C

  • Page 1 1 of 92 Technology for Vacuum Systems Instructions for use MZ 1C MD 1C MD 1C + AK + EK MD 1C VARIO-SP Chemistry diaphragm pumps...
  • Page 2 VACUU•LAN (US-Reg.No 3,704,401), VACUU•BUS , VACUU•CONTROL ® ® ® Peltronic , VARIO (US-Reg.No 3,833,788), VACUUBRAND (US-Reg.No ® ® ® 3,733,388) and also the shown company logos are registered trademarks of VACUUBRAND GMBH + CO KG in Germany and/or other countries.
  • Page 3 page 3 of 92 Achtung: Die vorliegende Betriebsanleitung ist nicht in allen EU-Sprachen verfügbar. Der Anwender darf die beschriebenen Geräte nur dann in Betrieb nehmen, wenn er die vorliegende Anleitung versteht oder eine fachlich korrekte Übersetzung der voll- ständigen Anleitung vorliegen hat. Die Betriebsanleitung muss vor Inbetriebnahme der Geräte vollständig gelesen und verstanden werden, und alle geforderten Maß- nahmen müssen eingehalten werden.
  • Page 4 page 4 of 92 Bemærk: Denne manual foreligger ikke på alle EU sprog. Brugeren må ikke be- tjene apparatet hvis manualen ikke er forstået. I det tilfælde skal en teknisk korrekt oversættelse af hele manual stilles til rådighed. Manual skal være gennemlæst og forstået før apparatet betjenes og alle nødvendige forholdsregler skal tages.
  • Page 5 page 5 of 92 Figyelem! Ez a kezelési utasítás nem áll rendelkezésre az EU összes nyelvén. Ha a felhasználó nem érti jelen használati utasítás szövegét, nem üzemeltetheti a készüléket. Ez esetben a teljes gépkönyv fordításáról gondoskodni kell. Üzembe helyezés előtt a kezelőnek végig kell olvasnia, meg kell értenie azt, továbbá az üzemeltetéshez szükséges összes mérést el kell végeznie.
  • Page 6 page 6 of 92 Attentie: Deze gebruiksaanwijzing is niet in alle talen van de EU verkrijgbaar. De gebruiker moet niet met dit apparaat gaan werken als voor hem/haar de gebruiks- aanwijzing niet voldoende duidelijk is. Bij gebruik van deze apparatuur is het nood- zakelijk een technisch correcte vertaling van de complete gebruiksaanwijzing te hebben.
  • Page 7 page 7 of 92 Varning: Denna instruktion är inte tillgänglig på alla språk inom EU. Användaren får inte starta utrustningen om hon/han inte förstår denna instruktion. Om så är fallet måste en tekniskt korrekt instruktion göras tillgänglig. Instruktionen måste läsas och förstås helt före utrustningen tas i drift och nödvändiga åtgärder göres.

  • Page 8: Table Of Contents

    page 8 of 92 Contents Safety information! ............10 Important information! ............... 10 General information ................12 Intended use..................12 Setting up and installing the equipment ..........13 Ambient conditions ................16 Operating conditions ................. 16 Safety during operation ..............18 Maintenance and repair..............
  • Page 9 page 9 of 92 Repair - Maintenance - Return - Calibration ....77 Warranty ................79 Health and safety clearance form ........80 EC Declaration of Conformity of the Machinery ....81 China RoHS ............... 85...

  • Page 10: Safety Information

    Make operating personnel aware of dangers arising from the pump and the pumped substances. VACUUBRAND disclaims any liability for inappropri- ate use of these pumps and for damage from failure to follow instructions contained in this manual.
  • Page 11 page 11 of 92 ➨ DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. + WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. • CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

  • Page 12: General Information

    page 12 of 92 General information Remove all packing material from the packing box. Re- NOTICE move the product from its packing-box and retain all pack- aging until the equipment is inspected and tested. Re- move the protective caps from the inlet and outlet ports and retain for future use.

  • Page 13: Setting Up And Installing The Equipment

    page 13 of 92 + Comply with all notes on correct vacuum and electri- cal connections; see section „Use and operation“, pg. + Do not use the pump to generate pressure. + The pumps are designed for ambient temperatures during operation between +50°F and +104°F (+10°C and +40°C).
  • Page 14 page 14 of 92 ➨ Pumps with 24 V DC motor: The pump has no on/off switch. The user has to provide a suitable line discon- nector. The supply cable (pumps with AC motor) may be fitted with a molded European IEC plug or a plug suitable for your local electrical supply.
  • Page 15 page 15 of 92 • Connect hoses gas tight at inlet and outlet of the pump. • Ensure that no foreign objects can be drawn into the pump. • Check the power source and the pump’s rating plate to be sure that the power source and the equipment match in voltage, phase, and frequency.

  • Page 16: Ambient Conditions

    page 16 of 92 operation. Notice if there is water condensation on cold surfaces. Secure coolant hoses at the hose nozzles (e.g., with hose clamp) to prevent their accidental slipping. Comply with all applicable and relevant safety require- ments (regulations and guidelines). Implement the re- quired actions and adopt suitable safety measures.
  • Page 17 page 17 of 92 pumps in potentially explosive atmospheres. ➨ Pumps without the mark on the rating plate are ” ” not approved for the pumping of potentially explo- sive atmospheres. Do not pump potentially explo- sive atmospheres with those pumps. ➨...

  • Page 18: Safety During Operation

    page 18 of 92 between diaphragm and head cover. See section „Re- placing diaphragms and valves“, pg. 60). Inspect the pump chambers regularly and clean if necessary. • Consider interactions and chemical reactions of the pumped media. Ensure that the materials of the pump’s wetted parts are compatible with the pumped substances, see section „Technical data“, pg.
  • Page 19 page 19 of 92 vider. + Prevent any part of the human body from coming into contact with vacuum. + Make sure that the exhaust pipeline cannot become blocked. + Check the overpressure safety relief device at the ex- haust waste vapor condenser at appropriate intervals. + Comply with applicable regulations when disposing of chemicals.
  • Page 20 page 20 of 92 sure at the gas ballast valve. Pumped gases or con- densate might be expelled if the valve is open. If an in- ert gas supply is connected to the gas ballast, ensure that its inlet pipeline is not contaminated. • Pay attention to the safety symbol ”hot surfaces”...

  • Page 21: Maintenance And Repair

    For details and for the online ”Instructions for repair” man- ual see www.vacuubrand.com. In normal use, the lifetime of the diaphragms and valves is typically 15,000 operating hours. Bearings have a typi- cal durability of 40000 h.
  • Page 22 page 22 of 92 Ensure that the pump is completely decontaminated before maintenance commences. + Take adequate precautions to protect people from the effects of dangerous substances if contamination has occurred. Use appropriate protective clothing, safety goggles and protective gloves. + Wear parts have to be replaced regularly. + Never operate a defective or damaged pump.

  • Page 23: Important Information: Equipment Marking (Atex)

    The overall category of the equipment depends on the connected com- ponents. If the connected components do not comply with the classifi- cation of the VACUUBRAND equipment, the specified category of the VACUUBRAND equipment is no longer valid. Vacuum pumps and vacuum gauges in category 3 are intended for con- nection to equipment in which during normal operation explosive atmo- spheres caused by gases, vapors or mists normally don’t occur;...
  • Page 24 page 24 of 92 • The equipment is designated for an ambient and gas inlet temperature during operation of +10 to +40°C. Never exceed these ambient and gas inlet temperatures. If pumping / measuring gases which are not potentially explosive, extended gas inlet temperatures are permissible. See instructions for use, section “Gas inlet temperatures”...

  • Page 25: Technical Data

    25 of 92 Technical data MD 1C MD 1C Type MD 1C + MZ 1C VARIO-SP AK + EK Maximum pumping speed 0.77 / 0.88 0.44 / 0.5 50/60 Hz (ISO 21360) (1.3/ 1.5 (0.75 /0.9 (1.8) Ultimate vacuum (absolute)
  • Page 26 26 of 92 MD 1C MD 1C Type MD 1C + MZ 1C VARIO-SP AK + EK current limi- tation thermal cutout, manual (temperature reset Motor protection sensor on MD 1 C/US: additional the circuit fuse 2.5AT board) fuse 7 AF...

  • Page 27: Gas Inlet Temperatures

    27 of 92 MD 1C MD 1C Type MD 1C + MZ 1C VARIO-SP AK + EK Weight approx. lbs. (kg) 15.2 (6.9) 13.2 (6.0) 9.3 (4.2) MD 1C C/US lbs. (kg) 15.7 (7.1) MD 1C + AK + EK lbs.

  • Page 28: Wetted Parts

    page 28 of 92 Wetted parts Components Wetted materials Pump Housing cover insert PTFE carbon reinforced Head cover ETFE Diaphragm clamping disc ETFE carbon fiber reinforced Diaphragm PTFE Valves FFKM Inlet / outlet ETFE Fittings ETFE Tubing PTFE Pumping unit Inlet pumping unit Outlet pumping unit Distribution head (inlet)

  • Page 29: Abbreviations

    page 29 of 92 Abbreviations Separator for condensates, catchpot at inlet or outlet Exhaust vapor condenser ETFE: Ethylene/Tetrafluoroethylene FFKM: Perfluoro elastomer GND: Ground PET: Polyethylene terephthalate Polypropylene PPS: Polyphenylene sulfide PTFE: Polytetrafluoroethylene PWM: Pulse width modulation Pump parts Position Component Position Component Chemistry diaphragm...
  • Page 30 page 30 of 92 MD 1C MD 1C C/US only pump with dual-voltage motor...
  • Page 31 31 of 92 MZ 1C...
  • Page 32 page 32 of 92 MD 1C + AK + EK...
  • Page 33 page 33 of 92 MD 1C VARIO-SP Ensure sufficient venting of the pump!
  • Page 34 page 34 of 92 Only pumps with dual-voltage motor: Voltage selection switch: 1. Disconnect the electrical power cord. 2. Use a screw driver to ad- just the voltage selection switch to the supply volt- age: ”115/120” corresponds to 100-120 V and ”230/240”...

  • Page 35: Replacing The Device Fuse (Only Md 1C C/Us)

    page 35 of 92 Replacing the device fuse (only MD 1C C/US) ➨ Switch off the pump. ➨ Disconnect the electrical power cord before un- screwing the fuse holder. Identify and eliminate the cause of failure before switch- ing on the pump again. ➨...
  • Page 36 page 36 of 92 Replacing the fuse on the circuit board (only MD 1C VARIO-SP) ➨ Separate the pump from mains. ➨ Wait until live parts are discharged. ➨ Identify and eliminate the cause of failure prior to re- start. Attention: Electrostatic sensitive device! All work related to the circuit board must be carried out in a ESD protected area or under...
  • Page 37 page 37 of 92 Remove the defective fuse with a tweezer and replace by a new one of the same type. Layout circuit board Fuse F 7 AF, 125 V, 2 x 7 mm Assemble cover after replac- ing the fuse. Screw cover.

  • Page 38: Use And Operation

    page 38 of 92 Use and operation Installation Remove the product from its packing-box. Read the document ”Safety information for Safety information for vacuum equipment vacuum equipment” and observe the in- structions contained therein! Sicherheitshinweise für Vakuumgeräte Safety information for vacuum equipment Avis de sécurité...
  • Page 39 page 39 of 92 • Reduce the transmission of vibration. Pre- vent mechanical load due to rigid pipelines. Insert elastic hoses or flexible elements as couplings between the pump and rigid pipes. Note: Flexible elements will compress or flatten when evacuated if not designed for use under vacuum.

  • Page 40: Separator (Ak) At The Inlet

    page 40 of 92 • A power failure may cause accidental ventilation of the pump, especially if the gas ballast valve is open. If this constitutes a potential source of danger, take appropri- ate safety measures. When assembling, ensure vacuum-tightness. After as- NOTICE sembly, check the whole system for leaks.

  • Page 41: Exhaust Waste Vapor Condenser (Ek) At The Outlet

    page 41 of 92 + Connect a gas-tight exhaust line at the pump outlet if necessary. Always vent exhaust gases appropriately (e.g., into a fume hood). ✔ + Never block the gas outlet. The exhaust line must always be free of obstructions (no back pressure) to ensure an unimpeded discharge of gas.
  • Page 42 page 42 of 92 Catchpot: The catchpot is coated with a protective layer over- to protect against shattering in case of break- pressure age or implosion. safety ➨ Assemble the catchpot at the exhaust waste relief device vapor condenser using a joint clip. + Check the overpressure safety relief device at the exhaust waste vapor condenser regu- larly;...

  • Page 43: Electrical Connection

    page 43 of 92 • Only install the optional coolant valve in the supply line of the exhaust waste vapor con- ✘ denser. • Note: Install the hoses of the cooling system ✔ in a way to avoid the flow / dripping of con- densed water onto the pumping unit (espe- cially cables and electronic parts, see also IP degree of protection, „Technical data“,...
  • Page 44 page 44 of 92 Pump with dual-voltage motor: • Check the power source and the pump’s rating plate to be sure that the power source and the equipment match in voltage, phase, and frequency. • Check that the voltage selection switch is positioned correctly.

  • Page 45: Controlling The Md 1C Vario-Sp

    page 45 of 92 Controlling the MD 1C VARIO-SP Connecting the cable: The connecting cable contains four differently colored wires. wire in control line assignment +24V DC (supply voltage, max 7A) blue GND (24V) PWM: 5V to max. 24V or voltage input: 0V to 10V DC (max.
  • Page 46 page 46 of 92 Attention: Electrostatic sensitive device! All work related to the circuit board must be carried out in a ESD protected area or under ESD protective measures! size 2 Slide the cover aside carefully and only as far as necessary.
  • Page 47 page 47 of 92 Layout of circuit board terminal board (ST1A / ST1B), connection of control line trimming potentiometer (supply voltage and control signal; see print on the circuit board) Terminal board (Connection of the control line on the circuit board) Voltage supply: Terminal ST1A Supply voltage...
  • Page 48 page 48 of 92 External setting of the motor speed via voltage input: Voltage input: analog 0V ..10V DC (max. 24V !) ➨ Connect the black and the white wire ac- cordingly to the terminal board ST1B (see table above). 0V to 10V: Linear increase of the motor speed (0 rpm (at 0V) to 2400 rpm (at 10V))
  • Page 49 page 49 of 92 Notes regarding the motor speed Pumping at high motor speed increases the pumping speed of the pump. Ensure sufficient cooling of the pump! Pumping at low motor speed increases the lifetime of diaphragms and valves! The pump attains the best ultimate vacuum in the low speed range be- tween approx.

  • Page 50: During Operation

    page 50 of 92 During operation ➨ Vent and dispose of potentially dangerous gases or vapors at the outlet of the pump appropriately. + Due to the high compression ratio, the pump might generate overpressure at the outlet. Check pressure compatibility with system components (e.g., exhaust tubing or exhaust valve) at the outlet.
  • Page 51 page 51 of 92 Do not start the pump if the pressure difference between NOTICE inlet and outlet ports exceeds max. 16.0 psi (1.1 bar). Attempts to start the pump at higher pressure difference may cause stalling and damage of the motor. If pumping condensable vapors (water vapor, gas ballast solvents, etc.), let the pump run with gas bal-...

  • Page 52: Important Notes Regarding The Use Of Gas Ballast

    page 52 of 92 Pumps with DC motor: NOTICE A temperature sensor at the circuit board protects the mo- tor of pumps with 24V DC motor. In case of excess tem- perature, the pump is switched off. Note: Only manual reset is possible. Disconnect the pump from the power source.
  • Page 53 (MD 1C / MD 1C VARIO-SP), re- spectively towards the pump (MD 1C + AK + EK) or away from the inlet (MZ 1C) (see MD 1C / MD 1C VARIO-SP figures).

  • Page 54: In Case Of Condensation

    Install a level sensor max. (see „Accessories“, pg. 56) for monitoring, if necessary (VACUUBRAND controller CVC 3000 or VNC 2 is required). The maximum liquid level is at approximately 80% of the total filling level to avoid problems when removing the catchpots.

  • Page 55: Shutdown & Storage

    page 55 of 92 Shutdown & storage The pump can be switched off under vacuum. Short-term: Condensate? - Has the pump been exposed to conden- sate? O ➨ I Allow the pump to continue to run at atmo- (5-10min) spheric pressure for a few minutes. - Has the pump been exposed to media which may damage the pump materials or form deposits?

  • Page 56: Accessories

    page 56 of 92 Accessories Vacuum gauge DVR 2pro ......20682906 Vacuum hose (caoutchouc) I.D. 3/8” (10 mm ID) ........20686002 Silencer for hose nozzle 3/8” (DN 10 mm) ..........20636588 Attention: Dust-laden gases, deposits and condensed solvent vapor can restrict air flow out the silencer. The resultant back pressure can lead to damage of pump bear- ings, diaphragms, and valves.
  • Page 57 ® with PTFE tubing, DN 10/8 mm. All VACUU•LAN modules, pumps and connectors ® are designed for compatibility with this tubing. For additional accessories such as vacuum valves, small-flange components, vac- uum gauges or vacuum controllers, refer to www.vacuubrand.com...

  • Page 58: Troubleshooting

    page 58 of 92 Troubleshooting Fault Possible cause Remedy ❑ Pump does not ➨ Electrical power cord ✔ Plug in power cord. start or stops im- not plugged in, electri- Check fuse. Check elec- mediately. cal supply failure? trical supply voltage. ➨...
  • Page 59 page 59 of 92 Fault Possible cause Remedy ❑ Pump too noisy. ➨ Atmospheric or high ✔ Connect hose or silencer pressure at the pump to pump outlet. Be careful inlet? not to cause outlet over- pressure, especially with condensable vapors. ➨...

  • Page 60: Replacing Diaphragms And Valves

    page 60 of 92 Replacing diaphragms and valves + Please read section ”Replacing diaphragms and valves” com- pletely before starting maintenance. The pictures may show other versions of pumps. This does not change the method of replacing diaphragms and valves. ➨...
  • Page 61 Service kit for MD 1C (diaphragms, valves, diaphragm key) ......20696828 Service kit for MZ 1C (diaphragms, valves, diaphragm key) ......20696838 + Service only one side of the pump at a time to avoid the mixing of parts.
  • Page 62 page 62 of 92 Tools required (metric): - Diaphragm key width 46 mm (included in service kit) - Open end wrench width 14 / 17 mm - 4 mm wide Allen key Additionally for MD 1C: - Phillips screwdriver size 2 Additionally for MD 1C + AK + EK: - 2.5 mm wide slotted screwdriver - Open end wrench width 10 mm...

  • Page 63: Checking Diaphragms And Valves

    page 63 of 92 Checking diaphragms and valves MD 1C + AK + EK MD 1C + AK + EK 2.5 mm MD 1C + AK + EK 10 mm...
  • Page 64 page 64 of 92 MD 1C size 2 17 mm 14 mm max. 1/4...
  • Page 65 page 65 of 92 Position Component Housing cover with insert Valves Head cover Diaphragm clamping disc with square head screw Diaphragm Diaphragm support disc Washers Connecting rod Housing...
  • Page 66 page 66 of 92 + Clean.

  • Page 67: Replacing The Diaphragm

    page 67 of 92 20696828 / 20696838 Replacing the diaphragm...
  • Page 68 page 68 of 92 + Pay attention to number of washers!
  • Page 69 page 69 of 92 + Pay attention to number of washers!

  • Page 70: Replacing The Valves And Assembling The Pump Heads

    page 70 of 92 Replacing the valves and assembling the pump heads...
  • Page 71 page 71 of 92...
  • Page 72 page 72 of 92 + Screw in diagonally at first slightly, then tighten. + 4.4 ft.lbf (6 Nm) + Maintain all pump heads in the same way. 14 mm...
  • Page 73 page 73 of 92 17 mm MD 1C size 2 MD 1C + AK + EK 10 mm...

  • Page 74: Assembling The Connecting Hose (Md 1C + Ak + Ek)

    page 74 of 92 Assembling the connecting hose (MD 1C + AK + EK)
  • Page 75 page 75 of 92 Checking the ultimate vacuum ➨ A fter any intervention at the equipment (e.g., repair / maintenance) the ultimate vacuum of the pump has to be checked. Only if the pump achieves its specified ultimate vacuum, the pump’s leak rate is low enough to ensure that no explosive atmospheres will occur in the inte- rior of the equipment.

  • Page 76: Replacing The Overpressure Safety Relief Device

    page 76 of 92 Replacing the overpressure safety relief device at the exhaust waste vapor condenser...
  • Page 77 page 77 of 92 20638821 20638821...

  • Page 78: Spare Parts Md 1C + Ak + Ek

    page 78 of 92 Spare parts MD 1C + AK + EK Catchpot 0.52 qt (500 ml), coated ......20638497 O-ring 28 x 2.5 ..........20635628 at the spherical ground joint of the catchpot at the inlet...

  • Page 79: Repair - Maintenance - Return - Calibration

    3 or 4. These devices cannot be checked, maintained or re- paired. Also decontaminated devices must not returned to VACUUBRAND due to a residual risk. The same conditions apply to on-site work. No repair, maintenance, return or calibration is possi- ble unless the correctly completed health and safety clearance form is returned.
  • Page 80 page 80 of 92 If you do not wish a repair on the basis of our quotation, the device may be returned to you disassembled and at your expense. In many cases, the components must be cleaned in the factory prior to repair. For cleaning we use an environmentally friendly water based process.

  • Page 81: Warranty

    81 of 92 Warranty VACUUBRAND shall be liable for insuring that this prod- uct, including any agreed installation, has been free of de- fects at the time of the transfer of risk. VACUUBRAND shall not be liable for the consequences...

  • Page 82: Health And Safety Clearance Form

    * Contact the VACUUBRAND service absolutely before dispatching the device. ** Devices which have been in contact with biological substances of risk level 3 or 4 cannot be checked, main- tained or repaired. Also decontaminated devices must not returned to VACUUBRAND due to a residual risk. ☐...

  • Page 83: Ec Declaration Of Conformity Of The Machinery

    2011/65/EU Membranvakuumpumpe / Diaphragm vacuum pump / Pompe à membrane: Typ / Type / Type: MD 1C / MD 1C + AK + EK / MZ 1C Artikelnummer / Order number / Numéro d‘article: 20696600, 20696601, 20696602, 22613436 / 20696620, 20696621, 20696622 / 20696220, 20696222, 22615046 Seriennummer / Serial number / Numéro de série: Siehe Typenschild / See rating plate / Voir...
  • Page 84 Bevollmächtigter für die Zusammenstellung der technischen Unterlagen / Person authorised to compile the technical file / Personne autorisée à constituer le dossier technique: Dr. J. Dirscherl · VACUUBRAND GMBH + CO KG · Alfred-Zippe-Str. 4 · 97877 Wertheim · Germany Wertheim, 01.07.2018 .
  • Page 85 page 85 of 92 This certificate is only valid for pumps with the respec- tive mark (Licensed Test mark) on the pump rating plate.
  • Page 86 page 86 of 92 This certificate is only valid for pumps with the respec- tive mark (Licensed Test mark) on the pump rating plate.

  • Page 87: China Rohs

    China RoHS DECLARATION OF CONFORMITY – China RoHS 2 VACUUBRAND GMBH + CO KG has made reasonable efforts to ensure that hazardous mate- rials and substances may not be used in its products. In order to determine the concentration of hazardous substances in all homogeneous materials of the subassemblies, a “Product Conformity Assessment”...
  • Page 88 (Pb), mercury (Hg), cadmium (Cd), hexavalent chromium (Cr+VI), polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE). Products manufactured by VACUUBRAND may enter into further devices (e.g., rotary evaporator) or can be used together with other appliances (e.g., usage as booster pumps).
  • Page 89 page 89 of 92...
  • Page 90 page 90 of 92...
  • Page 91 page 91 of 92...
  • Page 92 Alfred-Zippe-Str. 4 · 97877 Wertheim / Germany T +49 9342 808-0 · F +49 9342 808-5555 info@vacuubrand.com · www.vacuubrand.com VACUUBRAND GMBH + CO KG - Technology for Vacuum Systems - © 2018 VACUUBRAND GMBH + CO KG Printed in Germany Manual-no.: 20901056 / 07/01/2018...
