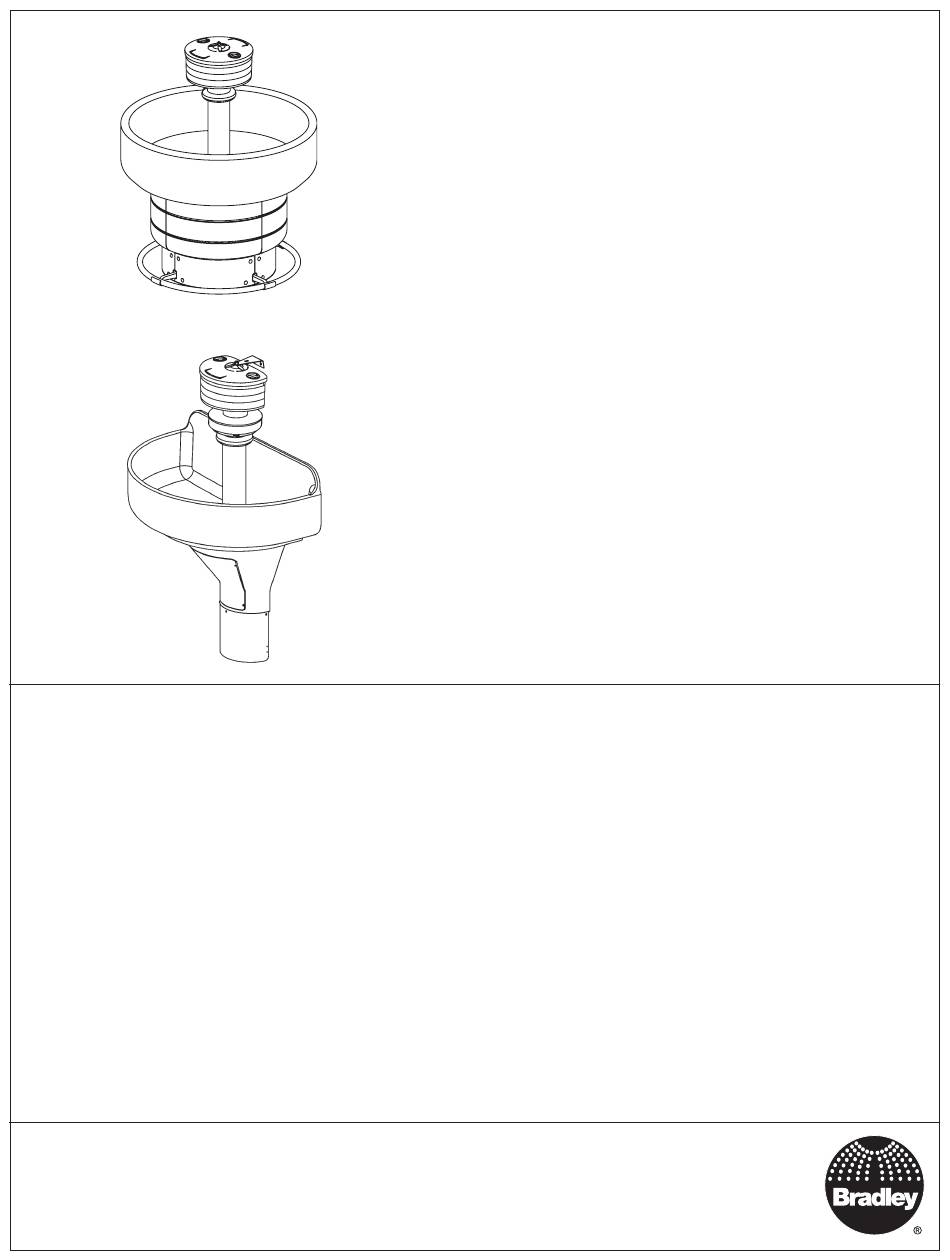

WF2605
WF3203
Make sure that all water supply lines have been flushed and then completely turned off before beginning
isntallation. Debris in the supply lines can cause valves to malfunction.
Turn OFF electrical supply to the unit before installation.
Main water supply to the unit should be "ON" at all times.
Read this installation manual completely to ensure proper installation, then file it with the owner or
maintenance department. Compliance and conformity to drain requirements and other local codes and
ordinances is the responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging
material. If any parts are missing, do not begin installation until you obtain the missing parts.
Product warranties and parts information may also be found under "Products" on our web site at bradleycorp.com.
215-1833-10 Rev. A; ECN 17-00-006B
© 2017 Bradley
Page 1 of 2
11/21/2017
Installation

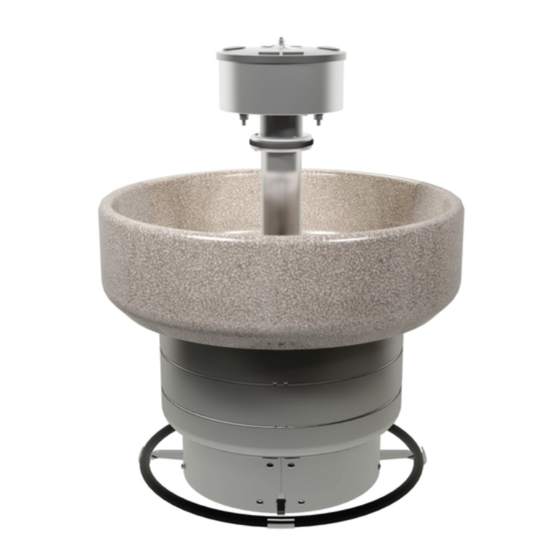

WF2500 Series Terreon Classic
WF2600 Series Terrazzo
WF2700 Series Stainless Steel
WF2800 Series Bradstone
WF3200 Series Terreon Deep Bowl
TDB3100 Series Terreon Deep Bowl
WARNING
NOTICE
IMPORTANT
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
bradleycorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Terreon Classic WF2500 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradley Terreon Classic WF2500 Series

Summary of Contents for Bradley Terreon Classic WF2500 Series

  • Page 1 Product warranties and parts information may also be found under ”Products” on our web site at bradleycorp.com. P.O. Box 309 Menomonee Falls, WI 53052 USA 215-1833-10 Rev. A; ECN 17-00-006B 800 BRADLEY (800 272 3539) © 2017 Bradley +1 262 251 6000 Page 1 of 2 11/21/2017 bradleycorp.com...
  • Page 2 Cleaning and Maintenance WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Cleaning and Maintenance for Terreon ® Material Description: Terreon is a densified solid surface material composed of bio based resin and is resistant to chemicals, stains, burns and impact.
  • Page 3 Cleaning and Maintenance WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Cleaning and Maintenance for Terrazzo Material Description: Terrazzo is a mosaic-looking natural stone and concrete material polished to a high gloss and sealed with clear polyurethane resin for long lasting beauty.
  • Page 4 Bowl and Pedestal Assembly TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com This document describes installation of washfountain bowl and pedestal only. Some optional equipment and accessories are shown for clarity. For activation, optional equipment and accessory installation, see installation documents included with those parts.
  • Page 5 Bowl and Pedestal Assembly TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Semi-Circular Washfountain Dimensions (Optional Equipment Shown) Model TDB3104 (Juvenile Height) Model TDB3104 54" Semi-circular - side view 54"...
  • Page 6 Bowl and Pedestal Assembly TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Semi-Circular Washfountain Dimensions Model WF3204 54" Semi-circular - side view 32-1/4" (819) 22-3/4" (577) 5-1/4" (133)

  • Page 7: Rough-In Specifications

    Bowl and Pedestal Assembly TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com (mm) Rough-In Specifications 1/2" Nominal Copper 1/2" Nominal Copper Tubing for Cold Supply Through Type A Drain Tubing Supplies Floor (optional), Stub Up 2-1/2"...
  • Page 8 Bowl and Pedestal Assembly TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Rough-In Specifications (mm) 1/2" Nominal Copper Tubing Type H Drain 13" R Top Access Supplies Through Wall 7-3/8"...

  • Page 9: Installing The Drain

    Bowl and Pedestal Assembly TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Installing the Drain All piping shown in dotted lines to be supplied by installer. Rough in supply and drain piping as required for your installation.
  • Page 10 Bowl and Pedestal Assembly TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Bowl/Pedestal Mounting and Assembly CAUTION! Bowl surface is very smooth. Approximate weight of bowl is 146 pounds (model TDB3104),...
  • Page 11 Bowl and Pedestal Assembly TDB3104, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Cleaning and Maintenance for Terreon ® Material Description: Terreon is a densified solid surface material composed of bio based resin and is resistant to chemicals, stains, burns and impact.
  • Page 12 Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Sectional Sprayhead Sectional Sprayhead (Circular Shown - S34-038, Semi-Circular Similar - S34-037) Connector 1/4" NPT x 1/4" Tube (169-974) 1/4"...
  • Page 13 Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Non-Sectional Sprayhead Repair kit does not include sprayhead grommet. Order as a separate item.
  • Page 14 Sprayheads WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Sprayhead Troubleshooting Problem Cause Solution Water splashes over Foreign matter has reduced the size of Clean the sprayhead: the rim of the bowl.

  • Page 15: Pre-Installation Information

    Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains TDB3103, TDB3104, WF3203, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Supplies Required by Installer • (4) 1/2" lag bolts, screws or other fasteners to anchor washfountain pedestal •...
  • Page 16 Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains TDB3103, TDB3104, WF3203, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Adaptive Infrared Assembly – A and O Drain Units without Tie Pipe Option...
  • Page 17 Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains TDB3103, TDB3104, WF3203, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Adaptive Infrared Assembly – A and O Units without Tie Pipe Option Unit with "O"...
  • Page 18 Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains TDB3103, TDB3104, WF3203, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Adaptive Infrared Assembly – B and H Units with Tie Pipe Option...
  • Page 19 Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains TDB3103, TDB3104, WF3203, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Adaptive Infrared Assembly – B and H Units with Tie Pipe Option Unit with "B"...
  • Page 20 Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains TDB3103, TDB3104, WF3203, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Connect Valve and Tubing for Non-Sectional Infrared Control Flush supply lines before making connections.
  • Page 21 Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains TDB3103, TDB3104, WF3203, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Connect Valve and Tubing for Non-Sectional Infrared Control (Cont...) Hang valve assembly on pedestal bracket.

  • Page 22: Make Electrical Connections

    Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains TDB3103, TDB3104, WF3203, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Make Electrical Connections WARNING! The Adaptive Infrared activation must be connected with a 12V DC plug in adaptor.
  • Page 23 Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains TDB3103, TDB3104, WF3203, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Turn on Water and Electricity, Test and Adjust Unit Turn on power to transformer. The solenoids Turn on water supply and check for leaks.
  • Page 24 Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains TDB3103, TDB3104, WF3203, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Infrared Module Components Item Qty. Part No. Description 219-033A Shell Assembly, Non-Sectional...

  • Page 25: Thermostatic Mixing Valve Troubleshooting

    Infrared Activation Modules - Non-Sectional Semi-Circular Washfountains TDB3103, TDB3104, WF3203, WF3204 P.O. Box 309 • Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY • 262 251 6000 • bradleycorp.com Thermostatic Mixing Valve Troubleshooting Before attempting to troubleshoot the valve or disassemble the components, check for the following conditions: •...
