Intended Use; General Safety Rules; Operational Safety Procedures - Rotabroach RD130C Manual

Issue 10

1) INTENDED USE

The intended use of this magnetic drill, is to drill holes in ferrous metals. The magnet is used to hold the
drill in place whilst the drill is functioning.
Any deviation from its intended use will not be covered by warranty.

2) GENERAL SAFETY RULES

Read all these instructions before attempting to operate the machine.
Remove from the pneumatic supply before carrying out any adjustment, servicing or maintenance.
Follow instructions for lubricating and changing accessories.
All repairs to be carried out by an authorized Rotabroach service facility.

3) OPERATIONAL SAFETY PROCEDURES

OPERATING INSTRUCTIONS
READ BEFORE USING THE MACHINE
1. Before connecting the pneumatic supply, ensure the motor switch is in the off position.
2. Locate the machine in its required position in relation to the work piece. Activate the magnet by means of
the ratchet handle at the rear. Ensure the magnet rod is fully screwed home.
3. Apply the cutting fluid to the reservoir, through the inducement slots in the arbor. It is then metered by the
pilot pin to the cutting edge. (Alternatively cutting oil can be applied directly to the cutting edge).

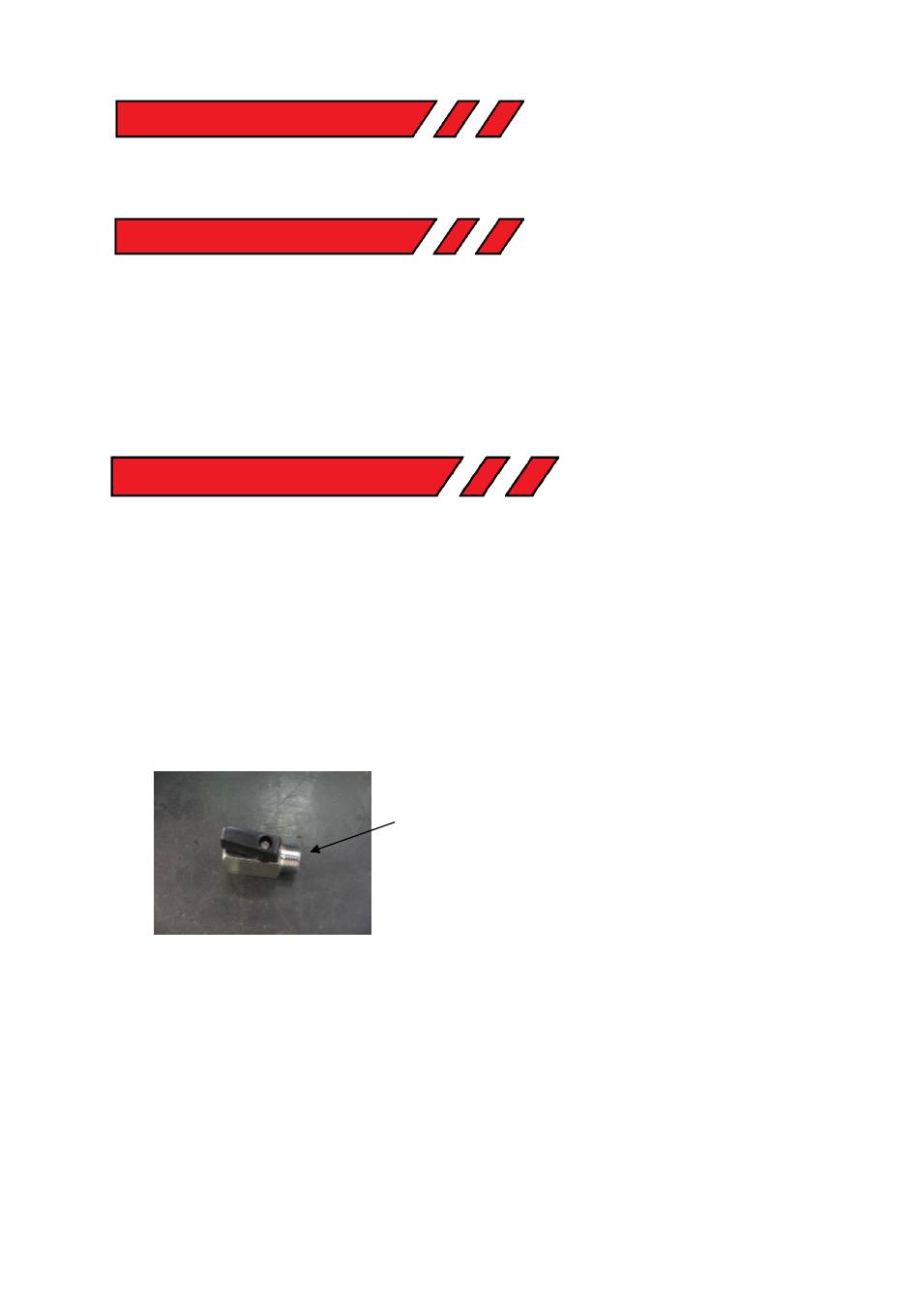

4. Start the motor by turning the rotary valve to the ON position (see below).
5. BEFORE operating, the machine MUST be securely restrained to a fixed independent feature (by
using safety strap RD4329, or other means), to reduce the potential free movement should the
magnet become detached from the work piece. Failure to do so may result in personal injury.
6. Keep other persons away. DO NOT let untrained persons, especially children, into the work area.
7. Avoid unintentional starting. Ensure the pneumatic supply is turned off when the machine is not in
operation.
8. Consider the toxicity of dust produced from the cutter and material being cut. Use approved
extraction and or Personal Protective Equipment (PPE).
9. Secure work where possible, use clamps or a vice to hold the work. It is safer than using your hand.
Original version
On
Position
- 5 -
Apr 19
